DBP2102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DBP2102

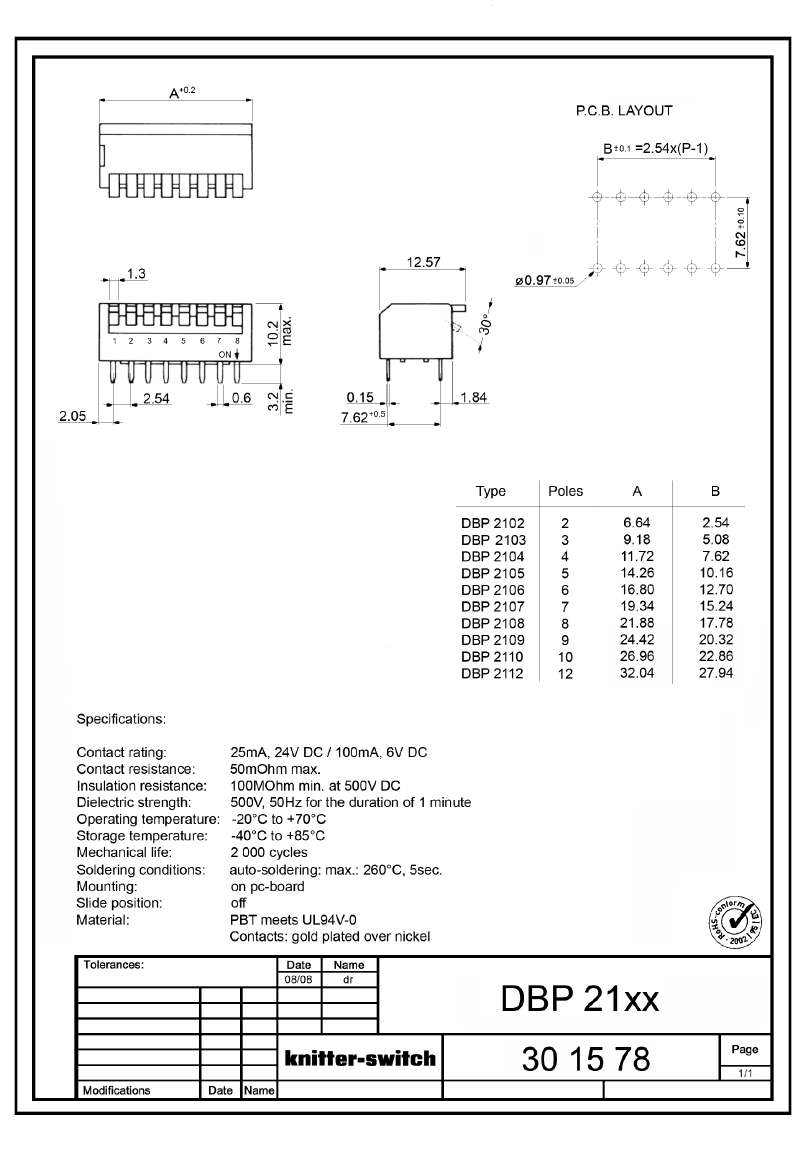

DBP2102: DescriptionPiano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size473KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DBP2102 Overview

Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight

DBP2102 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	30 deg
Actuator color	WHITE
Actuator type	PIANO
body height	10.2108 mm
Body length or diameter	6.6294 mm
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	500VAC V
End contact plating	GOLD OVER NICKEL
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBP
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	2
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	4
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	PIANO DIP SWITCH
Terminal length	0.126 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

DBP2102 Related Products

	DBP2102	DBP2112	DBP2103	DBP2105	DBP2106	DBP2107	DBP2109
Description	Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 12 Switches, SPST, Vertical, 0.025A, 24VDC, 24 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 3 Switches, SPST, Vertical, 0.025A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 5 Switches, SPST, Vertical, 0.025A, 24VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 6 Switches, SPST, Vertical, 0.025A, 24VDC, 12 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 7 Switches, SPST, Vertical, 0.025A, 24VDC, 14 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Piano Dip Switch, 9 Switches, SPST, Vertical, 0.025A, 24VDC, 18 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator angle	30 deg	30 deg	30 deg	30 deg	30 deg	30 deg	30 deg
Actuator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
Actuator type	PIANO	PIANO	PIANO	PIANO	PIANO	PIANO	PIANO
body height	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm	10.2108 mm
Body length or diameter	6.6294 mm	32.0294 mm	9.1694 mm	14.2494 mm	16.7894 mm	19.3294 mm	24.4094 mm
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	24 V	24 V	24 V	24 V	24 V	24 V	24 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBP	DBP	DBP	DBP	DBP	DBP	DBP
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of switching segments	2	12	3	5	6	7	9
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	4	24	6	10	12	14	18
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH	PIANO DIP SWITCH
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-
Maker	Knitter-switch	-	Knitter-switch	Knitter-switch	Knitter-switch	Knitter-switch	-
