SS-7188S-A-NF-1-K2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SS-7188S-A-NF-1-K2

SS-7188S-A-NF-1-K2: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

SS-7188S-A-NF-1-K2 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

SS-7188S-A-NF-1-K2 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	ALTERNATE SHIELD GROUND TAIL
Board mount options	COMPLIANT BOARDLOCK & PEGS
body width	0.55 inch
subject depth	0.85 inch
body length	0.635 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Installation option 1	LOCKING
Installation option 2	FLANGELESS
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

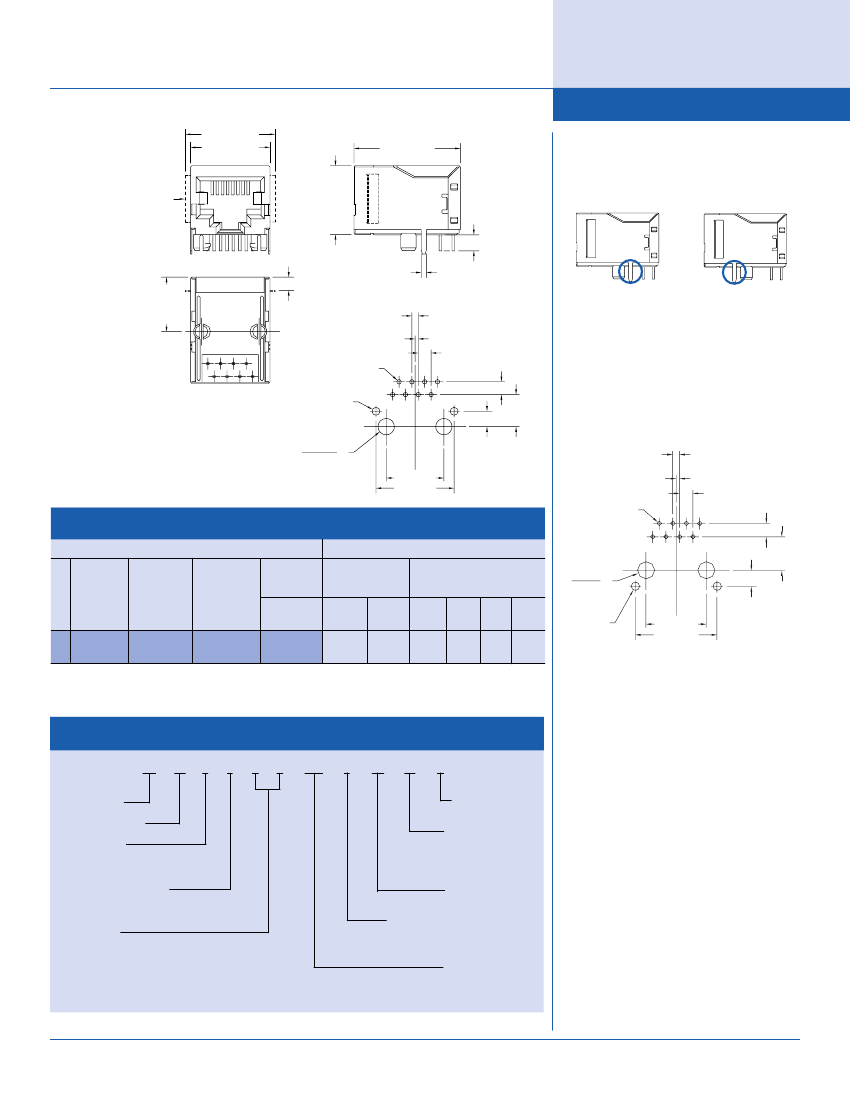

SS-7188S-A-NF-1-K2 Preview

High-Performance, PC-Mount, Modular Jacks

• Shielded • Right Angle

71 Series

Variations

.125 [3.17]±.010 [0.25]

FLANGE

OPTION

STEWART

PATENTED

.550 [13.97] MAX

Eight-Contact,

Eight-Position

Shielded

*.720 [18.92] MAX

*.635 [16.13] MAX

.850 [21.59] MAX

Shield Ground Tail Options

Standard

(Shown)

Alternate Style

(1)

.040 [1.02]

.425 [10.80]

.103 [2.62]

.050 [1.27] TYP

TOL NON-ACCUM

.100 [2.54]

.025 [0.64]

Ø.035 [0.89] (8)

.250 [6.35]

.100 [2.54] TYP

TOL NON-ACCUM

Ø.062 [1.57] (2)

Footprint for Alternate

Ground Tail Option

Eight-Contact,

Eight-Position

Shielded

(1)

Ø.035 [0.89] (8)

.128 [3.25]

(2)

.125 [3.18]

*.450 [11.43]

*.610 [15.49]

.120 [3.05]

.050 [1.27] TYP

TOL NON-ACCUM

.100 [2.54]

.025 [0.64]

.100 [2.54] TYP

TOL NON-ACCUM

Quick Reference Chart

Description

Series

Contacts

Inserted

Contact

Positions

Shielding

One Piece

(S-A)

RJ-45

Flange Options

FLS

Options

Keying Options

RMK

.128 [3.25]

(2)

.125 [3.18]

.120 [3.05]

Ø.062 [1.57] (2)

*.450 [11.43]

*.610 [15.49]

•

Typical applications.

Note: Configurations shown are the most common for typical applications.

For availability of other configurations not listed, consult Stewart.

How to Order

EXAMPLE:

SS –

Part prefix

Series number

Number of

contacts inserted

• 8

Number of contact

positions

• 8

Shielding

• S-A - One-piece shield

S – A – FLS – 1 – K1 – 50 – X

Other options

(consult Stewart)

Plating options

(microinches Au)

• Leave blank for 30

• 50

Keying options

• K1, K2, K3, RMK

Shield ground tail options

• Leave blank for standard

• 1 - Alternate style

Flange options

• FLS - Panel stop

• NF - No flange

All dimensions are in inches with metric values in brackets.

Information subject to change without notice. To obtain drawings and current specifications, contact Stewart Connector Systems, Inc.

11118 Susquehanna Trail South, Glen Rock, PA 17327-9199. Telephone: 717-235-7512. FAX: 717-235-7954. http://www.stewartconnector.com

.250 [6.35]

*Dimension is central about center line.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
