DFVS11-MLHZRFREQ100XB50: DescriptionHCMOS Output Clock Oscillator, 50MHz Min, 156MHz Max, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size36KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

DFVS11-MLHZRFREQ100XB50 Overview

HCMOS Output Clock Oscillator, 50MHz Min, 156MHz Max, CERAMIC, SMD, 6 PIN

DFVS11-MLHZRFREQ100XB50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Other features	ENABLE FUNCTION
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	50%
Manufacturer's serial number	DFVS11-MLHZR
Installation features	SURFACE MOUNT
Maximum operating frequency	156 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 PF
physical size	7.0mm x 5.0mm x 1.9mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

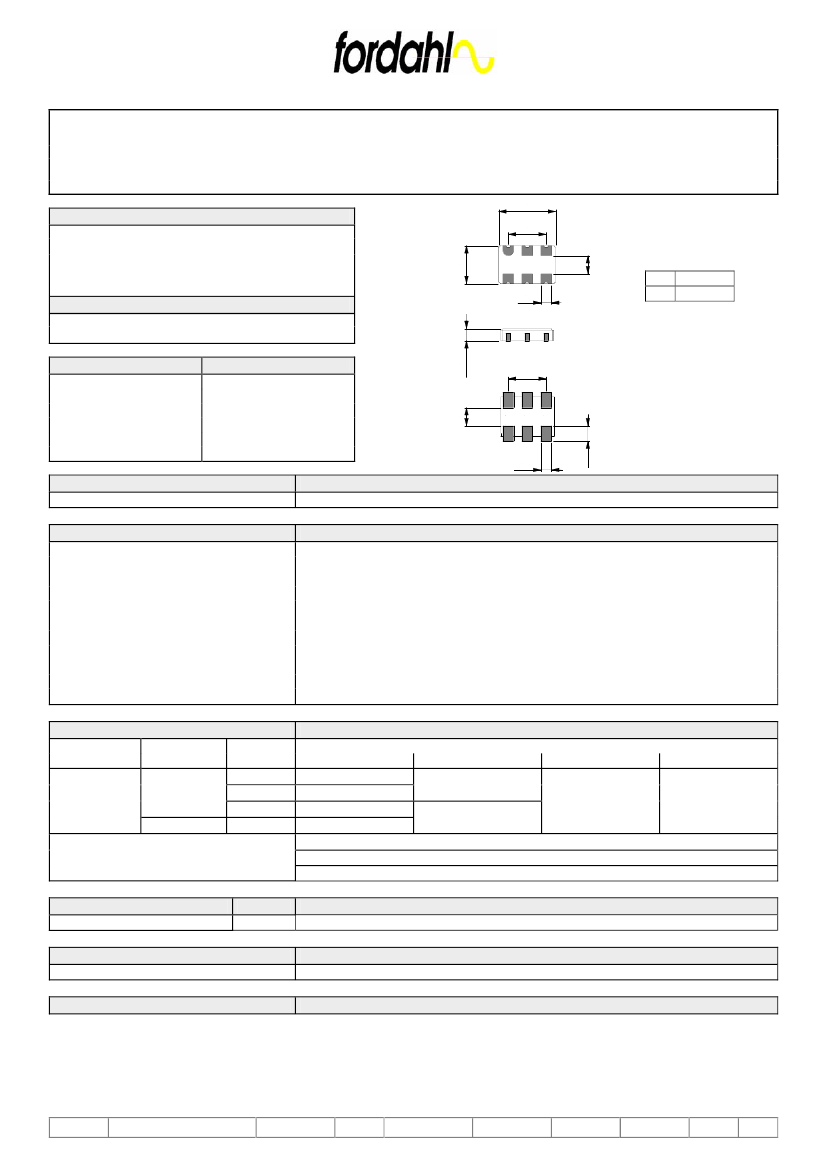

FREQUENCY CONTROL PRODUCTS

LOW COST CERAMIC SMD VCXO

DFV S11-MLHZ (3.3 V)

L±0.2

KEY FEATURES

5.0±0.2

5.08

50 to 156 MHz

Standard ceramic package

APPLICATIONS

Sonet/SDH

Function

V control

N/C or Enable

GND

Output

N/C

Vcc

2.4

1.4

L

H

7.0 mm

1.9 mm

DFV S11

1

2

3

4

5

6

H±0.2

5.08

2.4

6

1

5

2

4

3

1.4

TYPE

Frequency Range

DFV S11-MLHZ

50 to 156 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load (HCMOS)

duty cycle

rise/fall times (@ 15 pF load)

high/low levels

tri-state control (pin 2, pin 5 N/C)

start up

3.3 V ± 5 %

≤

50 mA

15 pF

40/60...60/40 % @ 50% level

10 to 90 % :

≤

10 ns

≥

2.7 V/

≤

0.4 V

high or open = enable, low = high Z

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

Type

temperature

range

model

code

80XB30

0 to 70° 80XB50

100XB50

-40 to 85°C 100XE50

overall stability

≤

± 30

≤

± 50

≤

± 50

≤

± 50

tolerances [ ppm ]

pulling range

≥

± 80

positive

≥

± 100

1.65 V ± 1.35 V

function

control voltage

DFV S11-LHZ

remarks

input impedance

≥

10 kΩ

includes 25°C at calibration, temperature, ageing, Vcc and load changes

ageing is 1

st

year at 25°C

CODE

R

OPTIONS

tight symmetry

45/55…55/45 %

ORDERING CODE

Example

type + option code + frequency + model code

DFV S11-MLHZ 155.52 MHz 80XB30

IMPORTANT NOTE

THIS PRODUCT IS DESIGNED FOR VOLUME APPLICATION ONLY

TYPE

DFV S11-MLHZ

REVISION

00

CHECKED

NE

DATE

2.0

27.11.2006

PAGE

xx
