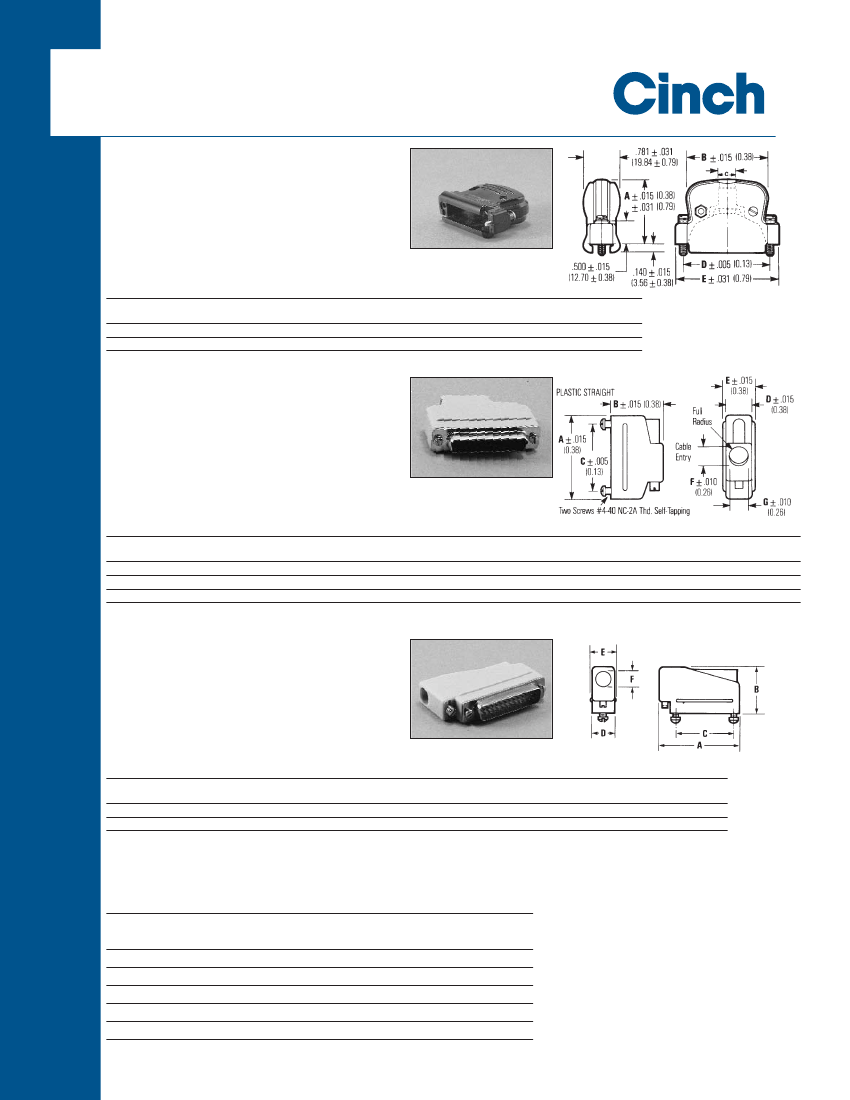

D-subminiature
Plastic Hoods
Phenolic Hood
Shell Material: Phenolic (black).
#4-40 Screws: Steel with nickel plating.
Shell
Size
A
B
A
Positions in
15
1.297
25
1.406
mm
32.94
35.71
in
1.219
1.797
B
mm
30.96
45.64
in
.266
.328
C
mm
6.76
8.33
in
1.312
1.852
D
mm
33.32
47.04
E
in
mm
1.641 41.68
2.203 55.96
All-Plastic Straight (180°) Hood
Shell Material: Nylon (gray).
#4-40 Screws: Steel with nickel plating.
Connector Not Included
Shell
Size
E
A
B
A
Positions in
9
1.218
15
1.546
25
2.093
mm
30.94
38.27
53.16
in
1.000
1.000
1.250
B
mm
25.40
25.40
31.75
in
.984
1.312
1.852
C
mm
23.72
33.32
47.04
in
.500
.500
.500
D
mm
12.70
12.70
12.70
E
in
mm
.562 14.27
.562 14.27
.562 14.27
F
in
.281
.360
.493
mm
7.14
9.14
12.52
in
.218
.360
.360
G
mm
7.14
9.14
9.14
All-Plastic Right-Angle (90°) Hood
Shell Material: Nylon (gray).
#4-40 Screws: Steel with nickel plating.
Connector Not Included
Shell
Size
A
B
A
Positions in
15
1.822
25
2.368
mm
46.28
60.15
in
1.000
1.250
B
mm
25.40
31.75
in
1.312
1.852
C
mm
33.32
47.04
in
.500
.500
D
mm
12.70
12.70
E
in
mm
.562 14.28
.562 14.28
F
in
.360
.360
mm
9.14
9.14
Ordering Information
Plastic Hoods
Shell
Size
E
A
B
C
D
Standard
Density
9
15
25
37
50
Phenolic
Hood
N/A
DA-51225-1
DB-51226-1A
N/A
N/A
Straight
Hood
DE-51218-1
DA-51210-1
DB-51212-1
N/A
N/A
Right
Angle
N/A
DA-51211-1
DB-51213-1
N/A
N/A
Call Toll Free: 1 (800) 323-9612
4-94
