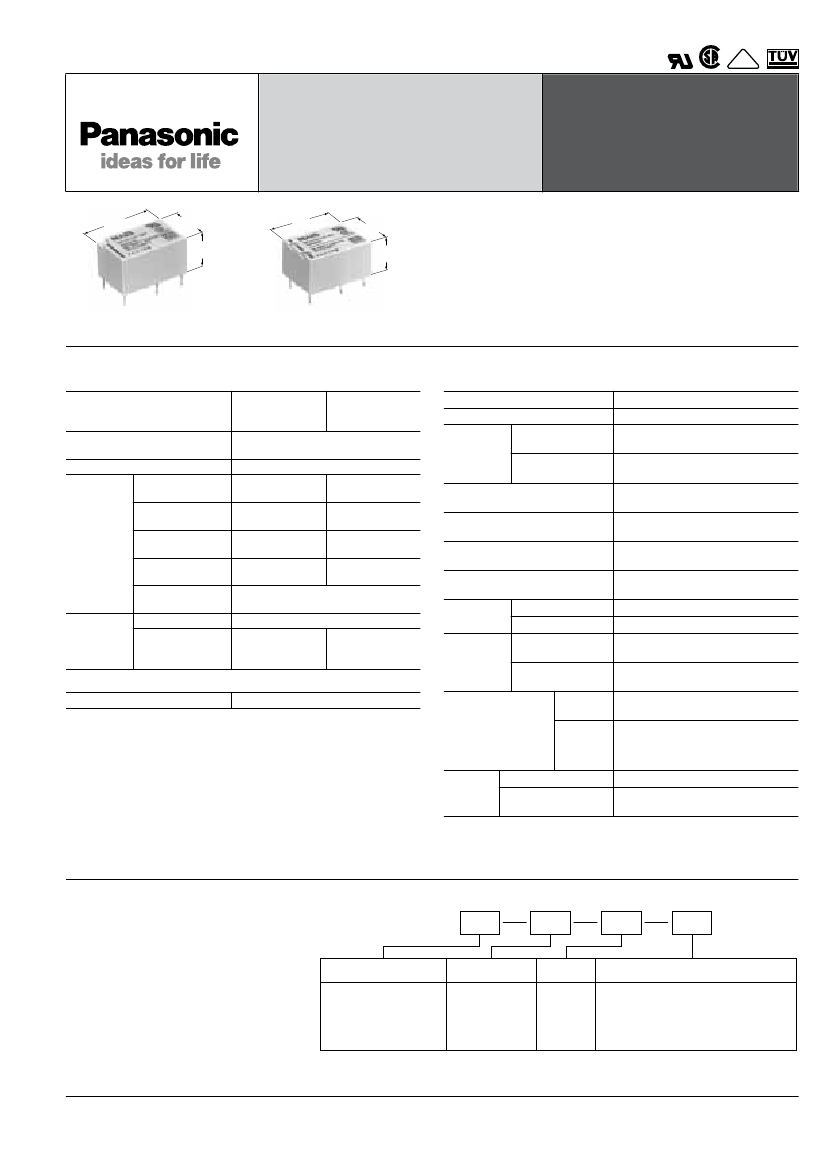

10 A MINIATURE POWER RELAY
File Size133KB,5 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet View All

DK1ANIL6VF Overview

10 A MINIATURE POWER RELAY

VDE
DK
10 A MINIATURE
POWER RELAY
DK RELAYS
20
.787
12.5
.492
10
.394
20
.787
15
.591
10
.394
FEATURES
• Large capacity in small size: 10 A 250 V AC (1a)
• High sensitivity: 200 mW nominal operating power
• High breakdown voltage 4,000 Vrms between contacts and
coil 1,000 Vrms between open contacts Meeting FCC Part 68
• Sealed construction
• Latching types available
1a
1a1b
mm
inch
SPECIFICATIONS
Contact
Arrangement
Initial contact resistance, max.
(By voltage drop 6 V DC 1A)
Contact material
Nominal
switching capacity
Max. switching
power
Rating
Max. switching
(resistive)
voltage
Max. switching
current
Min. switching
capacity
#1
Mechanical
Expected
life (min.
Electrical
operations) (resistive)
1 Form A
30 mΩ
Gold flash over silver alloy
10 A 250 V AC
8 A 250 V AC
10 A 30 V DC
8 A 30 V DC
300 W, 2,500 VA
250 V AC,
30 V DC
10 A
10 mA, 5 V DC
5×10
10
(10 A 250 V AC,
10 A 30 V DC)
5
7
Characteristics
2 Form A,
1 Form A
1 Form B
Max. operating speed
Initial insulation resistance*
1
Between open
Initial
contacts
breakdown
Between contacts
voltage*
2
and coil
Surge voltage between coil and
contact*
3
Operate time*
4
(at nominal voltage)
Release time (without diode)*
4
(at nominal voltage)
Temperature rise
(at nominal voltage)
Shock
resistance
Vibration
resistance
Functional*
5
Destructive*
6
Functional*
7
Destructive
Ambient
temp.
Humidity
20 cpm (at rated load)
Min. 1,000 mΩ (at 500 V DC)
1,000 Vrms
4,000 Vrms
Min. 10,000 V
Max. 10 ms (Approx. 5 ms)
Max. 8 ms (Approx. 3 ms)
Max. 40°C with nominal coil voltage
and at 10 A switching current
Min. 98 m/s
2
{10 G}
Min. 980 m/s
2
{100 G}
88.2 m/s
2
{9 G}, 10 to 55 Hz
at double amplitude of 1.5 mm
176.4 m/s
2
{18 G}, 10 to 55 Hz
at double amplitude of 3.0 mm
–40°C to +65°C
–40°F to +149°F
5 to 85% R.H.
Approx. 5.6 g
.20 oz
Approx. 6 g
.21 oz
240 W, 2,000 VA
250 V AC,
30 V DC
8A
10
5
(8 A 250 V AC,
8 A 30 V DC)
Coil
Nominal operating power
200 mW
#1 This value can change due to the switching frequency, environmental conditions,
and desired reliability level, therefore it is recommended to check this with the
actual load.
Remarks
* Specifications will vary with foreign standards certification ratings.
*
1
Measurement at same location as “Initial breakdown voltage” section
*
2
Detection current: 10 mA
*
3
Wave is standard shock voltage of
±1.2 ×
50µs according to JEC-212-1981
*
4
Excluding contact bounce time
*
5
Half-wave pulse of sine wave: 11ms; detection time: 10µs
*
6
Half-wave pulse of sine wave: 6ms
*
7
Detection time: 10µs
*
8
Refer to 6. Conditions for operation, transport and storage mentioned in
AMBIENT ENVIRONMENT
Conditions for
operation, transport
and storage*
8
(Not freezing and
condensing at low
temperature)
Unit
weight
1 Form A
1 Form A 1 Form B,
2 Form A
TYPICAL APPLICATIONS
• Switching power supply
• Power switching for various
OA equipment
• Control or driving relays for industrial
machines (robotics, numerical control
machines, etc.)
• Output relays for programmable logic
controllers, temperature controllers,
timers and so on.
• Home appliances
ORDERING INFORMATION
Ex. DK
1a
L2
12V
F
Contact arrangement
1a: 1 Form A
2a: 2 Form A
1a1b: 1 Form A 1 Form B
Operating function Coil voltage
Nil: Single side
stable
L2: 2 coil latching
3, 5, 6, 9,
12, 24V
Environmental support
• RoHS Directive conforming type (AgSnO
2
type)
F: 1a
Nil: 2a, 1a1b
• RoHS Directive non-conforming type (AgCdO type)
Nil: 1a
Notes: 1. Standard packing Carton: 50 pcs.; Case: 500 pcs.
UL/CSA, TÜV approved type is standard.
2. 1 coil latching type available.
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
