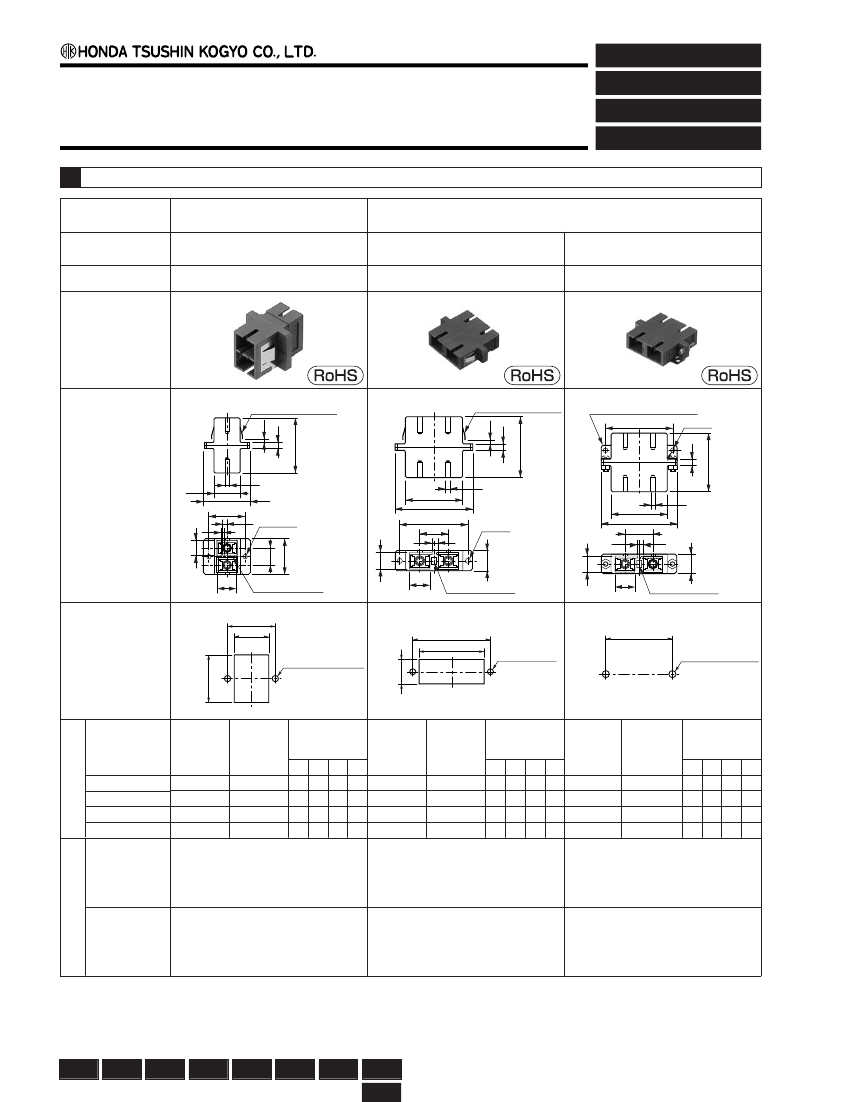

Optical fiber connector
SC-type Adaptor
LGC-300 series
SC-type
JIS C 5973 F04 type
Adaptor
SC-type Adaptor (SCH-2A type Adaptor/SCF-2A type Adaptor)
Type
of Adaptor
Mounting
Clamps
Housing
Vertical (H type) Duplex
Retaining-lock-bracket
for vertical board
Horizontal (F type) Duplex
Retaining-lock-bracket
for vertical board
Screw-fixing-bracket
for horizontal board
Plastic (Color : Blue)(See Note #2) Plastic (Color : Blue)(See Note #2) Plastic (Color : Blue)(See Note #2)
Overview
unit(mm)
Retaining-lock-bracket
for vertical board
1.8
3
27.4
unit(mm)
Retaining-lock-bracket
for vertical board
1.8
3
unit(mm)
Screw-fixing-bracket
for horizontal board
30.7
2-ø2.2
3
2
25.9
34.7
12.7
B
A
P
27.4
Drawing
2
12.8
22
18
B
7.4
A 2 - ø2.3
B
17.9
8.5
7.4
P
2
25.9
34.7
30.7
12.7
A
9.4
P
2-ø2.3
9
Type of Guide key
(See Note #1)
18
±0.1
+0.3
13.1
+0
9
Type of Guide key
(See Note #1)
7.4
9
Type of Guide key
(See Note #1)
unit(mm)
30.7
±0.1
+0
26.2
+0.3
2-ø2.4 or 2-M2
(for fixing with screw)
9.6
+0.3
+0
unit(mm)
30.7
±0.1
2-ø2.4 or 2-M2
(for fixing
with screw)
9.4
27.4
unit(mm)
+0
18.2
+0.3
Mounting
Hole Size
2-ø2.3 or 2-M2
(for fixing with screw)
t=1.6
t=1.6
A
(mm)
B
(mm)
Type of Guide Key
for Connectable
Horizontal Duplex Plugs
(See Note #3)
A
B
P
X
X
X
X
X
X
X
X
R
A
(mm)
B
(mm)
Type of Guide Key
for Connectable
Horizontal Duplex Plugs
(See Note #3)
A
B
P
X
X
X
X
X
X
X
X
R
Type of Guide Key
Type of Guide Key
B
A
for Connectable
(Width of
(Position of
Vertical Duplex Plugs
(See Note #3)
misinsertion
misinsertion
Prevention key) Prevention key)
A
B
P
R
A
B
P
R
3.00
1.30
2.15
2.15
2.95
2.95
1.25
4.65
X
X
X
X
X
0.85
1.85
1.85
X
1.85
0.85
1.85
0.85
X
0.85
1.85
1.85
0.85
1.85
0.85
1.85
0.85
X
X
X
X
0.85
Item Number
Phosphor-
Bronze-
Alignment-
Sleeve
Adaptor
Zirconia-
Alignment-
Sleeve
Adaptor
LGC-H2A301 [A,B,P,R] SH
LGC-F2A301 [A,B,P,R] SH
LGC-F2A321 [A,B,P,R] SH
LGC-H2A303 [A,B,P,R] SH
LGC-F2A303 [A,B,P,R] SH
LGC-F2A323 [A,B,P,R] SH
Note 1: (A,B,P and R) show the kind of guide keys, and one of these characters is inserted.
Note 2: For plastic housing other than blue ones, please contact us.
Note 3: X: Correspond
Through
hole
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
