D74014-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> D74014-01

D74014-01: DescriptionIC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size476KB，2 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D74014-01 Overview

IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

D74014-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Objectid	1452179210
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	64677917
Other features	EXTENDED
body width	0.4 inch
body length	0.7 inch
Contact to complete cooperation	TIN (157)
Contact completed and terminated	TIN (157)
Contact material	BE-CU
Contact style	DUAL PRONG
current rating	1.8 A
Device slot type	IC SOCKET
Type of equipment used	DIP14
Shell material	POLYESTER
JESD-609 code	e3
Manufacturer's serial number	D74014-01
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

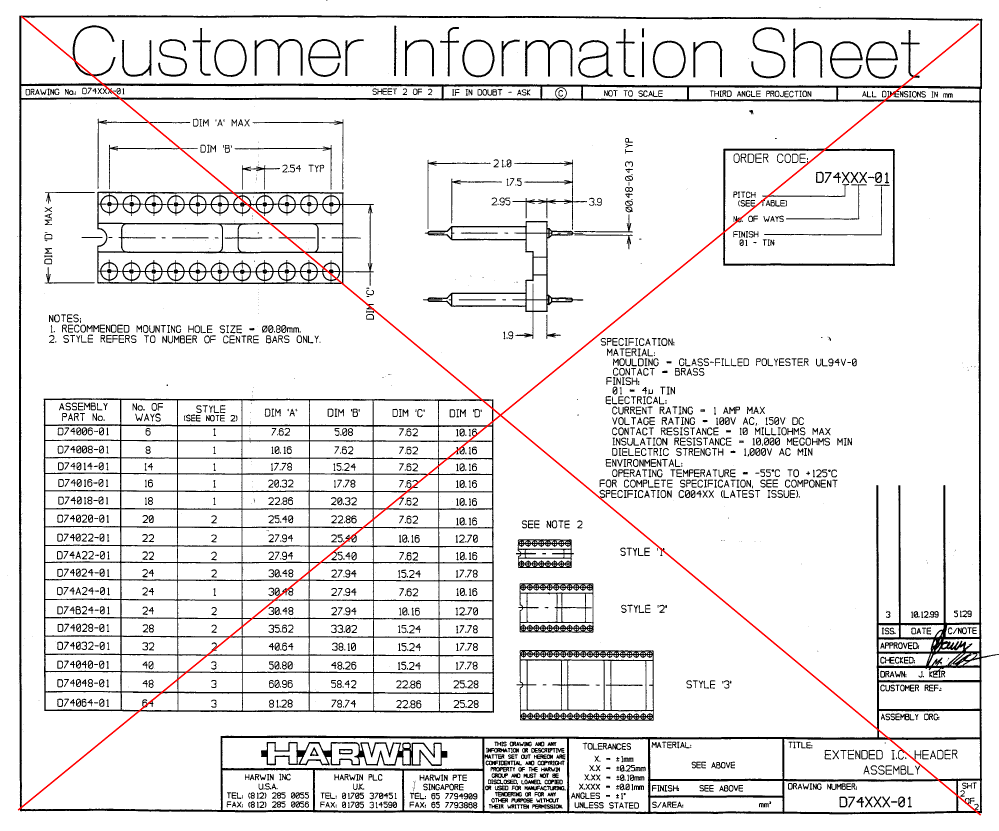

Preview

Download Datasheet

View All

OBSOLETE

D74014-01 Related Products

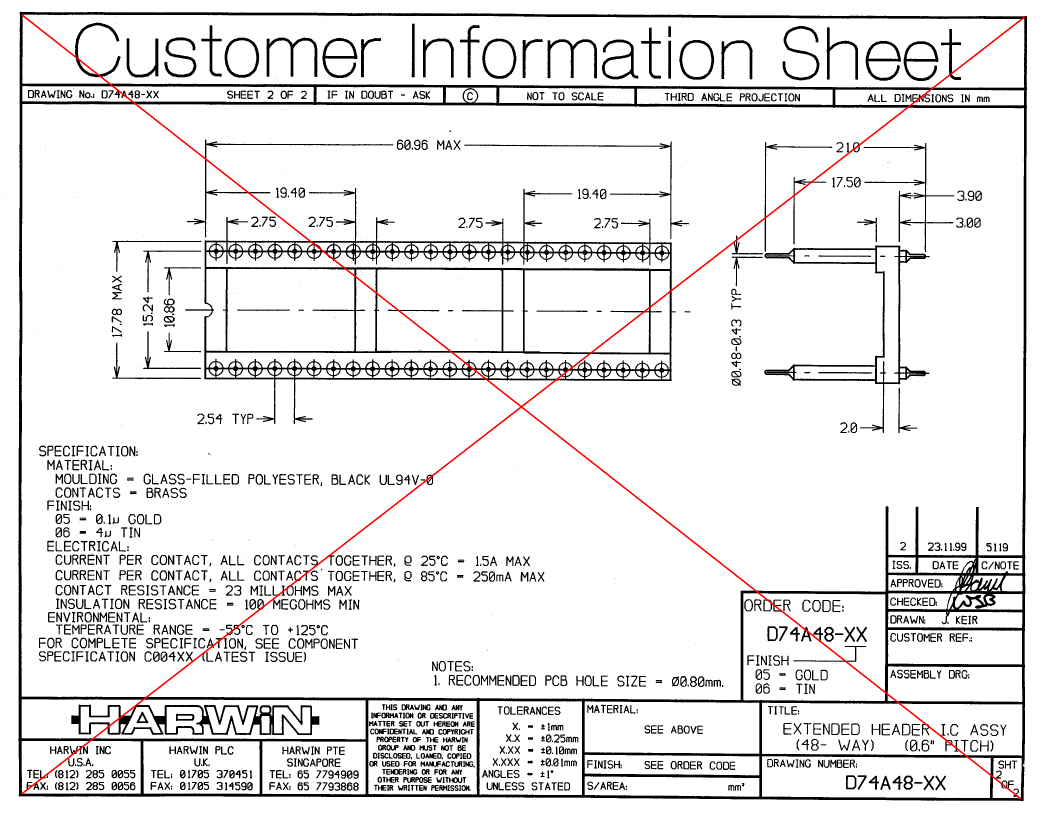

	D74014-01	D74008-01	D74048-01	D74040-01	D74A48-05	D74028-01	D74A24-01	D74024-01	D74016-01	D74020-01
Description	IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP48, 48 Contact(s)	IC Socket, DIP40, 40 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder	IC Socket, DIP48, 48 Contact(s)	IC Socket, DIP28, 28 Contact(s)	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder	IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	TIN (157)	TIN (157)	TIN (157)	TIN (157)	GOLD (4)	TIN (157)	TIN (157)	TIN (157)	TIN (157)	TIN (157)
Contact completed and terminated	TIN (157)	TIN (157)	TIN (157)	TIN (157)	GOLD (4)	TIN (157)	TIN (157)	TIN (157)	TIN (157)	TIN (157)
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP14	DIP8	DIP48	DIP40	DIP48	DIP28	DIP24	DIP24	DIP16	DIP20
Shell material	POLYESTER	POLYESTER	GLASS FILLED POLYESTER	POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e4	e3	e3	e3	e3	e3
Manufacturer's serial number	D74014-01	D74008-01	D7	D74040-01	D7	D7	D74A24-01	D74024-01	D74016-01	D74020-01
Number of contacts	14	8	48	40	48	28	24	24	16	20
Maker	Harwin	Harwin	-	-	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Other features	EXTENDED	EXTENDED	-	EXTENDED	-	-	EXTENDED	EXTENDED	EXTENDED	EXTENDED
body width	0.4 inch	0.4 inch	-	0.7 inch	-	-	0.4 inch	0.7 inch	0.4 inch	0.4 inch
body length	0.7 inch	0.4 inch	-	2 inch	-	-	1.2 inch	1.2 inch	0.8 inch	1 inch
Contact material	BE-CU	BE-CU	-	BE-CU	-	-	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	DUAL PRONG	DUAL PRONG	-	DUAL PRONG	-	-	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
current rating	1.8 A	1.8 A	-	1.8 A	-	-	1.8 A	1.8 A	1.8 A	1.8 A
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating temperature	125 °C	125 °C	-	125 °C	-	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	-	0.6 mm	-	-	0.3 mm	0.6 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER	-	-	SOLDER	SOLDER	SOLDER	SOLDER
