ZL40514LCF Overview

Interface Circuit, 4 X 4 MM, 0.90 MM HEIGHT, MO-220, QFN-24

ZL40514LCF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	QFN
package instruction	4 X 4 MM, 0.90 MM HEIGHT, MO-220, QFN-24
Contacts	24
Reach Compliance Code	unknown
Interface integrated circuit type	INTERFACE CIRCUIT
JESD-30 code	S-XQCC-N24
JESD-609 code	e0
length	4 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4 mm

Preview

Download Datasheet

View All

ZL40510/14

Dual Output DVD and CD

4 Channel Laser Diode Drivers

Data Sheet

Features

•

Single 5 V supply (±10%)

150 mA low-noise read channel with 100 x

current gain

Three 500 mA write channels with 240 x gain

Combined channel output 700 mA

Dual output for DVD/CD laser

Rise and fall times 1 ns typical

Oscillator, 500 MHz, 100 mA with external

resistor control of frequency and amplitude

Power Up/Down control

LVDS control signals

> 2 kV ESD

Low R

QFN package

Contact Zarlink for available Custom Gain and

Input Impedance options

Ordering Information

ZL40510LCE

ZL40510LCF

ZL40514LCE

ZL40514LCF

(tubes) 24 lead QFN

(tape and reel) 24 lead QFN

(tubes) 24 lead QFN

(tape and reel) 24 lead QFN

February 2005

-40°C to +85°C

Applications

•

DVD±RW/RAM

DVD±R

CD-RW

CD-R

Write optical drives

Laser Diode current switch

Supports double density DVD

PWR_UP

INR

IN2

GND

VCC_A

OUTA

IN3

IN4

GND

GND 16

OUTB

VCC_B

GND

GND_IN

EN2

/EN2

EN3

/EN3

EN4

/EN4

VCC_IN

OSCEN

RFA

RFB

9 10

RSA

RSB

SELA

11 12

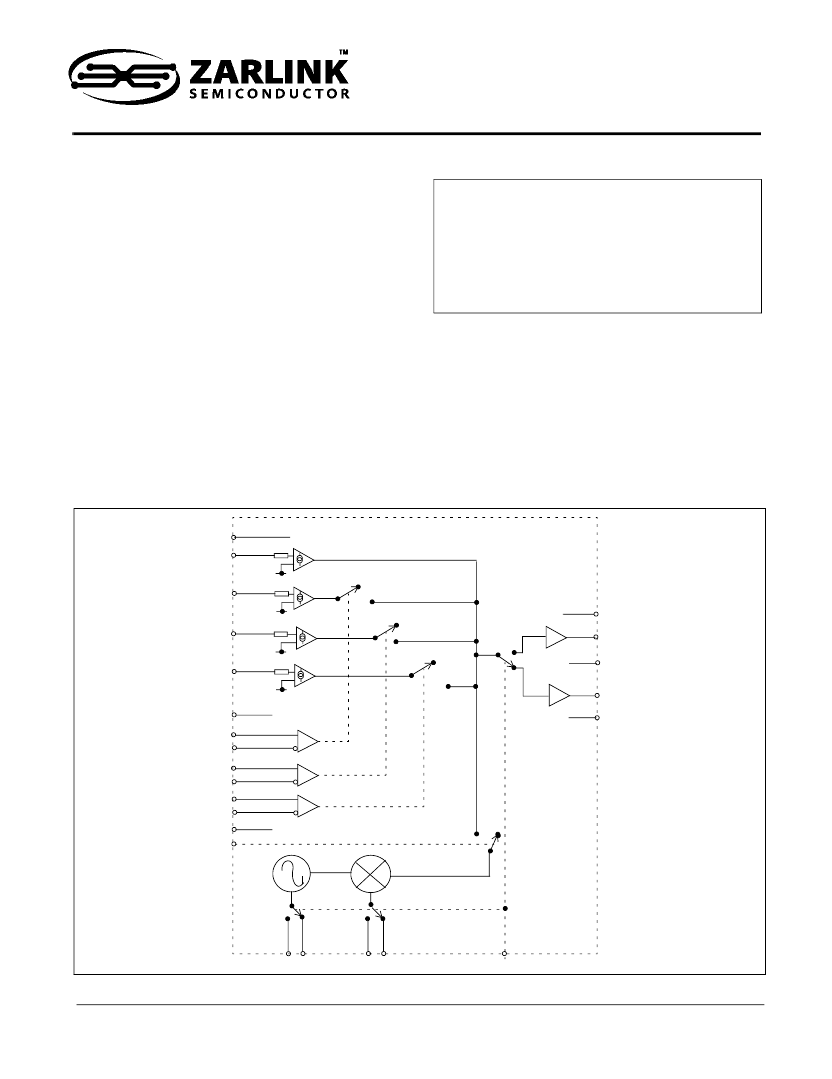

Figure 1 - Functional Block Diagram

Zarlink Semiconductor Inc.

Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.

ZL40510/14

Table of Contents

Data Sheet

1.0 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 Read and Write Channel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 On-chip RF Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Electrical and Optical Pulse Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.5 Specified Electrical Performance with 15 mm Interconnect and Zarlink ZLE40510/14 Evaluation Board. . 7

1.6 Application Layout Guide Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.7 ZLE40510/14 Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.0 Application Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.0 Evaluation Boards From Zarlink Semiconductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.0 Optical Pulse Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

5.0 Pin List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

6.0 Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.0 I/O Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

8.0 Timing Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

9.0 Timing Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

10.0 Example Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

10.1 Write Waveform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

10.2 Oscillator Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Zarlink Semiconductor Inc.

ZL40510/14

List of Figures

Data Sheet

Figure 1 - Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Figure 2 - Pinout of 4x4 mm 24 Pin QFN (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Figure 3 - Pulse Response Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Figure 4 - ZLE40510/14 Application Board Electrical Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 5 - Application Schematic Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 6 - Typical Optical Eye Diagram Response* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 7 - Write Channel 2, 3 and 4 IP/OP Transfer Characteristic/Temp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 8 - Read Channel IP/OP Transfer Characteristic/Temp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 9 - Write Channel 2, 3 or 4 IP/OP Transfer Characteristic/Vcc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 10 - Write Channel 2, 3 or 4 IP/OP Best Fit Line% Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 11 - Write Channel 2, 3 or 4

∆

lout% Variation with Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 12 - Write Channel 2, 3 or 4

∆

lout% Variation with Vcc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 13 - Oscillator Frequency/RF

Vcc = 5 V, Temp = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 14 - losc Out/Frequency/

RS = 1 K, 7.5 K, 11 K, Vcc = 5 V, Temp = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 15 - losc Amplitude mA pk-pk/RSA or RSB

Vcc = 5 V, Temp = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 16 - losc/Frequency

RS = 7.5 K, Vcc = 5 V, Temp = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 17 -

∆

Freq% Variation with Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 18 - Oscillator Noise Spectral Density

Vcc = 5 V, Temp = 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 19 - CMOS/LVTTL Input (PWR_UP, OSCEN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 20 - Oscillator Resistors (RF, RS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 21 - Read Current Input (INR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 22 - Output (OUTA, OUTB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 23 - Write Current Input (IN2, IN3, IN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 24 - LVDS Input (EN2, /EN2), (EN3, /EN3), (EN4, /EN4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 25 - Timing of Read or Write Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 26 - Output Waveform Showing Addition of Read and Write Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 27 - Example of Write Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 28 - Example of Oscillator Waveform Superimposed on the Read Waveform . . . . . . . . . . . . . . . . . . . . . . 28

Zarlink Semiconductor Inc.

ZL40510/14

1.0

1.1

Data Sheet

Application Notes

Read and Write Channel Operation

The read channel is activated by applying a 'High' signal to the PWR_UP pin. In this mode, the fast write channels

can be enabled by applying a 'High' signal to the respective pair of write enable pins (EN2, /EN2), (EN3, /EN3) or

(EN4, /EN4). The output currents of the four channels are summed together and output as a composite signal at

either OUTA (if SELA select is 'High') or OUTB (if SELA select is 'Low'). This provides the ability to drive two

different laser diodes with just one ZL40510/14.

Voltage control of the channel reference inputs (INR, IN2, IN3 and IN4) can be achieved quite easily using an

external resistor R

ref

in series with the reference channel input to convert a given reference potential V

ref

to an input

current, I

ref

where R

is the input impedance of the respective reference channel.

1.2

On-chip RF Oscillator

An on-chip RF oscillator is enabled if OSCEN = 'High', and its output signal is added to the appropriate current

output (OUTA, if SELA select is 'High', or OUTB, if SELA select is 'Low'). The oscillator amplitude is set by an

external resistor from RSA or RSB to GND. Its frequency is set by an external resistor RFA or RFB to GND. RSA

and RFA are selected when SELA is ‘High’.

The oscillator signal is summed with the programmed Write and Read levels before amplification to the output. The

oscillator signal has zero DC level and +I_pk to –I_pk signal swing. Consequently, if the programmed DC level from

the Write and Read Channels is less than the PK level programmed for the Oscillator, the combined signal will be

clipped on the negative cycle of the signal. This will increase the harmonic content of the output signal and reduce

the pk to pk amplitude output.

1.3

Thermal Considerations

Package thermal resistance is 40°C/W under the EIA/JESD51-3 compliant PCB test board condition.

Users should ensure that the junction temperature does not exceed 150°C. Thermal resistance from junction to

case and to ambient is very much dependent on how the IC is mounted onto the board, on the PCB layout and on

any heat extraction arrangements.

Power consumption and system ambient operating temperature limits should be noted and careful thermal gradient

calculations undertaken to ensure that the junction temperature never exceeds 150°C.
