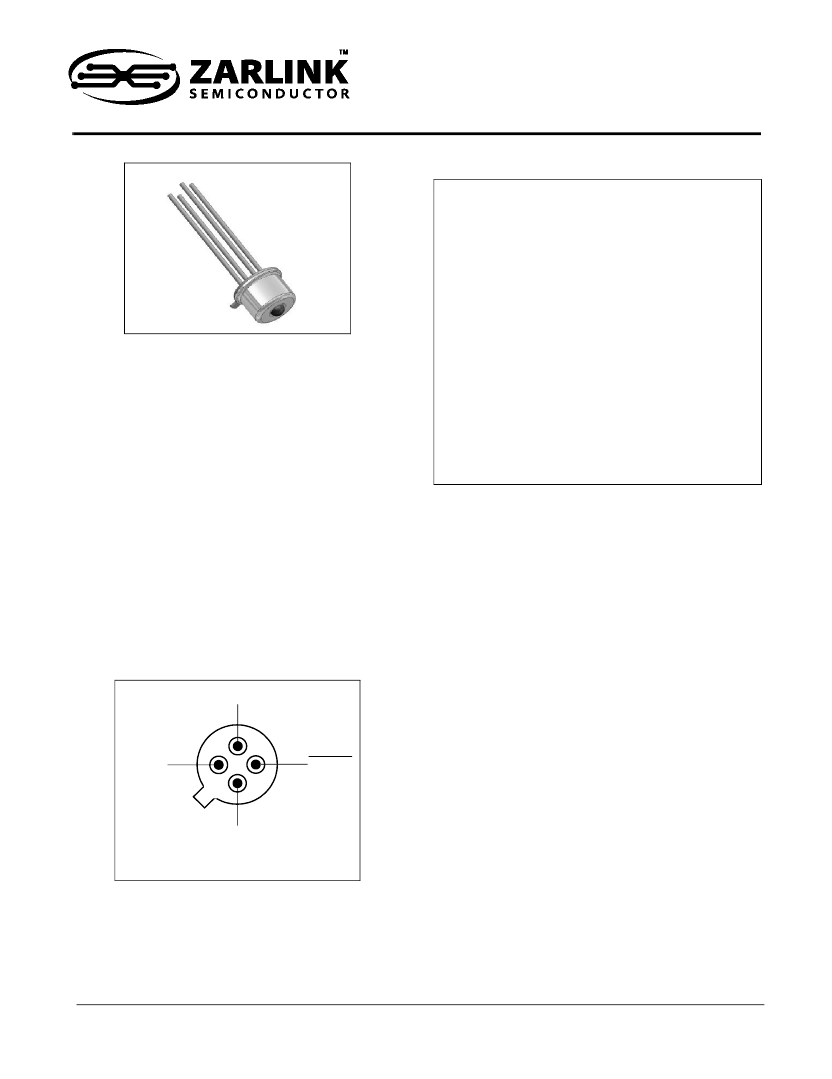

ZL60038
650-nm, 125 Mbps Pin Preamplifier
for Plastic Optical Fiber
Data Sheet
August 2005
Ordering Information
ZL60038TBDE, TO-46 with lens
The ZL60038 is also available assembled in
standard optical receptacles:
ZL60038TDDE,
ZL60038TEDE,
ZL60038TFDE,
ZL60038TGDE,
in ST receptacle
in SC receptacle
in FC receptacle
in SMA receptacle
Features
•
•
•
•
•
Data rates up to 250 Mbps
Large-area Si photodiode
TIA with AGC
Hermetically sealed package (MIL-STD 883)
Single 3.3 V power supply
In addition the ZL60038 can also be supplied in
customer-specific receptacles, on request
-40°C to +85°C
Applications
•
•
•
•
Plastic Optical Fiber (POF) based optical
communication links
IEEE Fast Ethernet
IEEE 1394b Firewire
Automotive, Industrial and Residential
Networking
V
CC
Description
The ZL60038 is a compact optical receiver designed
for 650-nm plastic optical fiber (POF) based optical
communication systems with data rates up to
250 Mbps.
The optical receiver is assembled in a single compact
TO-46 package and contains an optimized large-area
Si PIN photodiode in combination with a
transimpedance amplifier (TIA) with automatic gain
control (AGC). The receiver operates using a single
3.3 V power supply. It is designed for use with large-
core POF with core sizes up to 980
µm.
Such optical
fiber types are often found in Automotive, Industrial
and Residential networks.
Reliability assurance is based on Telcordia GR-468-
CORE and the part is compliant to the EU directive
2002/95/EC issued 27 January 2003 [RoHS].
Data Out
Data Out
Case
GND
Bottom View
Figure 1 - Pin-out Diagram
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2005, Zarlink Semiconductor Inc. All Rights Reserved.
ZL60038
Optical and Electrical Characteristics
Parameter
Sensitivity (BER 10
-12
)
Optical Saturation (BER 10
-12
)
Output Voltage amplitude,
differential (P
in
= -22 dBm)
Output Voltage amplitude,
differential (P
in
= -3 dBm)
Bandwidth (3 dB
el
)
Noise-Equivalent Power
Output Resistance (single-ended)
Power Supply Current
Power Dissipation
Focal distance (from top TO-lens)
Symbol
S
P
sat
∆V
OL
∆V
OH
f
C
NEP
R
O
I
DD
P
D
L
focal
3
200
500
160
-40
50
20
70
1.3
30
100
Min.
Typ.
-24
Max.
-22
Unit
dBm
dBm
mV, pp
mV, pp
MHz
dBm
Ω
mA
mW
mm
Data Sheet
Test condition
ER =
∞
Note 1
ER = 10dB, Note 1
Note 1,
See Figure 3
Note 1,
See Figure 3
P
in
= -10 dBm
Note 2
Test conditions:
Case Temperature, 25°C / Supply Voltage, 3.3V / R
L
=1000
Ω
differential / Plastic Optical Fiber:
980/1000
µm,
Step-index N.A. = 0.48 / Wavelength,
λ
= 650 nm
Note 1:
Note 2:
Measured using 2
7
-1 PRBS pattern at 125 Mbps
Measured with STM-1 filter on electrical output, i.e., 116 MHz.
Recommended Operating Conditions
Parameter
Supply Voltage
Output Differential Load (Note 3)
Operating Temperature
Signalling Rate (Note 4)
Note 3:
Note 4:
Symbol
V
CC
R
L
T
op
f
D
Min.
3.05
80
-40
Typ.
Max
3.55
Unit
V
Ω
°C
Mbps
1000
85
250
Typical value corresponds to the load presented by a following post-amplifier
Data pattern having maximum run-length and DC-balance shifts no greater than those found in a PRBS-7 pattern.
Absolute Maximum Ratings
Functional operation is not guaranteed under these conditions. Exceeding these ratings may cause permanent
damage. (Note limits need not necessarily be applied together).
Parameter
Supply Voltage
Storage Temperature
Soldering Temperature (Note 5)
Note 5:
2 mm from case for 10 seconds.
Symbol
V
CC
T
stg
T
sld
Min.
0
-55
Max.
4.5
125
260
Unit
V
°C
°C
2
Zarlink Semiconductor Inc.
ZL60038
Additional Information
1
0 ,9
Data Sheet
Relative Responsivity
0 ,8
0 ,7
0 ,6
0 ,5
0 ,4
0 ,3
0 ,2
0 ,1
0
400
500
600
700
800
900
1000
1100
W a v e le n g th (n m )
Figure 2 - Relative Responsivity vs. Wavelength
0,6
0,5
Amplitude [mV]
0,4
0,3
0,2
0,1
0
-25
-20
-15
-10
-5
0
Pin [dBm ]
Figure 3 - Differential Output Voltage Amplitude vs. Optical Input Power
3
Zarlink Semiconductor Inc.
ZL60038
Application Guidelines
ESD Handling
Data Sheet
The receiver is sensitive to electrostatic discharges. When handling the device, precaution for ESD sensitive
devices should be taken. These precautions include use of ESD protected work area with wrist straps, controlled
work benches, floors etc.
Host Board Layout Example
Included in the example of a Host Board Layout (Figure 4) are power supply decoupling capacitors. These are
recommended for optimal performance of the receiver. A filter is also included to minimise power supply noise.
A recommended post-amplifier is shown, namely Maxim MAX3969. Alternative post-amplifiers may also be used by
the customer.
Vcc
10uH
100nF
100pF
50 Ohm
Fiber
50 Ohm
100nF
Post-Amp
ZL60038
100nF
Figure 4 - Host Board Layout Example
4
Zarlink Semiconductor Inc.

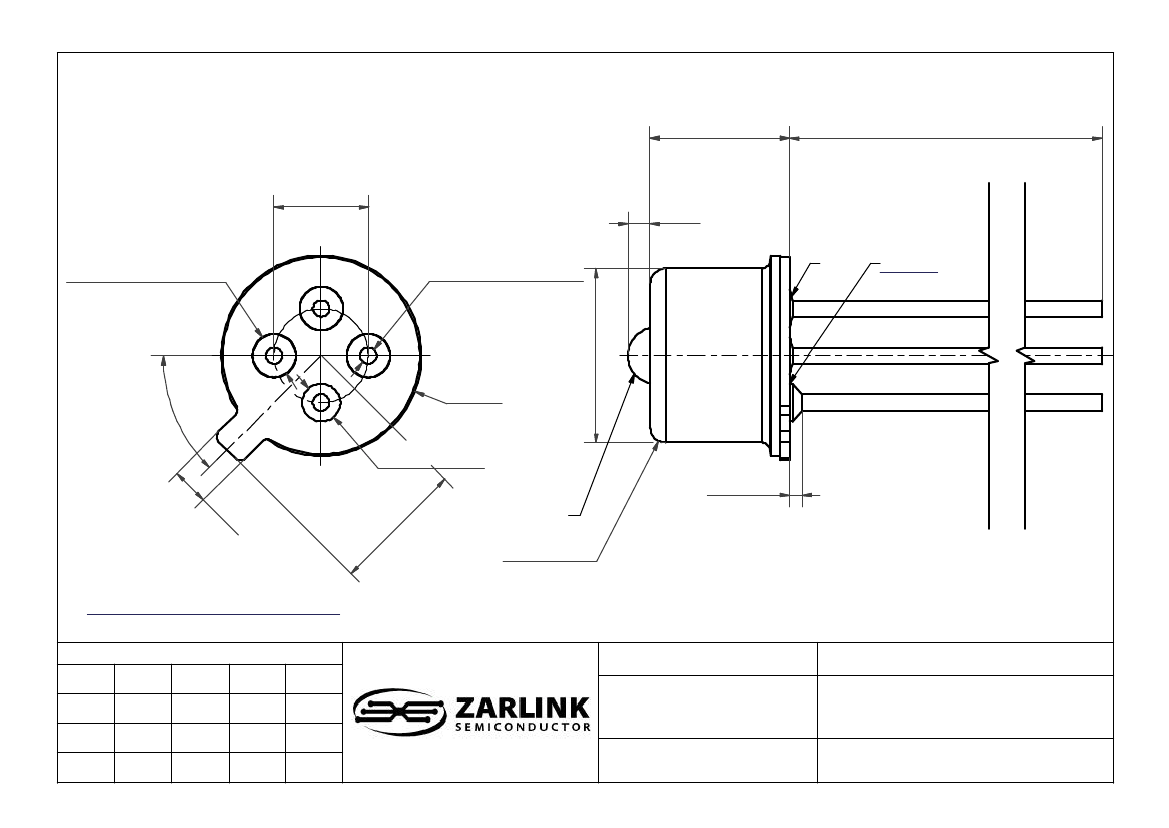

BOTTOM VIEW ( 10 : 1 )
3,8
SIDE VIEW
13,46
`
0,76
2,54
n
1,17 + 0,05 (3x)
-
n
0,45 + 0,04 (4x)
-
0,6
0,03
*
Brazed
0
R2,7
45°
n
1,02 max
n
4,7
3,
6
1,
02
0,33 max
Lens
n
1.5
`
0.05
R0,4 max
NOTES:-
1. All dimensions in mm.
2. General tol. ISO-2768-mK.
3. Coating: Case: Ni 1,5-2,5 µm.
Header: Ni min 0,5 µm / Au min 1,5 µm.
*
0,25 max glass overmould (3x)
© Zarlink Semiconductor 2002. All rights reserved.
Package code
Previous package codes
Drawing type
ISSUE
ACN
DATE
1
JS0 04078R1A
TB
Package drawing, TO-46 with lens
Title
22-MAR-03
APPRD. TD/BE
JS004078
