865715P064TXLF datasheet, PDF - EEWORLD Datasheet

865715P064TXLF: DescriptionD Subminiature Connector, 15 Contact(s), Male, IDC Terminal, LEAD FREE; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

865715P064TXLF Overview

D Subminiature Connector, 15 Contact(s), Male, IDC Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	865715P064TXLF
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	IDC
Total number of contacts	15

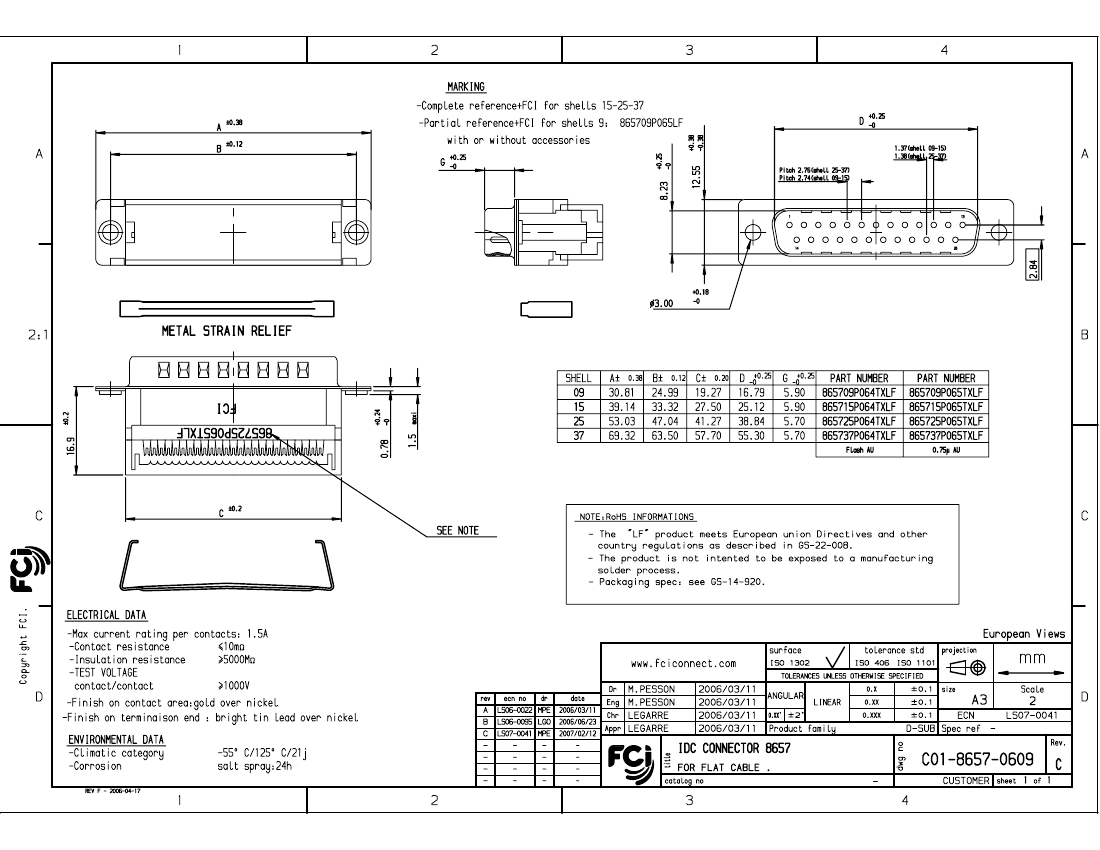

PDM: Rev:C

STATUS:

Released

Printed: Feb 27, 2007

.

	865715P064TXLF	865725P064TXLF	865709P064TXLF	865737P064TXLF
Description	D Subminiature Connector, 15 Contact(s), Male, IDC Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, IDC Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Male, IDC Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, IDC Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	865715P064TXLF	865725P064TXLF	865709P064TXLF	865737P064TXLF
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	3/B	1/E	4/C
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	15	25	9	37
