VC73E-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> VC73E-FREQ

VC73E-FREQ: DescriptionACMOS Output Clock Oscillator, 30.01MHz Min, 160MHz Max, DIP-14/4; CategoryPassive components oscillator; File Size27KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/

Download Datasheet Parametric Compare View All

VC73E-FREQ Overview

ACMOS Output Clock Oscillator, 30.01MHz Min, 160MHz Max, DIP-14/4

VC73E-FREQ Parametric

Parameter Name	Attribute value
Maker	Raltron
Reach Compliance Code	compliant
Other features	3.3 V NOMINAL VOLTAGE IS POSSIBLE; ENABLE/DISABLE FUNCTION
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	75 ppm
frequency stability	25%
linearity	10%
Manufacturer's serial number	VC73
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	30.01 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	ACMOS
Output load	30 pF
physical size	20.8mm x 13.2mm x 7.62mm
longest rise time	3 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

VC73E-FREQ Preview

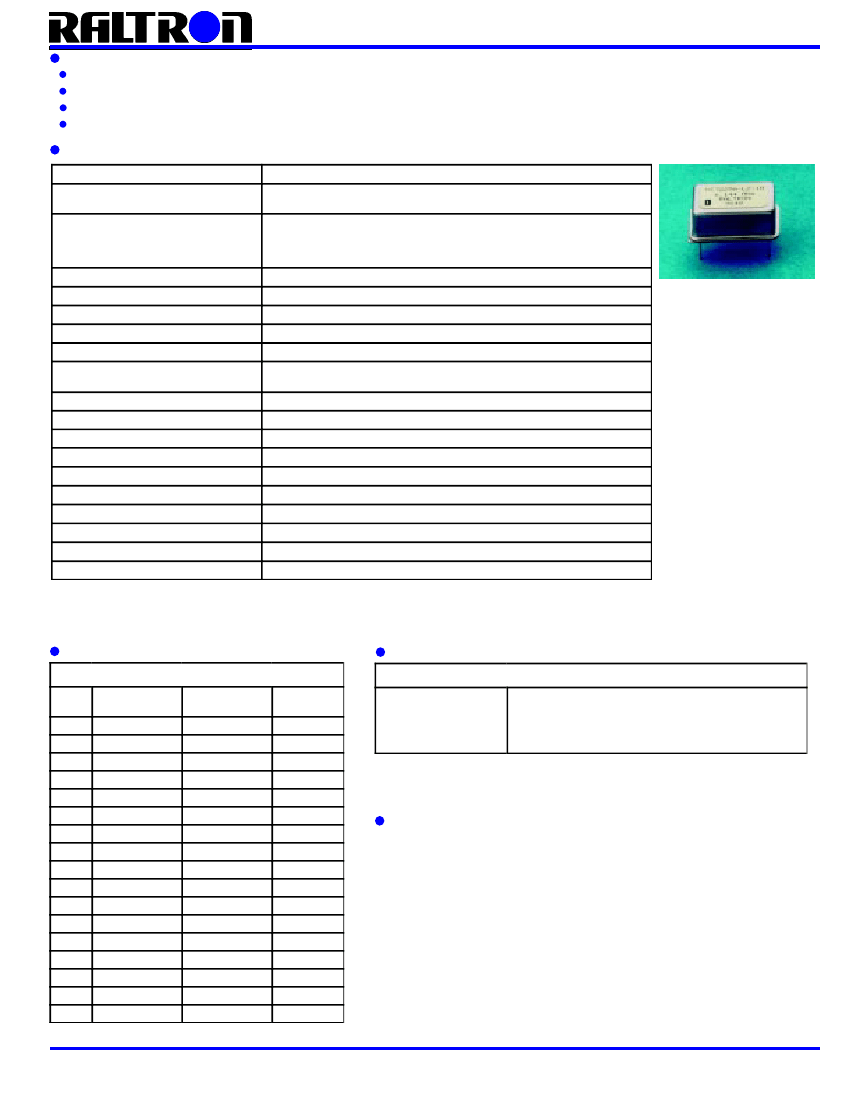

VOLTAGE CONTROLLED CRYSTAL OSCILLATORS

FEATURES

STANDARD 14 PIN DIP PACKAGE

TOLERANCE AND STABILITY TO

10 PPM

CUSTOM SPECIFICATIONS

WIDE FREQUENCY RANGE

SPECIFICATIONS

FREQUENCY RANGE

FREQUENCY STABILITY OVER

TEMPERATURE RANGE (REF. TO 25°C)

30.01 MHz TO 160.00 MHz

±10 PPM TO ±50 PPM MAX AT VC = 2.5 VDC AND VCC = +5.0 VDC (SEE TABLE 1)

0°C TO +50°C

0°C TO +70°C

-40°C TO +85°C

AT VC = +2.5 VDC AND VCC = +5.0VDC AND STANDARD LOAD

-40°C TO +85°C

ACMOS (SEE TABLE 2)

30 pF

+5 VDC ±5% (3.3 VDC AVAILABLE)

50 mA MAX AT VC = +2.5 VDC, VCC = +5.0 VDC AND STANDARD LOAD AT 25°C

±50 PPM TO ±100 PPM MIN OVER CONTROL VOLTAGE RANGE

AT VCC = +5.0 V AND STANDARD LOAD AT 25°C (SEE TABLE 1)

+2.5 VDC ±0.5 VDC

+0.5 TO +4.5 VDC

±10% MAX

NORMAL: 40/60% TIGHT: 45/55% (OPTION)

POSITIVE

10 KHz (-3dB) MIN

47 KOHM MIN

-0.5 TO +7.0 VDC FOR VCC AND VC (NON DESTRUCTIVE)

SEE GRAPH FOR PHASE NOISE CHARACTERISTICS

SERIES VC73 ACMOS

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

OUTPUT WAVEFORM

LOAD

SUPPLY VOLTAGE

SUPPLY CURRENT

ABSOLUTE PULLING RANGE (APR)

NOMINAL CONTROL VOLTAGE (VC)

SETTABILITY AT Vfo †

CONTROL VOLTAGE RANGE

LINEARITY

SYMMETRY

SLOPE

MODULATION FREQUENCY BANDWIDTH

INPUT IMPEDANCE

ABSOLUTE VOLTAGE RANGE

PHASE NOISE (TYPICAL)

† Vfo IS THE CONTROL VOLTAGE AT WHICH THE OUTPUT FREQUENCY IS EQUAL TO THE NOMINAL FREQUENCY (Fo)

AT +25 °C ±1 °C

ABSOLUTE PULLING RANGE (APR) IS THE MINIMUM GUARANTEED FREQUENCY SHIFT FROM Fo OVER VARIATIONS IN

TEMPERATURE, AGING, POWER SUPPLY, AND LOAD.

TEMPERATURE RANGE DESIGNATIONS

TABLE 1

CODE

TEMPERATURE

RANGE

0°C TO +50°C

0°C TO +70°C

-40°C TO +85°C

TEMPERATURE

STABILITY

± 10 PPM

± 15 PPM

± 20 PPM

± 25 PPM

± 35 PPM

± 10 PPM

± 20 PPM

± 25 PPM

± 35 PPM

± 50 PPM

± 20 PPM

± 30 PPM

± 25 PPM

± 35 PPM

± 50 PPM

APR (MIN)

± 50 PPM

± 75 PPM

± 100PPM

± 50 PPM

± 75 PPM

± 100 PPM

± 50 PPM

± 75 PPM

± 100 PPM

OUTPUT AND LOAD CHARACTERISTICS

TABLE 2

ACMOS TO DRIVE 3 GATES AT TTL LEVELS

SYMMETRY: 40/60% TO 60/40% AT 50% LEVEL

VOH: +2.9 VDC MIN

VOL: +0.33 VDC MAX

RISE/FALL TIME: 3 ns WITH 30 pF LOAD (20% TO 80%)

ACMOS - 30 pF (VC73)

AVAILABLE OPTIONS

ENABLE / DISABLE WITH 5 PIN BASE

5.08 mm / .200 in MAXIMUM HEIGHT WITH OPEN BLANK DESIGN

CONSULT RALTRON FOR SPECIFICATIONS

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

VOLTAGE CONTROLLED CRYSTAL OSCILLATORS

SERIES VC73 ACMOS

OUTLINE DRAWING

Scale none Dimension in

inch

PHASE NOISE CHARACTERISTICS

MARKING

AREA

7.62 ± 0.5

.300 ± .020

PIN 1 LOCATION

-10

-20

-30

-40

-50

-55

-60

-70

-80

-90

-100

10 Hz

dBc

-90

-86

-95

0.86

.034

100 Hz

1 KHz

Offset from carrier

10 KHz

100 KHz

0.45 DIA

.018 DIA

6.3 ± 0.5

.250 ± .020

PIN 1

15.24

.600

PIN 7

PIN CONNECTION

VC73

FUNCTION

V CONT

GROUND

OUTPUT

VCC

.520 ± .020

4.58

13.2 ± 0.5

.180

7.62

.300

PIN 14

12.2

.480

20.8 MAX

.820 MAX

PIN 8

AVAILABLE IN GULL WING CONFIGURATION

PART NUMBERING SYSTEM

SERIES

OUTPUT

(TABLE 2)

ACMOS

CODE

(TABLE 1)

VC7

A THROUGH Q

IN MHz

FREQUENCY

EXAMPLE:

VC73J-155M52

ACMOS OUTPUT, ±25 PPM OVER 0° C TO +70° C

MINIMUM APR ±50 PPM

155.52 MHz

MECHANICAL CHARACTERISTICS

MECHANICAL SHOCK IEC-68-2-27 TEST EA, 30g FOR 18 ms HALFSINE

VIBRATION

THERMAL SHOCK

SEAL

SOLDERING HEAT

MECHANICAL

IEC 68-2-6 (TEST FC) 0.35 mm, 5g, 10-2 kHz, 6 CYCLES AXIS

IEC 68-2-14 (TEST NA), 30 min IN EACH TEMPERATURE EXTREME

IEC 68-2-17 (TEST QC)

IEC 68-2-20A

14 PIN DIP, LEADED, PER OUTLINE DRAWING

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
