SMAJ22C-TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMAJ22C-TP

SMAJ22C-TP: DescriptionTrans Voltage Suppressor Diode, 400W, 22V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size273KB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

SMAJ22C-TP Overview

Trans Voltage Suppressor Diode, 400W, 22V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN

SMAJ22C-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-214AC
package instruction	SMA, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakdown voltage	26.9 V
Minimum breakdown voltage	24.4 V
Breakdown voltage nominal value	25.65 V
Maximum clamping voltage	35.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	22 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SMAJ5.0

THRU

SMAJ440CA

400 Watt

Transient Voltage

Suppressors

5.0 to 440 Volts

DO-214AC

(SMA)( LEAD FRAME)

Features

•

Halogen

free available upon request by adding suffix "-HF"

For Surface Mount Applications

Unidirectional And Bidirectional

Low Inductance

High Temp Soldering: 260°C for 10 Seconds At Terminals

For Bidirectional Devices Add “C” To The Suffix

The Part

Number: i.e.SMAJ5.0CA for 5% Tolerance

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

UL Recognized File # E331408

•

0HFKDQLFDO'DWD

•

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Polarity: Indicated by cathode band except bi-directional types

0D[LPXP5DWLQJ

•

Operating Temperature: -55°C to +175°C

Storage Temperature: -55°C to +175°C

Typical Thermal Resistance: 100 /W Junction to Ambient

Peak Pulse Current on

10/1000

Peak Pulse Power Dissipation

Steady State Power Dissipation

PPM

M(AV)

See Table 1 Note 2

DIMENSIONS

Min 400 W

1.5 W

Note 2, 6

Note 2, 5

DIM

Note:

High Temperature Solder Exemptions Applied, see EU Directive Annex 7.

INCHES

MIN

.157

.098

.006

.030

.188

.078

.050

.002

MAX

.181

.114

.012

.060

.208

.096

.064

.008

MIN

4.00

2.50

0.152

0.76

4.80

2.00

1.27

0.051

MAX

4.60

2.90

0.305

..52

5.28

2.44

1.63

0.203

NOTE

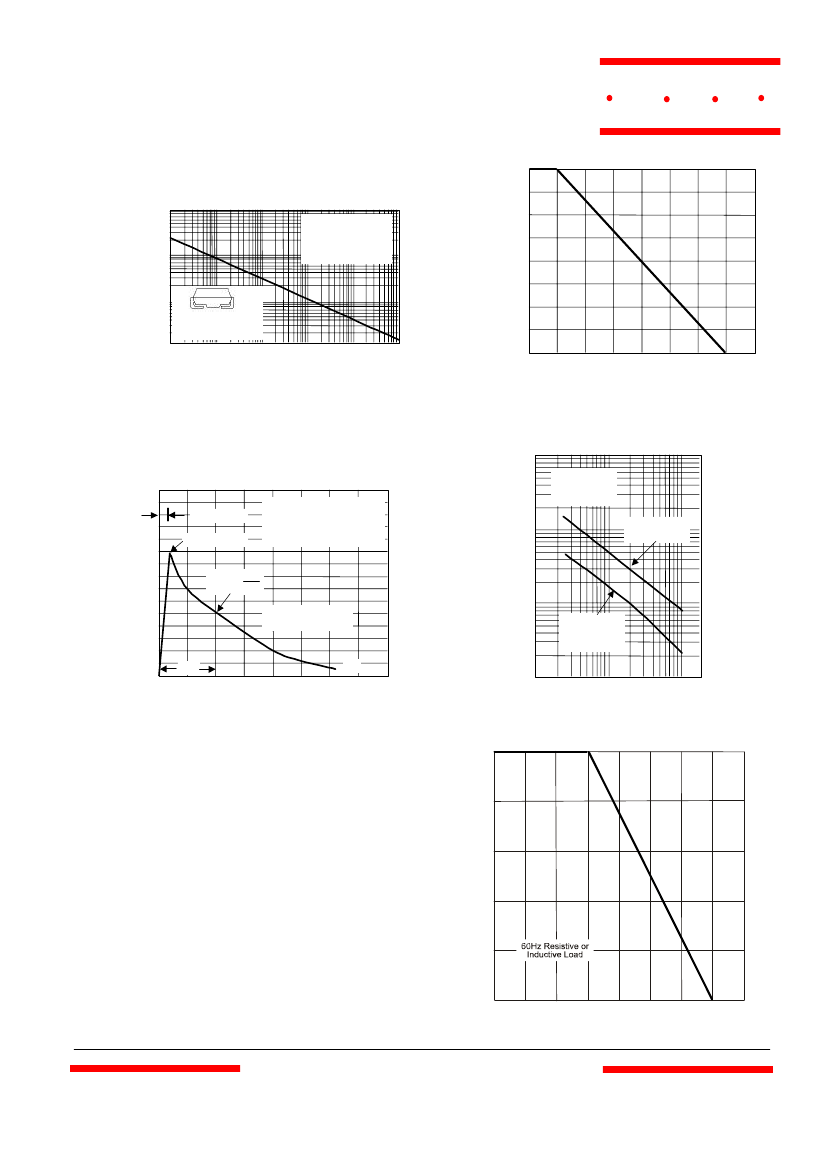

2. Non-repetitive current pulse, per Fig.3 and derated above

=25 per Fig.2.

3. Mounted on 5.0mm

copper pads to each terminal.

4. 8.3ms, single half sine wave duty cycle = 4 pulses per

Minutes maximum.

5. Lead temperature at T

= 75 .

6. Peak pulse power waveform is 10/1000 .

SUGGESTED SOLDER

PAD LAYOUT

0.090 ”

0.085 ”

0.070"

www.mccsemi.com

1 of 4

Revision:

2013/10/22
