TFAW20TTEB201K/221M datasheet, PDF

Datasheet> All Categories > Passive components> RC network> TFAW20TTEB201K/221M

TFAW20TTEB201K/221M: DescriptionRC Network, T-Filter, 1.2W, 200ohm, 20V, 0.00022uF, Surface Mount, 20 Pins, ROHS COMPLIANT; CategoryPassive components RC network; File Size112KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

TFAW20TTEB201K/221M Overview

RC Network, T-Filter, 1.2W, 200ohm, 20V, 0.00022uF, Surface Mount, 20 Pins, ROHS COMPLIANT

TFAW20TTEB201K/221M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
capacitance	0.00022 µF
Capacitor Negative Tolerance	20%
Capacitor positive tolerance	20%
Capacitor temperature coefficient	200%
The first element resistor	200 Ω
JESD-609 code	e3
length	12.7 mm
Manufacturer's serial number	TFA
Installation features	SURFACE MOUNT
Network Type	T-FILTER
Number of capacitor elements	8
Number of functions	1
Number of RC components	8
Number of resistor elements	16
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
Rated (DC) voltage (URdc)	20 V
Rated power dissipation(P)	1.2 W
Rated temperature	70 °C
Resistor tolerance	10%
Resistor temperature coefficient	200 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
Maximum seat height	2.4 mm
surface mount	YES
technology	THIN FILM
Terminal surface	Matte Tin (Sn)
Terminal pitch	1.27 mm
Terminal shape	GULL WING
width	10.36 mm

Preview

Download Datasheet

View All

TF(X)

resistors

r/c filter networks

features

•

Thin film construction

Surface mount package

Stable resistor technology

High component density

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

Signal termination

Signal conditioning

Low pass filter

T filter

applications

•

dimensions and construction

Bonding

Wire

Lead

Die

Pad

Molded Wafer

Resin

Q20

Q24

W20

1 watt

1.2

watts

Package Total

Code Power

Pins

Dimensions

inches

(mm)

L ±0.2 W ±0.2 w ±0.2 H ±0.2 p ±0.1

.341

(8.66)

.341

(8.66)

.500

(12.7)

.236

(5.99)

.236

(5.99)

.408

(10.36)

.150

(3.81)

.150

(3.81)

.300

(7.62)

.063

(1.60)

.063

(1.60)

.084

(2.40)

.025

(0.635)

.025

(0.635)

.050

(1.27)

a ±0.1

.010

(0.25)

.010

(0.25)

.016

(0.41)

c ±0.1

.026

(0.66)

.026

(0.66)

.026

(0.66)

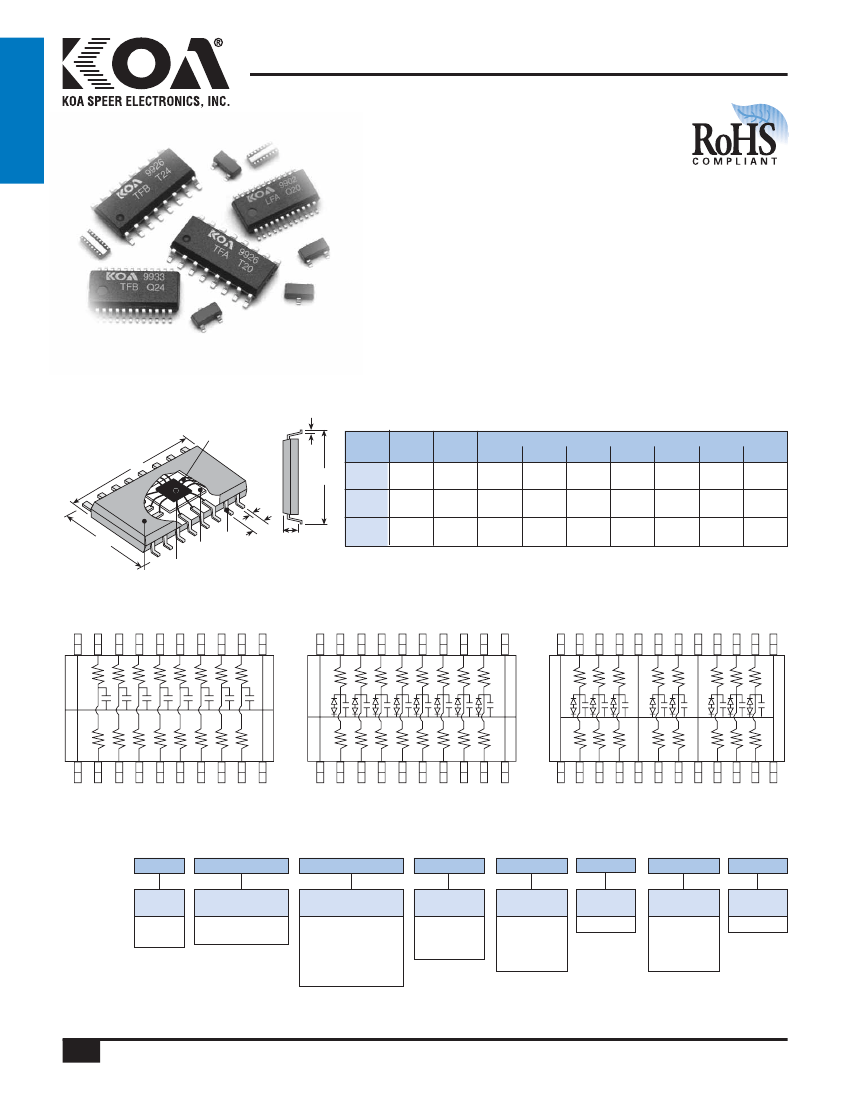

circuit schematic

TFA:

20 pins

TFB:

20 pins

TFB:

24 pins

ordering information

New Part #

TFB

Type

TFA

TFB

Q20

Package

Code

Reference

above table

Termination

Material

T: Sn

(Other termination

styles available,

contact factory

for options)

TEB

Packaging

TEB: 13"

embossed

plastic tape

250

Nominal

Resistance

2 significant

digits +

number

of zeros

Tolerance

K: ±10%

201

Nominal

Capacitance

2 significant

digits +

number

of zeros

Tolerance

M: ±20%

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/12/08

142

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
