SF7282-6P-G-530 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SF7282-6P-G-530

SF7282-6P-G-530: Description6 CONTACT(S), COPPER ALLOY, MALE, CIRCULAR CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size148KB，2 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric View All

SF7282-6P-G-530 Overview

6 CONTACT(S), COPPER ALLOY, MALE, CIRCULAR CONNECTOR, SOLDER, ROHS COMPLIANT

SF7282-6P-G-530 Parametric

Parameter Name	Attribute value
Maker	Switchcraft
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	MINI-CON-X, SHIELDED
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	SF
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

Switchcraft

co.

Made in USA

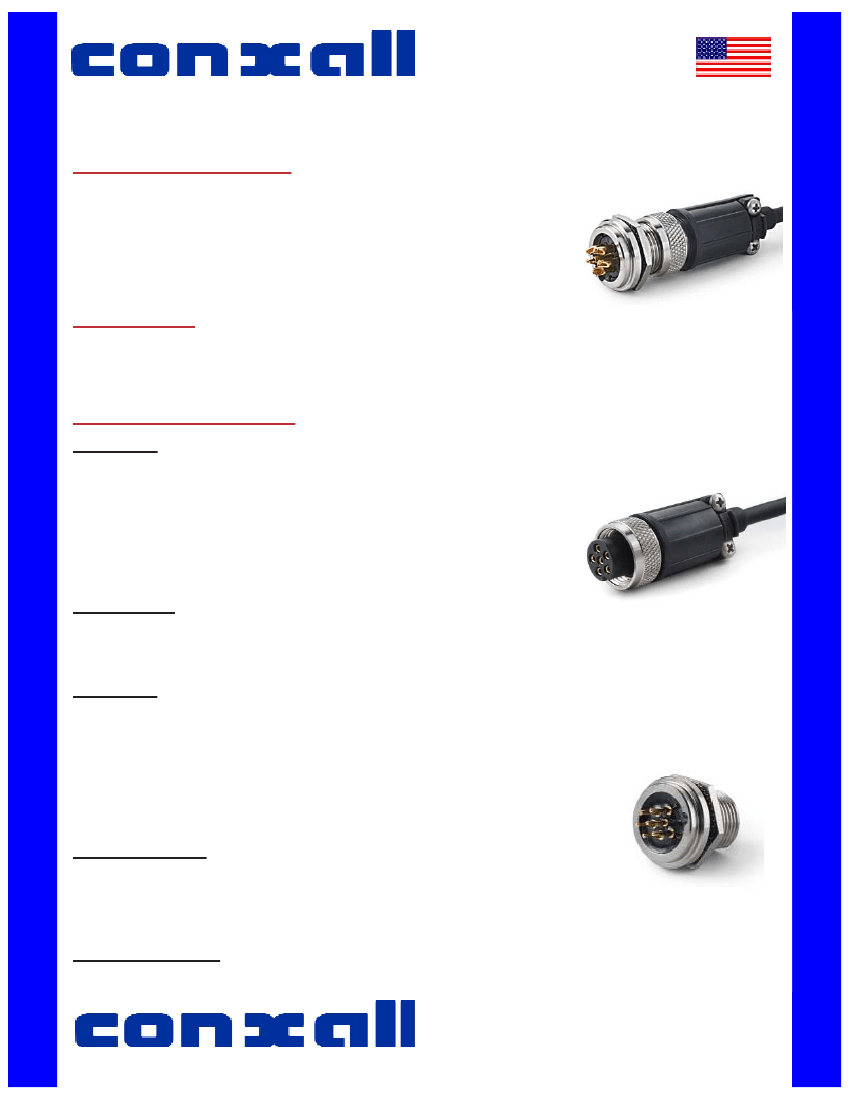

INTRODUCING THE SHIELDED MINI-CON-X

CONNECTOR

Features and Benefits

●

Protects circuits from EMI & RF interference

Rugged machined metal housing and construction

Field installable

Scoop-proof connector design

Same panel cutout as MINI-CON-X

Also available overmolded

Mated Cable End

Applications

●

Conveyor Equipment

●

Machine Tools

●

Spot Welders

●

Automated Assembly

●

Food Processing Equipment

●

Packaging & Material Handling Equipment

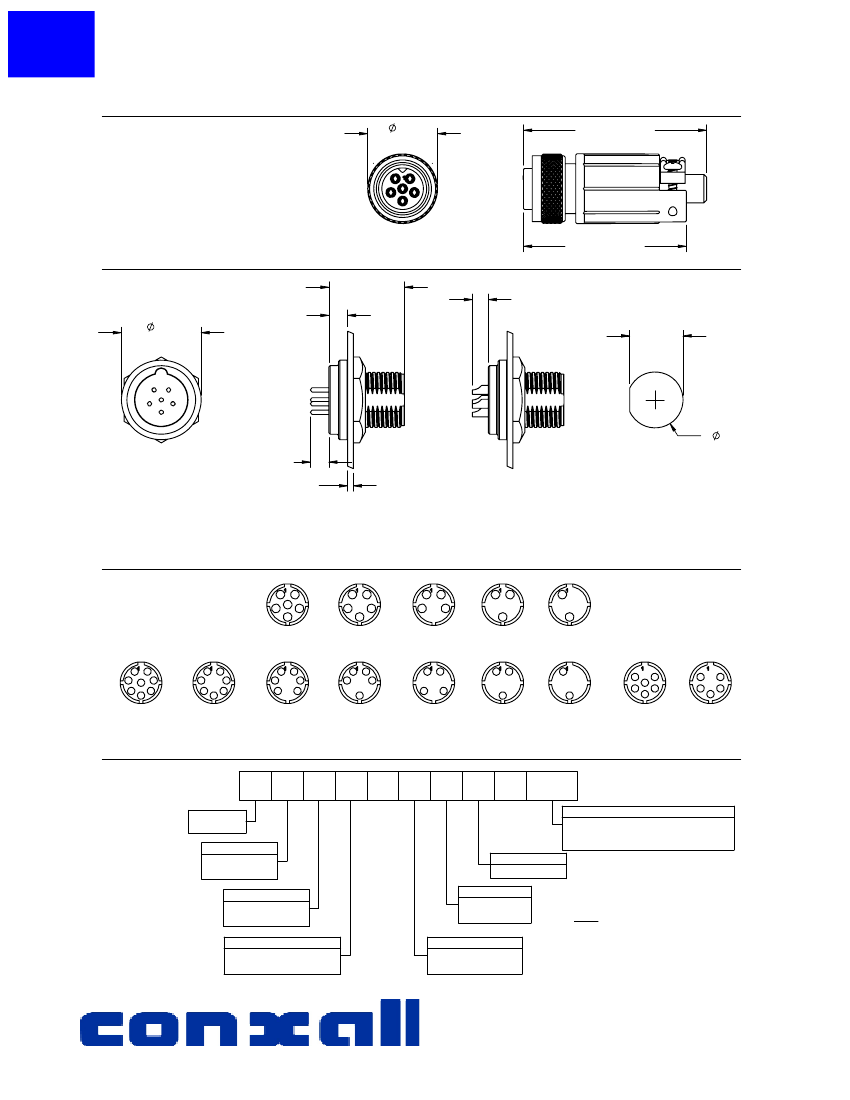

Product Specifications

Materials

Panel Shell, Cable Housing & Coupling Nuts:

Nickel plated copper alloy

All Connector Inserts:

Engineered Polyester Resin

Contacts:

Gold plated copper alloy with nickel underplate

Backshell & Strap:

G.F. Nylon

O-Rings:

Neoprene

Screws:

Stainless Steel

Mechanical

Shock:

Method 213, Mil-Std 202

Vibration:

Method 201, Mil-Std 202

Life:

400 insertion/withdrawal cycles

Electrical

Voltage Rating:

Tested at 600 VRMS

Insulation Resistance:

Method 302, Mil-Std 202

Contact Resistance:

Method 307, Mil-Std 202

Current Ratings:

13A: 1 - 6, #16 contacts with 16 AWG Wire

7.5A: 1 - 3, #20 contacts with 20 AWG Wire

5.6A: 4 - 8, #20 contacts with 20 AWG Wire

Environmental

Temperature Rating:

-40°C (-40°F) to +120°C (+248°F)

Temperature Rise:

UL 1054

Thermal Shock:

Method 107, Mil-Std 202

Moisture/Salt Spray:

Method 106F / 101 Mil-Std 202

Product Ratings

IP66 / IP68 (when mated), RoHS Compliant

601 E. Wildwood Avenue - Villa Park, IL 60181

Phone (630) 834-7504 / Fax (630) 834-8540

Cable End

Epoxy Sealed

Panel Mount

www.conxall.com

Product Bulletin C703
