UPD72002C datasheet, PDF - EEWORLD Datasheet

UPD72002C: DescriptionIC,COMMUNICATIONS CONTROLLER,CMOS,DIP,40PIN; CategoryThe embedded processor and controller Microcontrollers and processors; File Size70KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

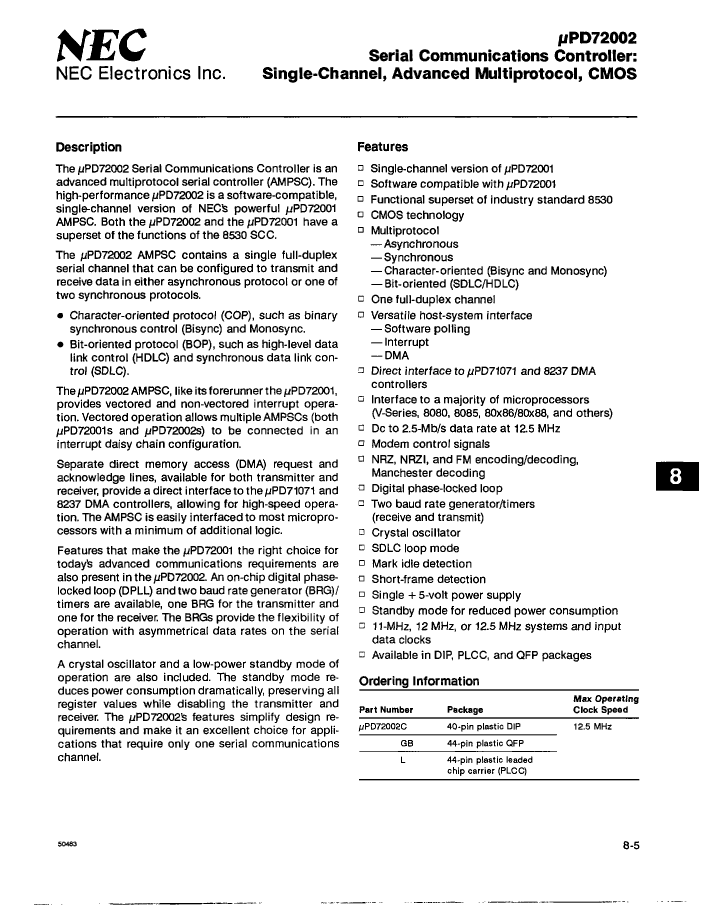

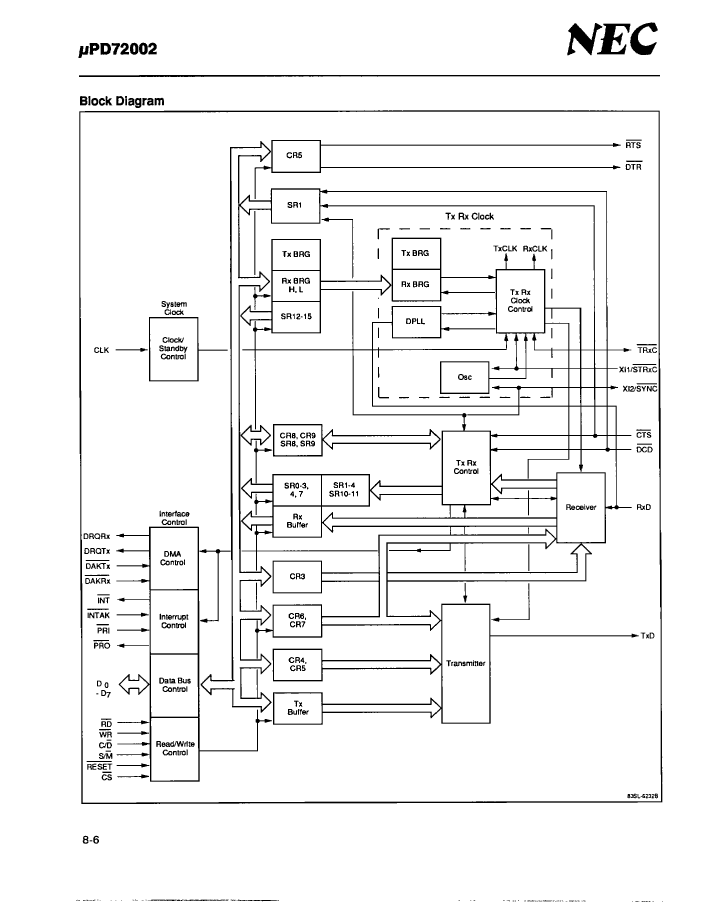

UPD72002C Overview

IC,COMMUNICATIONS CONTROLLER,CMOS,DIP,40PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
Contacts	40
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	40 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	UPD72002C	UPD72002GB	UPD72002L
Description	IC,COMMUNICATIONS CONTROLLER,CMOS,DIP,40PIN	IC,COMMUNICATIONS CONTROLLER,CMOS,QFP,44PIN	1 CHANNEL(S), 2.5Mbps, MULTI PROTOCOL CONTROLLER, PQCC44, PLASTIC, LCC-44
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	QFP	LCC
Contacts	40	44	44
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDIP-T40	S-PQFP-G44	S-PQCC-J44
JESD-609 code	e0	e0	e0
Number of terminals	40	44	44
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP	QCCJ
Encapsulate equivalent code	DIP40,.6	QFP44,.57SQ,32	LDCC44,.7SQ
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	40 mA	40 mA	40 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	J BEND
Terminal pitch	2.54 mm	0.8 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD
