LGY3009-0400F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LGY3009-0400F

LGY3009-0400F: DescriptionAudio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack,; CategoryThe connector The connector; File Size423KB，10 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LGY3009-0400F Overview

Audio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack,

LGY3009-0400F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	1X1 HORIZONTAL
Connector type	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of poles	4
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

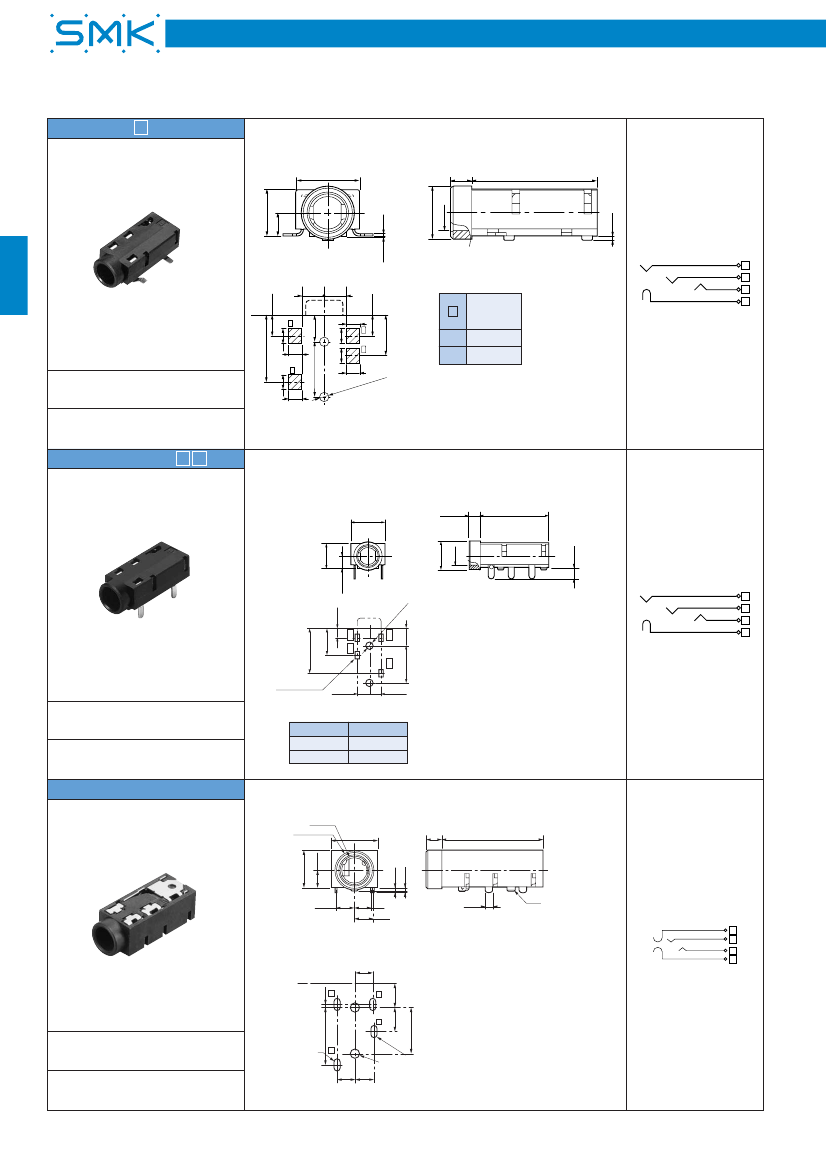

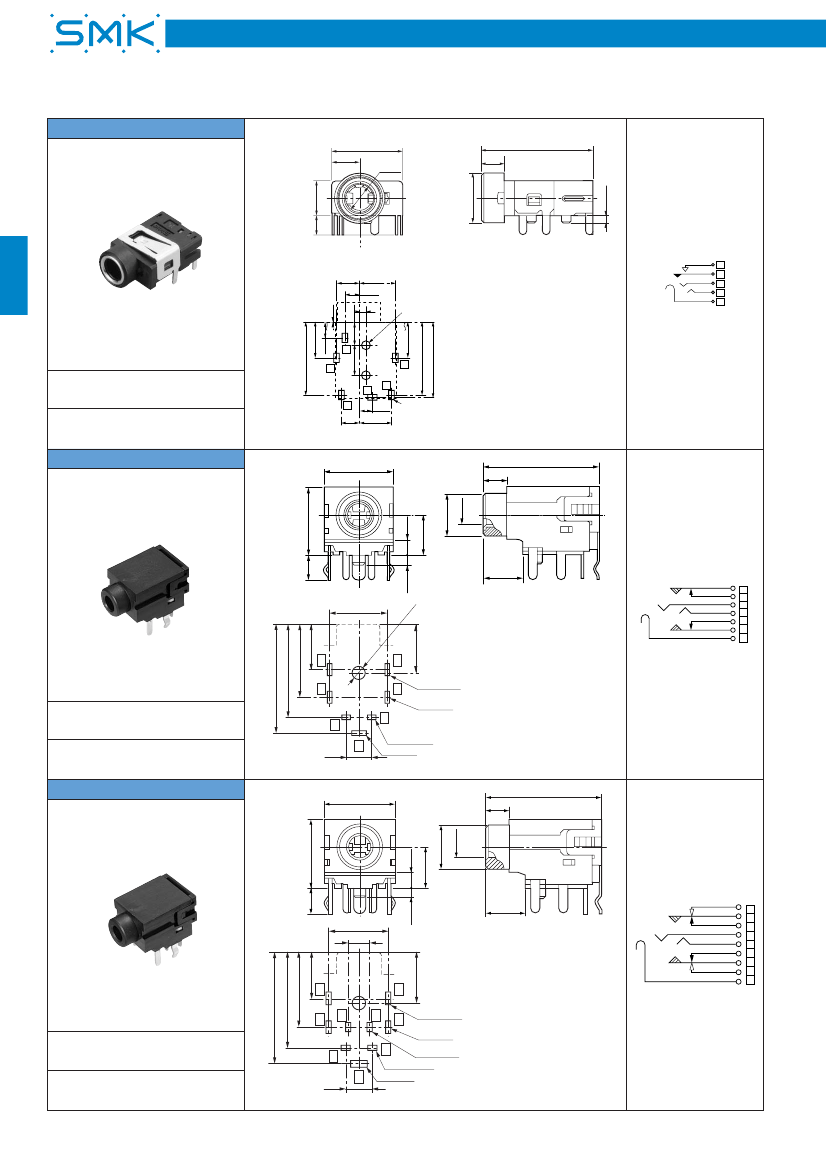

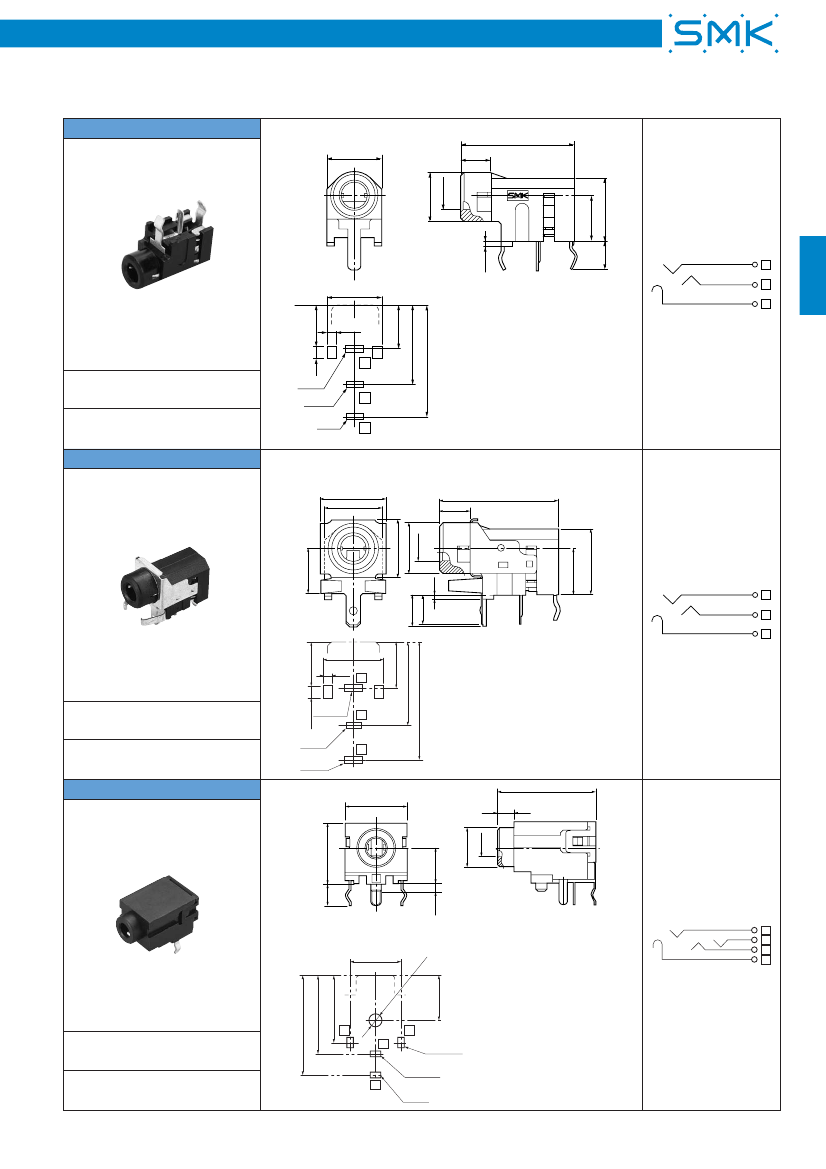

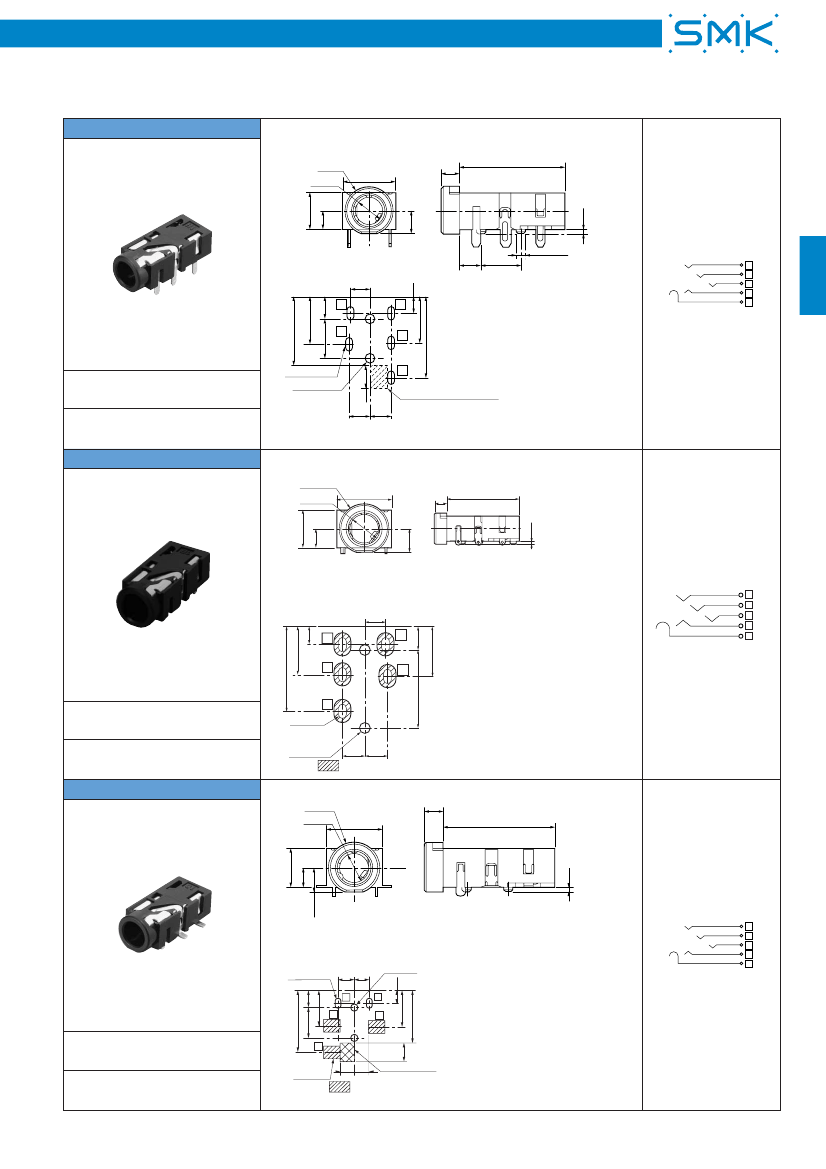

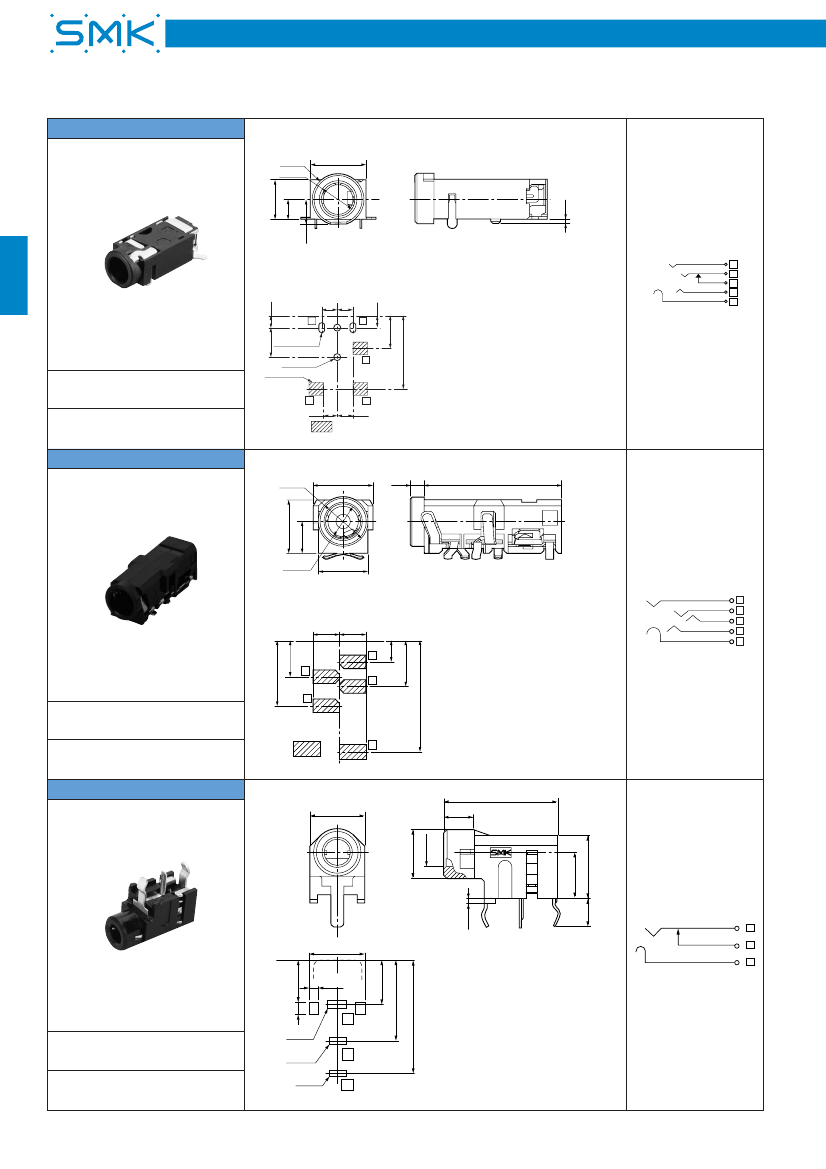

3.5mm Dia. Jacks

LGY22 9-0101F

0.05 0.1

(Terminal position

range)

4.4

2.2

ø5

ø3.6

0.4

Circuits /

回路

2.75

3.5

1.8

Mini Jacks

5.35

Metal Sleeve

口金

Without

With

7.5

1.8

SMD Type

面実装タイプ

LGY2209-03

1.8

)

Hole

1.2(

P.C. Board Dimension

取付基板参考図

(Top View)

Reflow Soldering

リフローはんだ

(500pcs/reel)

ø5

ø3.6

4.4

4-2

Circuits /

回路

2.2

5.35

7.5

3.5

P.C. Board Dimension

取付基板参考図

(Bottom View)

1.9

4-1.5x0.7

2.4

[t=0.8]

Discrete Type

ディスクリートタイプ

LGY2209-0800F

□□

Housing Color

Black

Yellow

ø1

2.4

Manual Soldering

手はんだ

ø3.6

ø5

4.7

2.2

13.2

0.5

0.7

Circuits /

回路

2.4

2.2

2.4

4-1

2.2

0.4

7.5

Discrete Type

ディスクリートタイプ

-R

P.C. Board Dimension

取付基板参考図

(Bottom View)

Reflow Soldering

リフローはんだ

Manual Soldering

手はんだ

4-1.6x0.8

3.1

0.4

※

Shading Type

遮光仕様

2-ø1.2

2.4 2.4

[t=0.8]

LGY3009-0400F Related Products

	LGY3009-0400F	LGT8509-0100F	LGY6501-0900F	LGY2109-1001F
Description	Audio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack,	Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 2 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 4 Pole(s), Surface Mount Terminal, Jack,
Reach Compliance Code	unknown	unknown	unknown	unknow
Body/casing type	JACK	JACK	JACK	JACK
Configuration	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL	1X1 HORIZONTAL
Connector type	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO	3.5mm AUDIO
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Number of poles	4	4	2	4
Number of ports	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SOLID LEAD	SOLID LEAD	SURFACE MOUNT
Maker	SMK	SMK	-	SMK
