ZL50212
288 Channel Voice Echo Canceller
Data Sheet
Features
•
ZL50212 has nine Echo Voice Processors in a
single BGA package. This single device provides
288 channels of 64 msec echo cancellation or 144
channels at 128 msec echo cancellation
Each Echo Voice Processor has the capability of
cancelling echo over 32 channels
Each Echo Voice Processor (EVP) shares the
address bus and data bus with each other
Fully compliant to ITU-T G.165, G.168 (2000) and
(2002) specifications
Passed all AT&T voice quality tests for carrier
grade echo canceller
The ZL50212 provides more than 63% board
space savings when compared with the nine Echo
Voice Processors packaged devices
Each EVP has a Patented Advanced Non-Linear
Processor with high quality subjective performance
Each EVP has protection against narrow band
signal divergence and instability in high echo
environments
Each EVP can be programmed independently in
any mode e.g. Back-to-Back or Extended Delay to
provide capability of cancelling different echo tails.
Each EVP has 0 to -12 dB level adjusters at all
signal ports (Rin, Sin, Sout and Rout)
Each EVP has the same JTAG identification code
Ordering Information

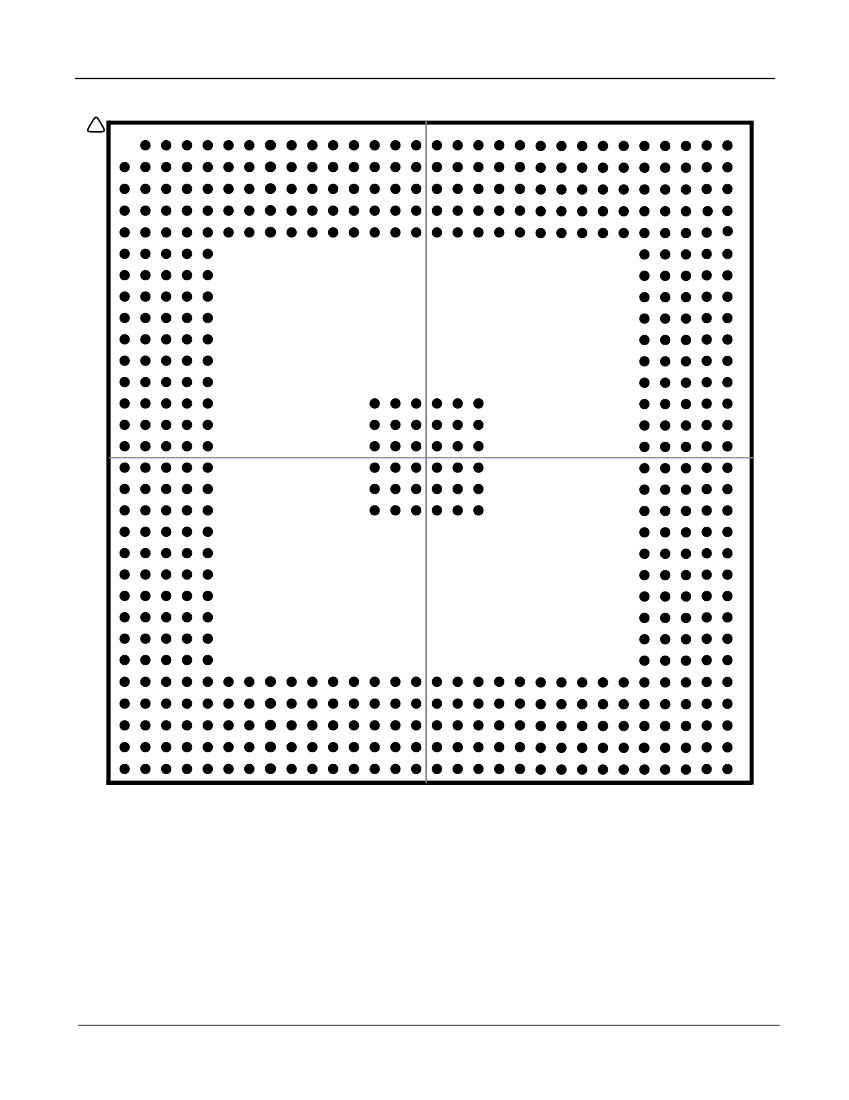

ZL50212GB 535 - Ball BGA
-40°C to +85°C
March 2003
•
•
•
•
•
Applications
•
•
•
•
•
•
Voice over IP network gateways
Voice over ATM, Frame Relay
T1/E1/J1 multichannel echo cancellation
Wireless base stations
Echo Canceller pools
DCME, satellite and multiplexer system
Description
The ZL50212 Voice Echo Canceller implements a cost
effective solution for telephony voice-band echo
cancellation conforming to ITU-T G.168 requirements.
The ZL50212 architecture contains 144 groups of two
echo cancellers (ECA and ECB) which can be
configured to provide two channels of 64 milliseconds
or one channel of 128 milliseconds echo cancellation.
This provides 288 channels of 64 milliseconds to 144
channels of 128 milliseconds echo cancellation or any
combination of the two configurations. The ZL50212
supports ITU-T G.165 and G.164 tone disable
requirements.
•
•
•
•
•
ZL50212GB
Rin1...Rin9
Sin1....Sin9
D0....D7
CS1..CS9
A0..A12
RESET1..RESET9
EVP1
EVP2
EVP3
Rout1..Rout9
Sout1..Sout9
EVP4
EVP9
EVP5
IRQ1..IRQ9
EVP6
EVP7
EVP8
DTA1..DTA9
MLCK
Fsel
R/W
ODE
C4i
Figure 1 - ZL50212 Device Overview
Foi
DS
1
ZL50212
Pin Description
Signal
Name
V
DD1
= 3.3V
(V
DD_IO
)
Signal
Type
Power
BGA Ball #
Data Sheet
Signal Description
AC5,AC26,AC27,AD26,AD5,AE5,AF12,AF13,AF1
Positive Power Supply.
4,AF17,AF18,AF19,AF24,AF6,AF7,AF8,AG24,AH Nominally 3.3 volt ( I/O
24,E13,E14,E17,E18,E19,E23,E24,E25,E6,E7,E8, voltage).
F5,G26,G27,G5,H26,H5,M26,M5,N26,N5,P26,P27
, P4,P5,U26,U27,U4,U5,V26,V5,W26,W5
AA26,AA28,AA3,AA5,AB26,AB28,AB3,AB5,AF11,
Positive Power Supply.
AF20,AG10,AG21,AG22,AH10,AH11,AH22,AJ15, Nominally 1.8 volt (Core
AJ16,AJ9,AK9,C10,C11,C22,C23,C9,D10,D23,D9, voltage).
E11,E20,E21,E22,J26,J27,J4,J5,K26,K27,K3,K5,
L26,L27,L3,L5,Y26, Y27,Y3,Y5
A29,A30,AF5,AG15,AG16,AG26,AG27,AG4,AH15
Ground
,
AH16,AH21,AH28,AH3,AJ2,AJ21,AJ29,AK1,AK30,
B1,B15,B16,B2,B29,C15,C16,C28,C3,D15,D16,
D27,D4,E26,E5,N13,N14,N15,N16,N17,N18,P13,
P14,P15,P16,P17,P18,R13,R14,R15,R16,R17,
R18,R2,R27,R28,R29,R3,R4,T13,T14,T15,T16,
T17,T18,T2,T27,T28,T29,T3,T4,U13,U14,U15,
U16,U17,U18,V13,V14,V15,V16, V17,V18
TEST PINS
M4,AK26,M3,AJ4,AK4,AK25,K30,N28,AJ14
Internal Connection.
Connected to VSS for
normal operation.
V
DD2
= 1.8V
(V
DD_Core
)
Power
VSS
Power
TE1, TE2,
TE3, TE4,
TE5, TE6,
TE7, TE8,
TE9
Test Mode
Pins
OUTPUT
TEST PINS
Test
pins
No connection.
These
D8,P28,C12,AK10,AH12,AD29,H28,J29,AC28,
D12,P29,E9,AJ11,AK11,AD30,G28,H29,AB27,A3, pins must be left open for
normal operation.
P2,A2,Y1,AA1,AJ17,C20,B21,AK17,B3,P1,D3,
AA2,AB1,AK18,B22,D21,AJ18,C2,R1,E3,AB2,
AB4,AH18,D19,A22,AK19,D2,T1,E4,AC1,AC2,
AG18,A21,B20,AJ19,C1,U1,F4,AC4,AD1,AK20,
C19,A20,AH19,F3,U2,E2,AC3,AD2,AK21,B19,
A19,AG19,E10,P30,B12,AJ12,AG13,AC29,J30,
G29,AC30,A11,N30,D11,AH13,AK12,AB29,H30,
G30,AB30,A10,N27,B11,AJ13,AG14,AA27,F29,
F30,AA29,A9,A14,B10,AG11,AG12,Y28,E29,E28,
AA30,A8,A13,B9,AJ10,AF10,Y29,D29,E30,Y30,
C8,B14,B8,AG9,AH9,W28,D26,D28,W29,C4,
E12,C5,AA4,Y4,R30,A23,B23,
T30,B4,P3,A4,Y2,W1,AG17,D20,C21,AH17
4
