LH53H4000T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH53H4000T

LH53H4000T: DescriptionMASK ROM, 512KX8, 80ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48; Categorystorage storage; File Size33KB，1 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH53H4000T Overview

MASK ROM, 512KX8, 80ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48

LH53H4000T Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown
Maximum access time	80 ns
Other features	CONFIGURABLE AS 256K X 16
JESD-30 code	R-PDSO-G48
length	16.4 mm
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	524288 words
character code	512000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	12 mm

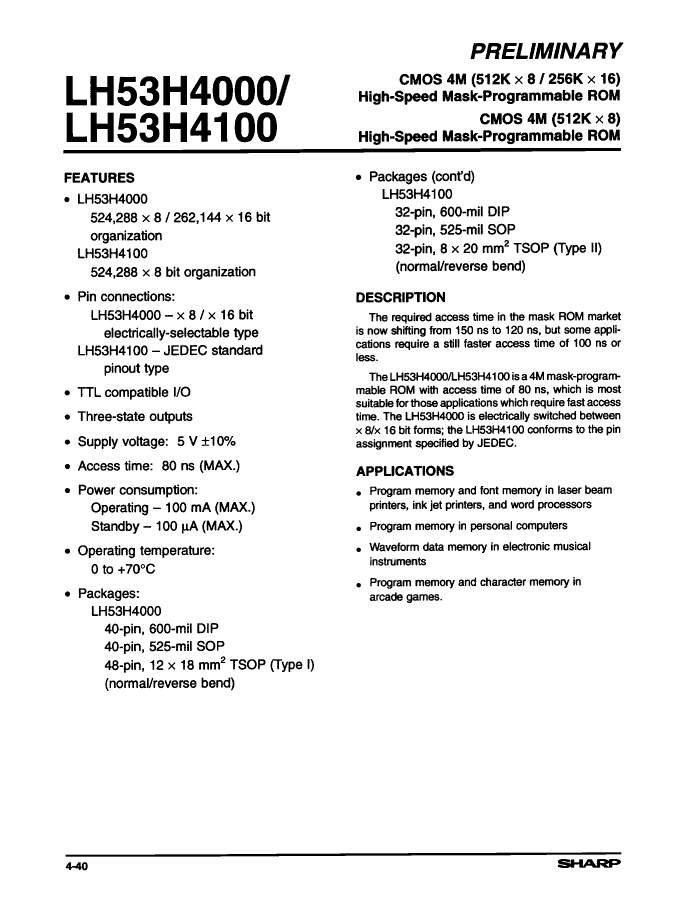

Preview

Download Datasheet

View All

LH53H4000T Related Products

	LH53H4000T	LH53H4100T	LH53H4100TR	LH53H4000TR
Description	MASK ROM, 512KX8, 80ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 512KX8, 80ns, CMOS, PDSO32, 8 X 20 MM, PLASTIC, TSOP2-32	MASK ROM, 512KX8, 80ns, CMOS, PDSO32, 8 X 20 MM, PLASTIC, REVERSE, TSOP2-32	MASK ROM, 512KX8, 80ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Maker	SHARP	SHARP	SHARP	SHARP
package instruction	12 X 18 MM, PLASTIC, TSOP1-48	8 X 20 MM, PLASTIC, TSOP2-32	8 X 20 MM, PLASTIC, REVERSE, TSOP2-32	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknow
Maximum access time	80 ns	80 ns	80 ns	80 ns
JESD-30 code	R-PDSO-G48	R-PDSO-G32	R-PDSO-G32	R-PDSO-G48
length	16.4 mm	18.4 mm	18.4 mm	16.4 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	48	32	32	48
word count	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	TSOP1	TSOP1-R	TSOP1-R
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	12 mm	8 mm	8 mm	12 mm
