ASFLT-D-5.0000MHZ-Y-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASFLT-D-5.0000MHZ-Y-T

Preview

ASFLT-D-5.0000MHZ-Y-T: DescriptionCMOS Output Clock Oscillator, 5MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size776KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASFLT-D-5.0000MHZ-Y-T Overview

CMOS Output Clock Oscillator, 5MHz Nom, ROHS COMPLIANT PACKAGE-4

ASFLT-D-5.0000MHZ-Y-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
Manufacturer's serial number	ASFLT
Installation features	SURFACE MOUNT
Nominal operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.05mm
longest rise time	5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

TIGHT STABILITY INDUSTRIAL GRADE CRYSTAL OSCILLATOR

ASFLT SERIES

FEATURES:

• Highly reliable seam-sealed package

• Low current consumption

• Low phase noise and jitter

• Industrial grade tight temperature stability (±5.0ppm / -40 to +85

°

C)

• Fast start-up time

• CMOS output with Tri-state function

Pb

RoHS

Compliant

APPLICATIONS:

• Home networking by AC socket

• Wireless LAN

• Mobile communications

• PLC modem

• WiMax

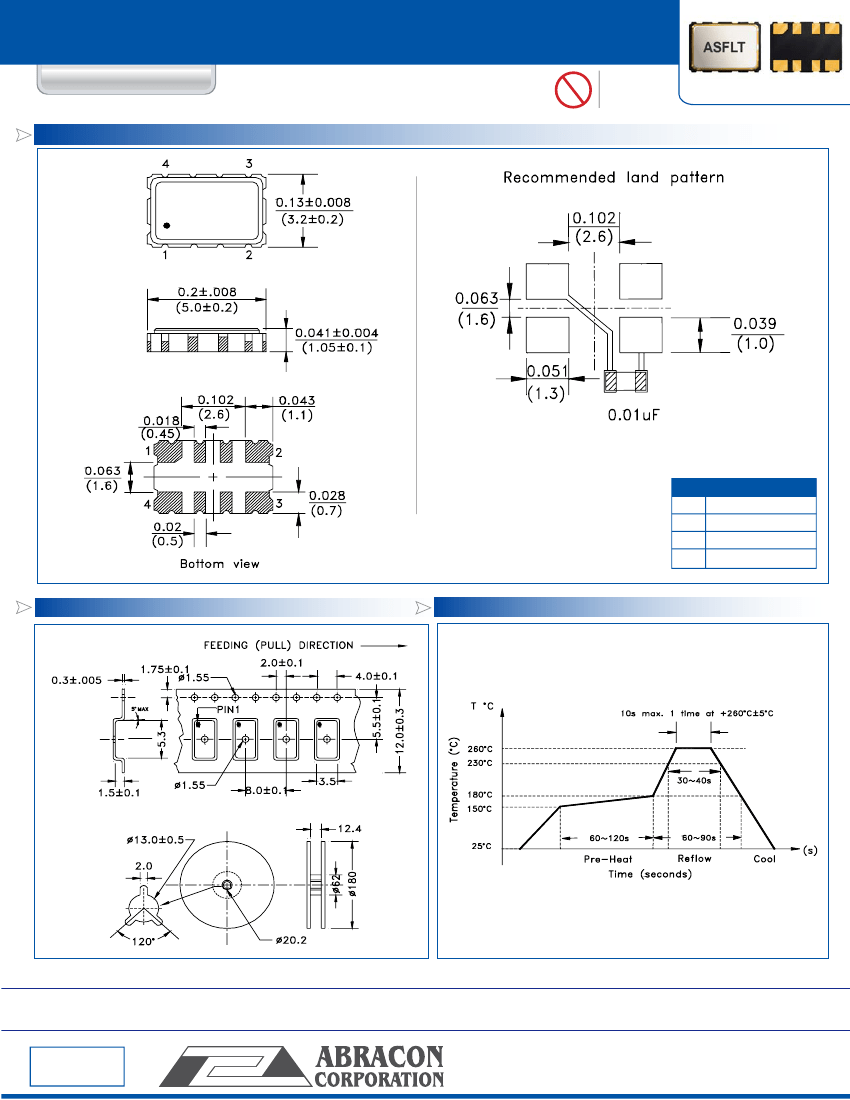

5.0 x 3.2 x 1.05mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency:

Standard Frequencies:

Output level:

Operating temperature:

Storage temperature:

Overall Frequency Stability*:

Supply voltage (Vdd):

Supply current (Idd):

ASFLT Series

4.000MHz to 54.000MHz

5, 10, 12, 16, 16.384, 19.44, 20, 24, 26, 32, 40, 44MHz

CMOS

- 40°C to +85°C

±15ppm (see option)

3.0Vdc ± 10% (see option)

7mA max.

10µA max.

45/55 % @ 50% Vdd

5ns max. / 10%Vdd-90%Vdd

0.2ms typical, 3ms max.

15pF max.

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

±2 ppm/ first year, ±7 ppm/ 10 years

-143dBc/Hz Typ.

1σ 3ps typ.

Stand-by current:

Symmetry:

Rise and Fall Times(Tr/Tf):

Start-up time:

Output load:

Output Voltage:

Aging @ 25ºC:

Phase Noise (@ 10kHz offset):

Jitter:

* Overall frequency stability includes initial tolerance @ +25˚

C, and temperature stability.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASFLT -

- Frequency -

-

P/N and Vdd (V)

Blank

3.0±10%

A

2.7±10%

B

3.3±10%

C

2.8±10%

D

2.5±10%

XX.XXXX MHz

Frequency

Freq. Stability

Blank

±15 ppm

Y

±10 ppm

R7*

±7 ppm

R5*

±5 ppm

* Contact ABRACON for availability

Packaging

Blank

Bulk

Tape and

T

Reel

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised 11.01.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
