587-10-540-16-005437: DescriptionIC Socket, BGA540, 540 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size68KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

587-10-540-16-005437 Overview

IC Socket, BGA540, 540 Contact(s), ROHS COMPLIANT

587-10-540-16-005437 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Objectid	1927438229
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	64330337
Other features	BGA ADAPTER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	BGA540
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	540

Preview

Download Datasheet

View All

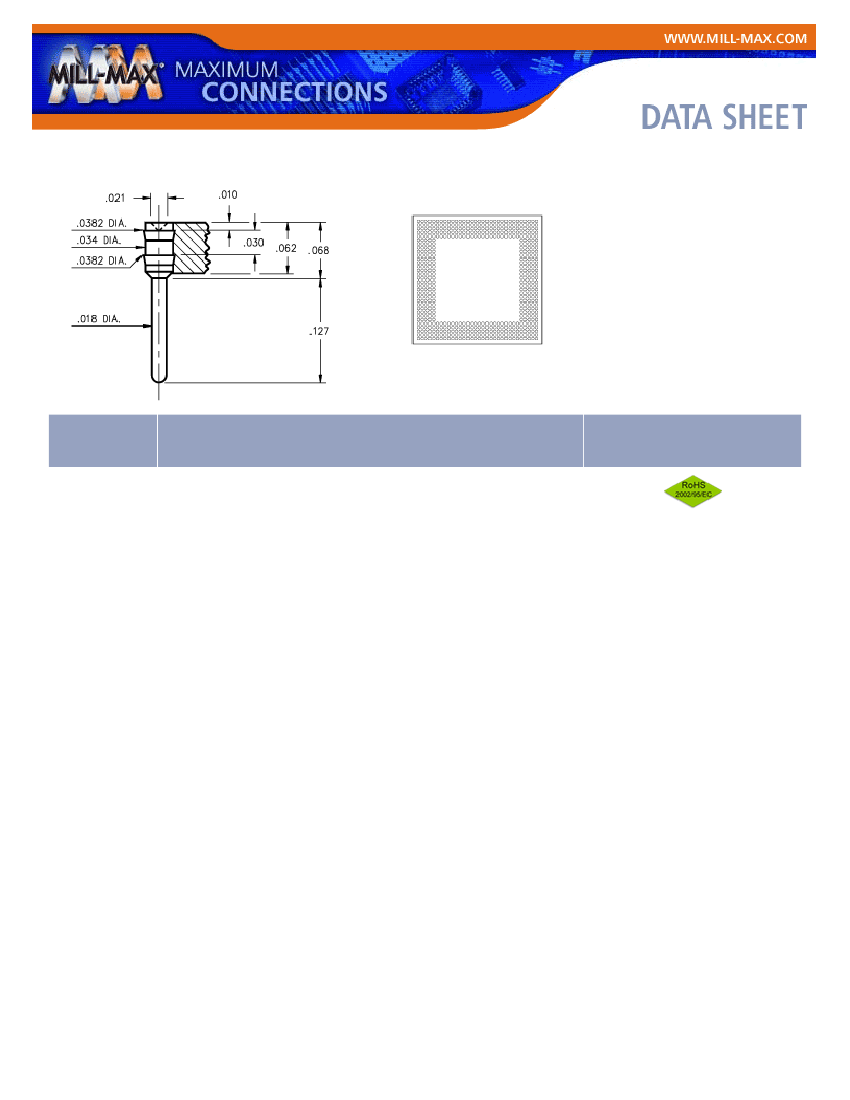

Product Number: 587-10-540-16-005437

Description:

BGA Header

.050 Grid; BGA Header

Plating Code:

10

Shell Plating:

10 " Gold over 100 " Nickel

540-16-005

32 X 32

#

Of

Pins

540

Mill-Max

Part

Number

587-10-540-16-005437

RoHS

Compliant

LOOSE PIN:

Loose Pin Used: 8737

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

FR-4

Laminate

High Temperature

Properties of FR-4 Laminate:

Epoxy/Glass Laminate. Thicknesses available: .010”, .020”, .031”, .047”, .062”, .093”, .125” (natural color, beige)

ENVIRONMENTAL DATA:

Operating temperature range: -55/+125 °C

Shock (No electrical discontinuity greater than 1 s):50 G

Solderability: 364-52

Resistance to soldering heat: 364-56A Test Cond. C

Mill-Max Mfg. Corp. Datasheet – Last Modified 6/27/2008

Page 1 of 2
