K1570AQH-33.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> K1570AQH-33.000MHZ

K1570AQH-33.000MHZ: DescriptionCMOS/TTL Output Clock Oscillator, 33MHz Nom, DIL-14/4; CategoryPassive components oscillator; File Size188KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric Compare View All

K1570AQH-33.000MHZ Overview

CMOS/TTL Output Clock Oscillator, 33MHz Nom, DIL-14/4

K1570AQH-33.000MHZ Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	190 ppm
frequency stability	40%
linearity	10%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	33 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/TTL
physical size	20.7mm x 13.08mm x 7.6mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

OBSOLETE

Applications:

Phase-Locked Loops (PLLís); Clock

Recovery; Reference Signal Tracking;

Synthesizers; Frequency Modulation/Demodulation

16-pin DIL Package

25.0 to 52.0 MHz Frequency Range

0.5V to 4.5V Control Voltage

±25ppm Stability

-40SC to 85SC Operating Temperature

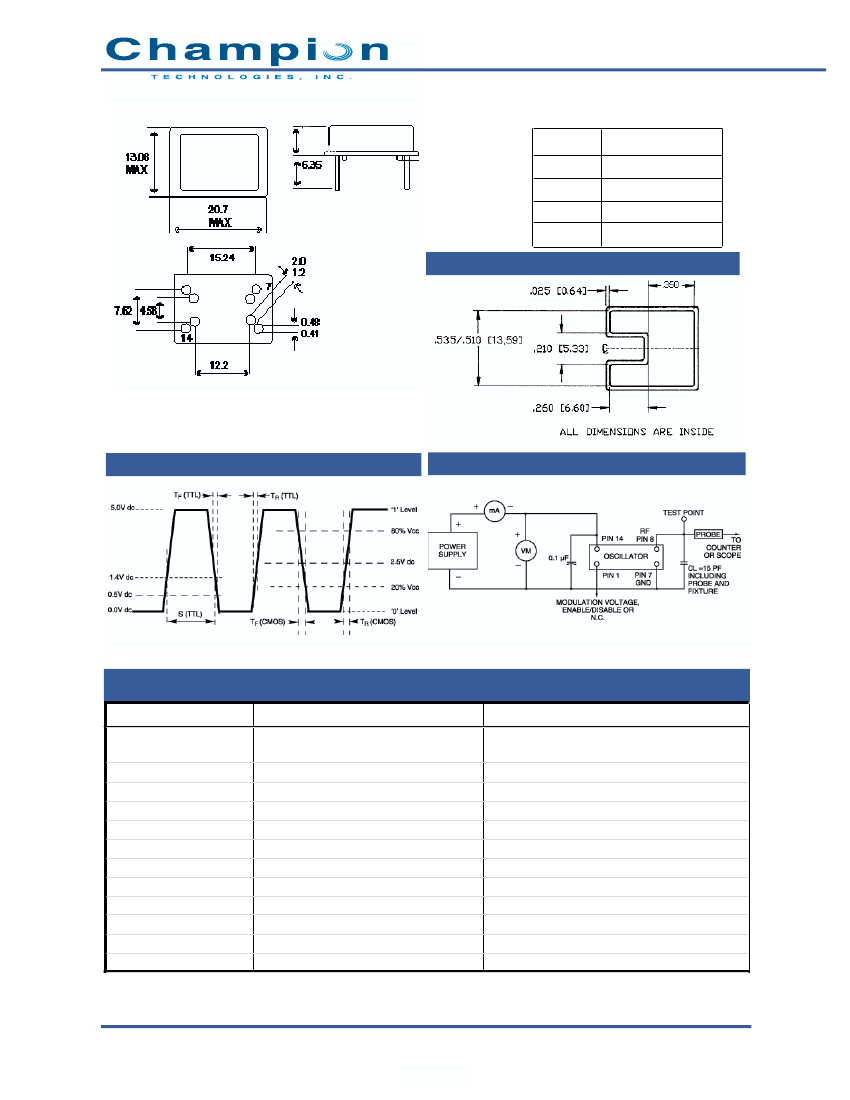

K1570AQH Series

5V Voltage Controlled Crystal Oscillators

20,

13,

0AQ Z

K157.000 MH E CODE

46 TI DAT

7,6

PIN 1

E L E C T R I C A L S P E C I F I C AT I O N S

Model

Frequency Range (MHz)

Input Current (mA)

Frequency Control Function

Deviation (ppm)

Minimum

Maximum

Linearity (%)

Modulation Bandwidth (±3dB)

Nominal Control Voltage (V)

Control Voltage Range (V)

Transfer Function

Input Impedance

Frequency Stability (ppm)

Overall

0oC to +70oC

-40oC to +85oC

Temperature Range (oC)

Operating

Storage

Supply Voltage (V)

Symmetry (%) CMOS/TTL

Start Up Time (ms)

Typical SSB Phase Noise (dBC/Hz)

Offset from Carrier

10Hz

100Hz

1KHz

10KHz

100KHz

-40oC to +85oC

-55oC to +125oC

+5.0V ±5%

40/60

<10

-65

-95

-120

-140

-150

Inclusive of Calibration, Temperature, Voltage, Load and Aging

±25

±50

±40

±55

±100

±190

< 10

> 20KHz

2.5

0.5 to 4.5

Positive

> 50KΩ @ 10KHz

±60

±120

< 15

25 to 33

< 26

K1570AQH

33 to 35

35 to 52

< 45

(For Custom Deviation Range, Vc Range, etc. - Consult Factory)

PA R T N U M B E R I N G G U I D E

K1570AQHX -

Specify Frequency

ìBlankî = 0SC to 70SC Operating Temp.

ìMî = -40SC to +85SC Operating Temp.

2553 N. Edgington Street, Franklin Park, IL 60131

Phone: 847.451.1000

Fax: 847.451.7585

800-888-1499 or www.champtech.com

K1570AQH-33.000MHZ Related Products

	K1570AQH-33.000MHZ	K1570AQHM-35.000MHZ	K1570AQHM-52.000MHZ
Description	CMOS/TTL Output Clock Oscillator, 33MHz Nom, DIL-14/4	CMOS/TTL Output Clock Oscillator, 35MHz Nom, DIL-14/4	CMOS/TTL Output Clock Oscillator, 52MHz Nom, DIL-14/4
Maker	MtronPTI	MtronPTI	MtronPTI
Reach Compliance Code	unknown	unknown	unknown
Maximum control voltage	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO	NO
Frequency offset/pull rate	190 ppm	120 ppm	120 ppm
frequency stability	40%	55%	55%
linearity	10%	12%	12%
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	33 MHz	35 MHz	52 MHz
Maximum operating temperature	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Oscillator type	CMOS/TTL	CMOS/TTL	CMOS/TTL
physical size	20.7mm x 13.08mm x 7.6mm	20.7mm x 13.08mm x 7.6mm	20.7mm x 13.08mm x 7.6mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
maximum symmetry	40/60 %	40/60 %	40/60 %
Base Number Matches	-	1	1
