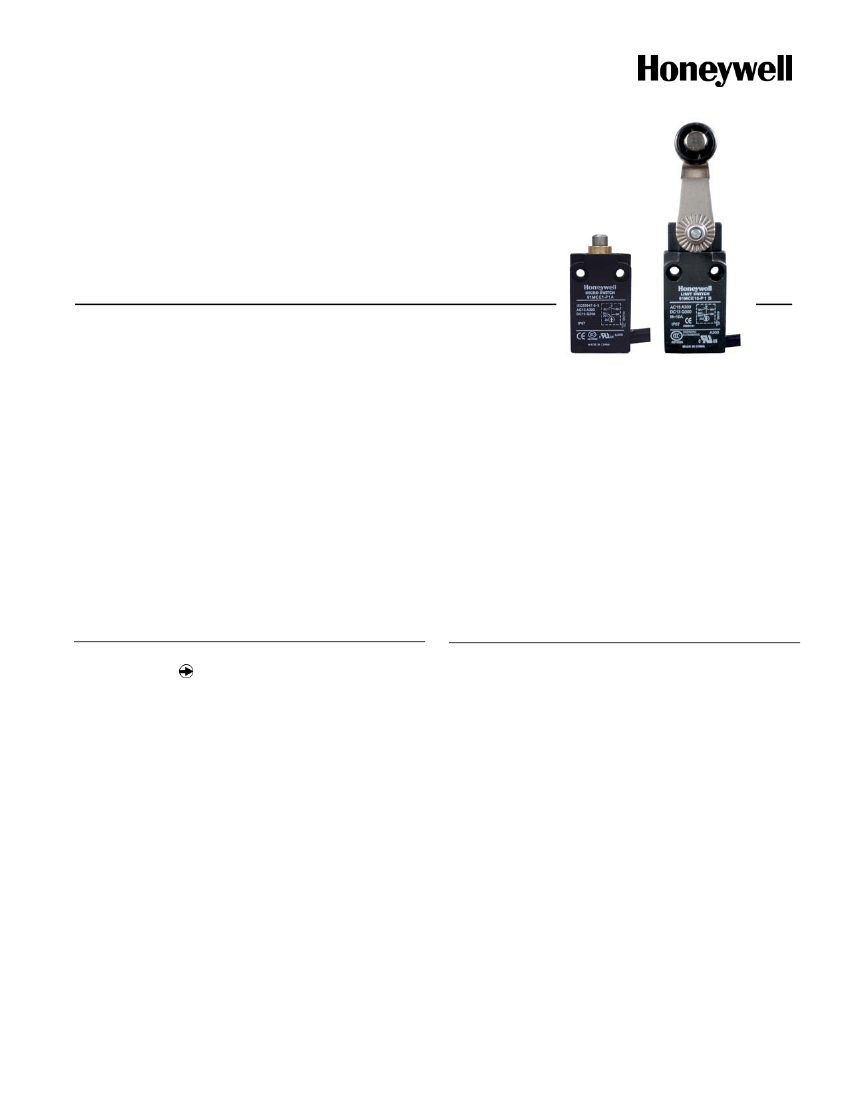

91MCE Series
Mini Compact Limit Switch
DESCRIPTION
The 91MCE series limit switch is a compliment to Honeywell's
existing product line of smaller, lower cost limit switches.
Designed for modern industrial OEMs, the miniature package
size fits in applications where space is limited. The small
package size can be gang mounted for applications requiring
more than two switch circuits. The 20mm mounting pattern
meets most globally accepted mounting standards.
This product family offers the user many options including a
variety of different actuator styles. Connection options include
pre-leaded cable in various lengths or M12 connectors, both
with side or bottom exits. Design flexibility is further enhanced
with the availability of both slow action and snap action
circuitry. Direct acting contacts are designed to open the NC
contact when actuated. The epoxy-sealed rugged die-cast
housing provides enhanced environmental durability.
Priced competitively, the 91MCE is a drop-in replacement to
many products, and provides enhanced quality that customers
expect from Honeywell.
FEATURES
•
•
•
•
•
•
•
•
Direct acting contacts are designed to open NC contacts
when actuated
Sealed to IP67; NEMA 1, 4, 12, 13 suitable for outdoor
applications
CE, cULus, CCC approvals meet most global approvals
Nine actuator styles offer design flexibility
Slow-action and snap-action circuitry options
Pre-leaded cable and M12 connector options
Expected mechanical life: 5 million operations
Side exit (standard) and bottom exit connection options
•
•
•
•
•
POTENTIAL APPLICATIONS
Machine equipment
Material handling
Aerial lifts
Forklifts
Off road and outdoor equipment
91MCE Series
TECHNICAL SPECIFICATIONS
Parameter
Operating speed
Operating frequency – mechanical
Operating frequency – electrical
Insulation resistance
Rated voltage
Rated thermal current
Electrical rating
Dielectric strength
Expected mechanical life
Expected electrical life
Operating temperature
Humidity
Cable
Degree of protection
Measure
0,05 mm to 1 m per second
120 ops per minute
30 ops per minute
> 100 Mohm @ 500 Vdc
300 Vac (EN60947-5-1)
10A pre-leaded versions; 3A connector versions
ac 15 A 300; dc 13 Q300
1000 Vac for one minute between current carrying parts
2500 Vac for one minute between non-current carrying parts
5 million operations
5 x 10
5
operations
-25 °C to 85 °C [ -13 °F to 185 °F] without the formation of ice
< 95 % RH
5 core, 0.75 mm
2
IP67
ELECTRICAL RATINGS
IEC 947-5-1 / EN 90947-5-1
Designation &
Utilization Category
AC15
DC13
A300
Q300
Rated operational current Ie (A) at rated operational voltage Ue
120 V
240 V
380 V
480 V
500 V
600 V
6
125 Vdc
0.55
3
0.27
–
250 Vdc
–
–
–
VA rating
Make
Break
7200
69
720
69

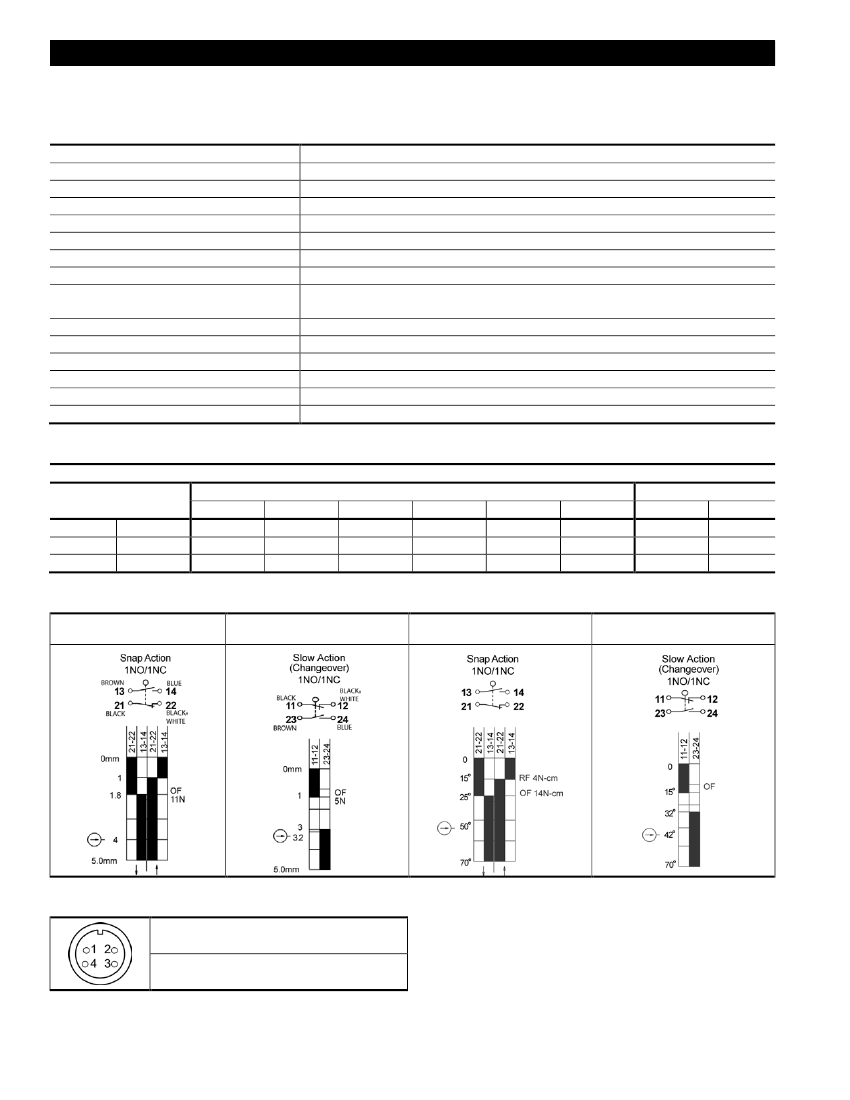

BAR CHARTS
Snap-action for plunger
actuators
Slow-action for plunger
actuators
Snap-action for side rotary
Slow-action for side rotary
PIN OUT – “Q” OPTION
Pin 1 & 2 – Normally Closed
Pin 3 & 4 – Normally Open
2
www.honeywell.com/sensing
Mini Compact Limit Switch

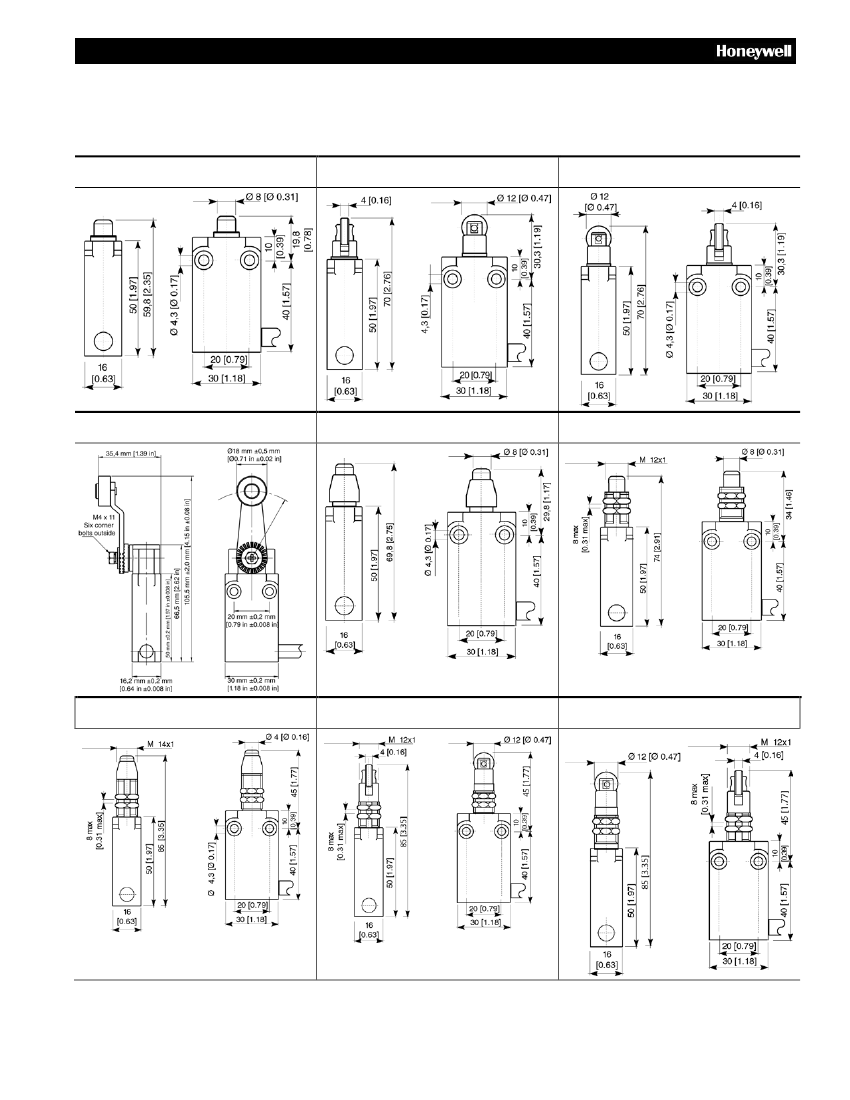

DIMENSIONS
91MCE1-P1/S1 – PIN PLUNGER
91MCE2-P1/S1 – ROLLER PLUNGER
91MCE3-P1/S1 – CROSS ROLLER
PLUNGER
91MCE16-P1/S1 – SIDE ROTARY
LEVER WITH METAL ROLLER
91MCE18-P1/S1 - PIN PLUNGER WITH
BOOT SEAL
91MCE27-P1/S1 - PANEL MOUNT PIN
PLUNGER
91MCE30-P1/S1 - PANEL MOUNT
BOOTED PIN PLUNGER
91MCE28-P1/S1 – PANEL MOUNT
ROLLER PLUNGER
91MCE29-P1/S1 – PANEL MOUNT
CROSS ROLLER PLUNGER
Honeywell Sensing and Control
3

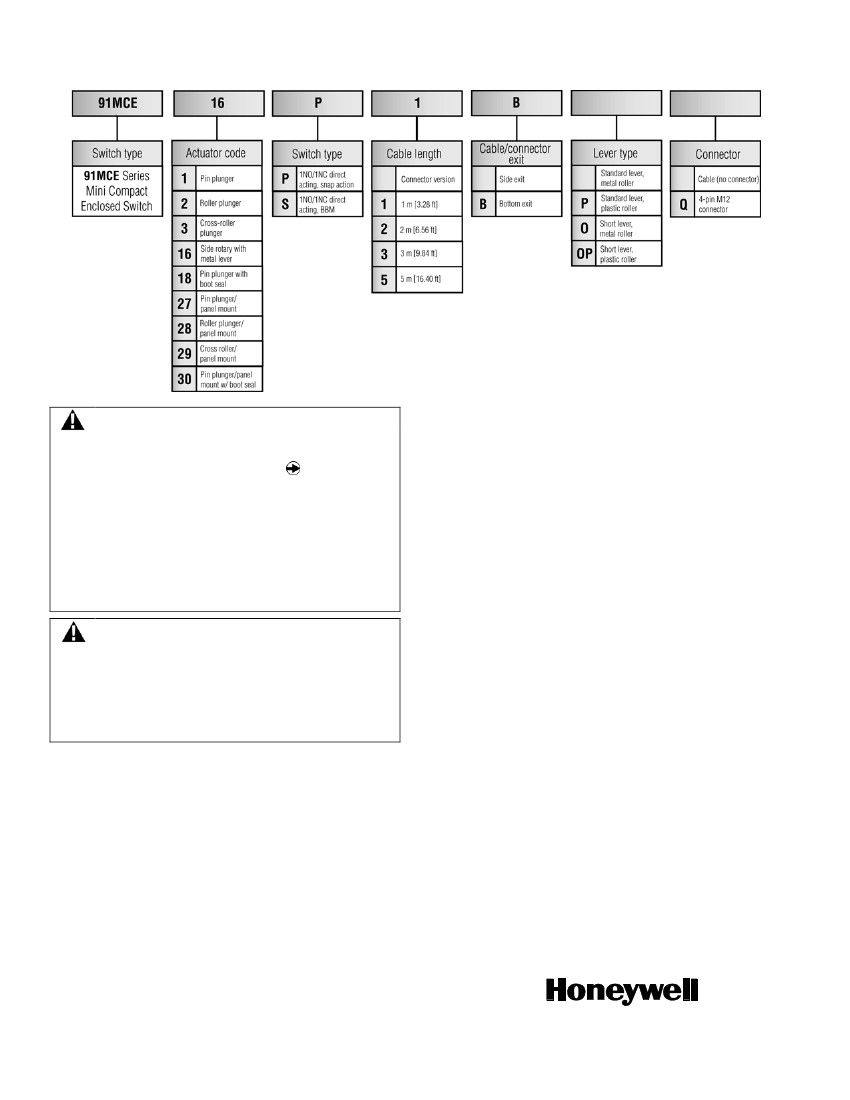

91MCE SWITCH PART NUMBER TREE
