RL-6100-100-1-H1 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> RL-6100-100-1-H1

RL-6100-100-1-H1: DescriptionGeneral Purpose Inductor, 100uH, 15%, 1 Element, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size1MB，3 Pages; ManufacturerRenco Electronics Inc.; Environmental Compliance

Download Datasheet Parametric View All

RL-6100-100-1-H1 Overview

General Purpose Inductor, 100uH, 15%, 1 Element, RADIAL LEADED, ROHS COMPLIANT

RL-6100-100-1-H1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renco Electronics Inc.
Objectid	1501125786
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	65440324
DC Resistance	0.145 Ω
Nominal inductance(L)	100 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	RL-6100
Number of functions	1
Number of terminals	2
Maximum rated current	1 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Tolerance	15%

Preview

Download Datasheet

View All

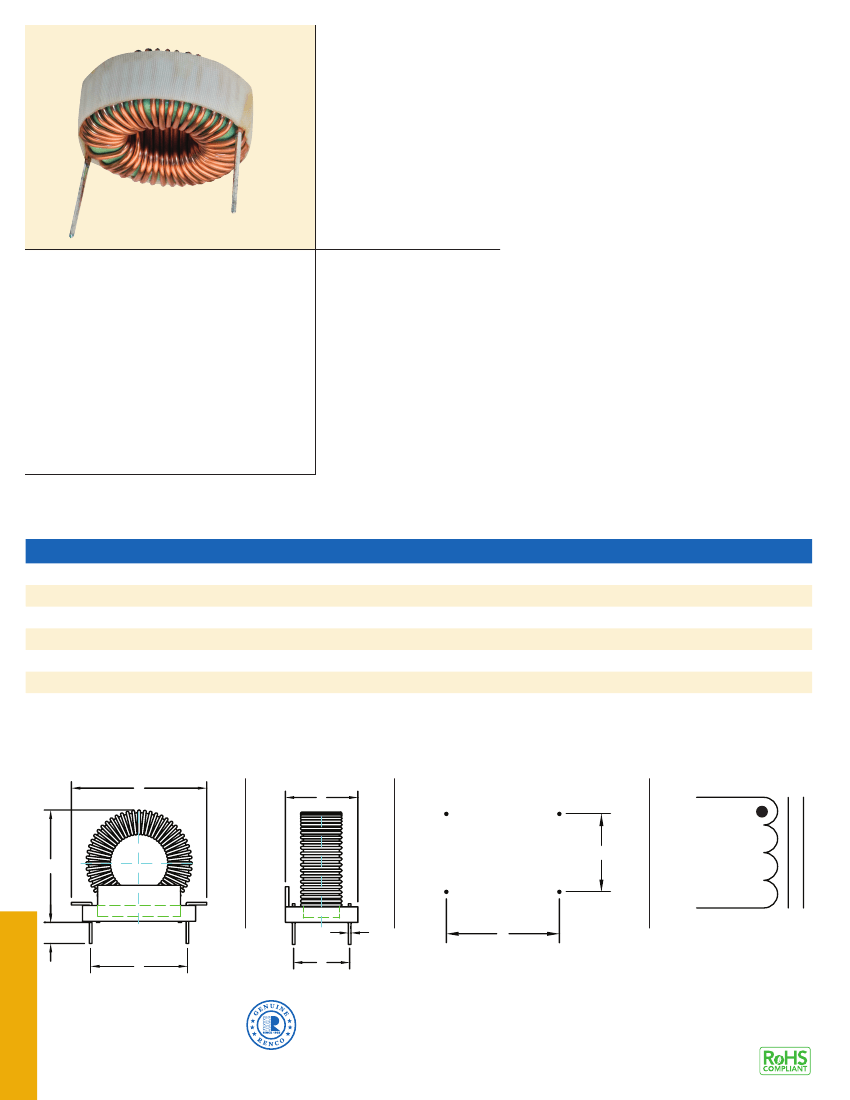

RL-6100

DESCRIPTION

• Toroidal Switched-mode Inductor

TOROIDAL Switched-mode

INDUCTORS

FEATURES & APPLICATIONS

• Designed for switching power supply applications

• Operates efficiently up to 200 kHz switching frequencies

• Use of linear, low loss core material make these inductors

suitable for many other applications requiring a toroid

ENVIRONMENTAL DATA

•

Storage temperature range:

-55°C to +130°C

Operating temperature range:

-40°C to +130°C

PACKAGING INFORMATION

• Packaging information: pg. 495

Verify operation with sample in actual circuit. Order samples at www.rencousa.com.

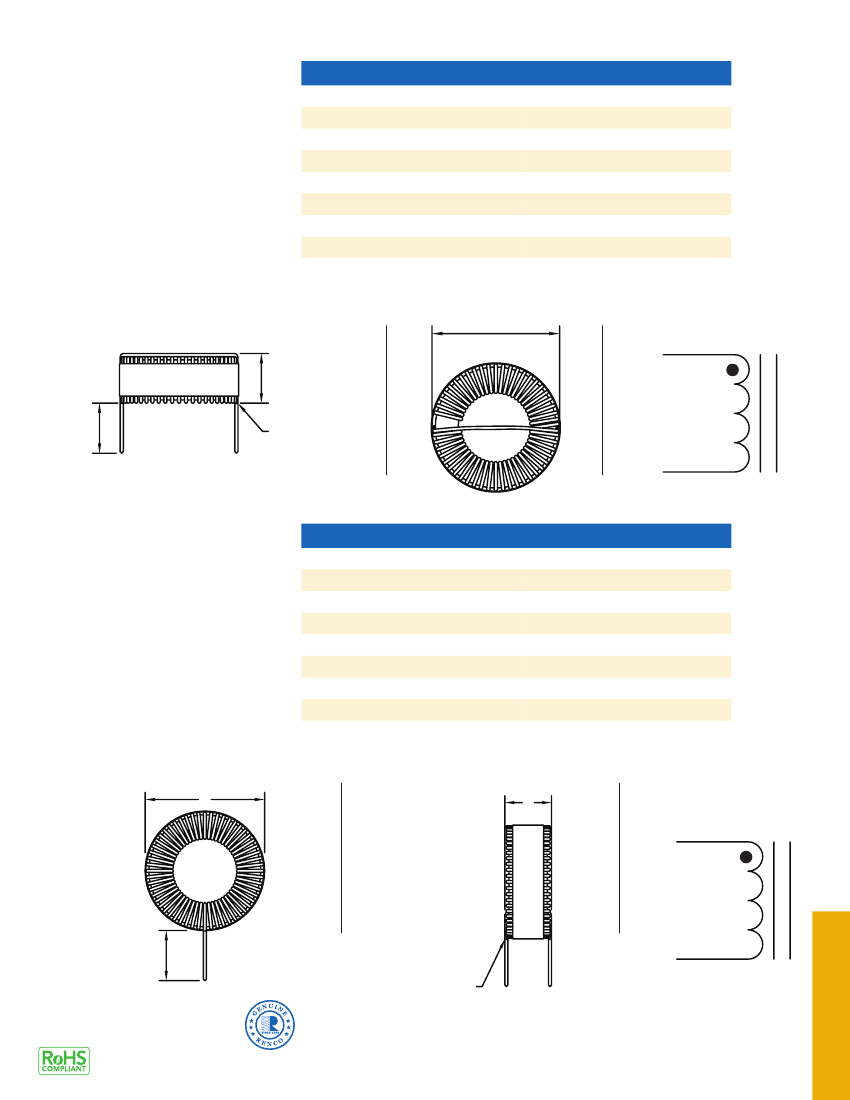

MECHANICAL DIMENSIONS

U.S. Standard (mm)

PART NUMBER

RL-6100-B1

RL-6100-B2

RL-6100-B3

RL-6100-B4

RL-6100-B5

RL-6100-B6

RL-6100-B7

A (MAX.)

0.700 (17.75)

0.950 (24.13)

1.100 (27.94)

1.350 (34.29)

1.550 (39.37)

1.825 (46.36)

2.100 (53.34)

B (MAX.)

0.780 (19.81)

1.250 (31.75)

1.430 (36.32)

1.700 (43.18)

2.000 (50.80)

C (MIN.)

0.130 (3.30)

0.250 (6.35)

D/H (MAX.)

0.600 (15.24)

0.800 (20.32)

0.900 (22.86)

1.200 (30.48)

1.500 (38.10)

E/I (MAX.)

0.260 (6.60)

0.410 (10.41)

0.610 (15.49)

0.710 (17.03)

0.910 (23.11)

F (MAX.)

0.625 (15.88)

0.850 (21.59)

0.925 (23.50)

1.125 (28.58)

G (MAX.)

0.038 (0.97)

0.650 (16.51) 0.025 (0.635)

RL-6100-B VERTICAL BASED MOUNTING

FRONT VIEW

SIDE VIEW

RECOMMENDED LAND PATTERN

SCHEMATIC

TOROIDS

RENCO ELECTRONICS INC.

420

595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certiﬁed

Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
