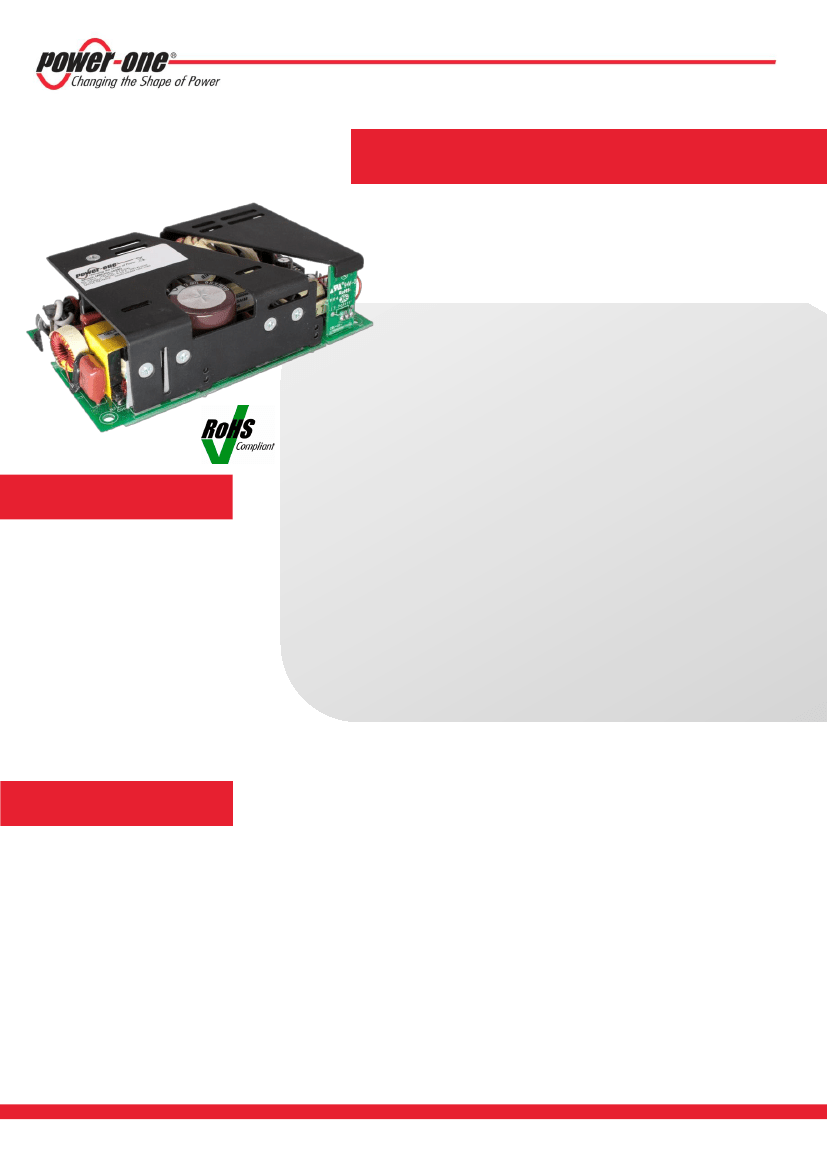

DATA SHEET
ABC201 SERIES 200W AC/DC
160 W convection cooled
-20 to 50 deg C full load operation
3” x 5“ x 1.5” (76.2 x 127 x 38.1 mm)
No minimum load required
12 V fan & 5 V standby outputs
Inhibit, Power Good and Fail signals
Conducted EMI EN 55022-B, FCC Part 15 Level B
ITE Safety Agency Approvals
RoHS Compliant
FEATURES
APPLICATIONS
Instrumentation
Lighting
Industrial Applications
Applied Computing
Renewable Energy
Test and Measurement
Robotics
Wireless Communications
BCD.00284_AA_May-31-2013
1
www.power-one.com
DATA SHEET
TECHNICAL DATA:
Input
PARAMETER
Input voltage range
Input frequency range
Input surge current
Safety ground leakage current
Input current
230 Vac (cold start)
230 Vac
120 Vac @ 200 W
230 Vac @ 200 W
DESCRIPTION/CONDITION
Universal Input
90 - 264 Vac
120 - 390 Vdc
47-63 Hz
65 A max.
300 μA max
2.4 A
1.2 A
Output
PARAMETER
Voltage Adjustment
Transient Response
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Set Point Tolerance
Rise Time
DESCRIPTION/CONDITION
V1
Main output 50 to 100% load change, 50 Hz,
50% duty cycle, 0.1A / uSec
V1
Rated output current
Automatic recovery
± 1%
< 100 mSec
± 3%
< 10%, recovery time < 5 mS
110 to 150% rated max
110% Typical
Ordering Information
PRODUCT FAMILY
ABC201-1005G
ABC201-1T05G
ABC201-1012G
ABC201-1T12G
ABC201-1015G
ABC201-1T15G
ABC201-1024G
ABC201-1T24G
ABC201-1030G
ABC201-1T30G
ABC201-1048G
ABC201-1T48G
Vfan (all models)
V s/b (all models)
VOLTS
MAX LOAD
MAX LOAD
(VDC) CONVECTION (1) 300 LFM (1)
5.0
5.0
12
12
15
15
24
24
30
30
48
48
12
5
26.0 A
26.0 A
13.33 A
13.33A
10.66 A
10.66 A
6.66 A
6.66 A
5.33A
5.33A
3.33 A
3.33 A
0.5 A
1.0 A
26 A
35 A
16.67 A
16.67 A
13.33 A
13.33 A
8.33 A
8.33 A
6.67A
6.67A
4.17 A
4.17 A
0.5 A
1.0 A
MINIMUM
LOAD (A)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
RIPPLE &
NOISE (4)
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
CONNECTOR
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
JST
Screw Terminal
TOTAL
REGULATION
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 2.5%
± 20%
± 5%
ABC201 Series
2
www.power-one.com
DATA SHEET
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
Combined power from main output, Vfan and Vs/b should not exceed total power rating.
Fan output tolerance is ± 20%. When V1 full load, Vfan needs 20 mA load to be within regulation specification. Peak
current for fan output is 1 A.
Ripple is 2% up to 20% load and less than 1% above 20% load. Output noise measurement is made with a 20 MHz
bandwidth using a 6” twisted pair, terminated with a 10 uF tantalum capacitor in parallel with a 0.1 uF ceramic capacitor.
Specifications are for nominal input voltage, 25° C and max load unless otherwise stated.
Air flow over length of supply recommended (either direction) for forced air rating.
Class 1 models have Earthing tab J4. Class 2 models (-2 suffix) have no Earthing tab.
Specifications may change without notice.
Warranty 2 years.
General Specifications
PARAMETER
Hold Up Time
MTBF
Switching Frequency
Isolation Voltage
Weight
DESCRIPTION/CONDITION
120 Vac
230 Vac
>200 kHrs
PFC converter variable 35 to 250 kHz, 90
kHz typical
Input to Output: Min 4242 Vdc
325 g (0.72 lbs)
10 mSec
10 mSec
Bellcore TR-332
Resonant converter variable 35 to 250 kHz,
90 kHz typical
Environmental
PARAMETER
Operating Temperature
Altitude
Storage Temperature
Humidity
Conducted emissions:
Radiated Emissions
Static Discharge
Harmonic Current
DESCRIPTION/CONDITION
-20 to 70° C
Operating 10,000 ft.
-40 to +70° C
95%
EN55022, FCC part 15 Level B
EN55022, FCC part 15 Level B
EN61000-4
EN61000-3-2, Class D
To be controlled in end system
2, 3, 4, 5 Level 3
Non-Condensing
See derating charts below
Non-operation 40,000 ft.
Signals
PARAMETER
Power Good Signal
Power Fail Signal
Remote ON / OFF
Remote Sense
DESCRIPTION/CONDITION
TTL signal goes high after main output is in regulation band. Delay is 0.1 to 0.3 sec.
TTL signal goes low 1 msec advance before output goes out of regulation due to mains failure
To turn-on power supply short J3 pin 4 to pin 6 (PSU is shipped in this configuration)
Compensates for 200 mV cable drop
Safety
PARAMETER
EN / UL / CSA
DESCRIPTION/CONDITION
EN60950-1+A12:2011, IEC60950-1 2
nd
+A1 2009, CSA-22.2 No 60950-01-07+ A1, UL60950-
1-2011
BCD.00284_AA_May-31-2013
3
www.power-one.com
DATA SHEET

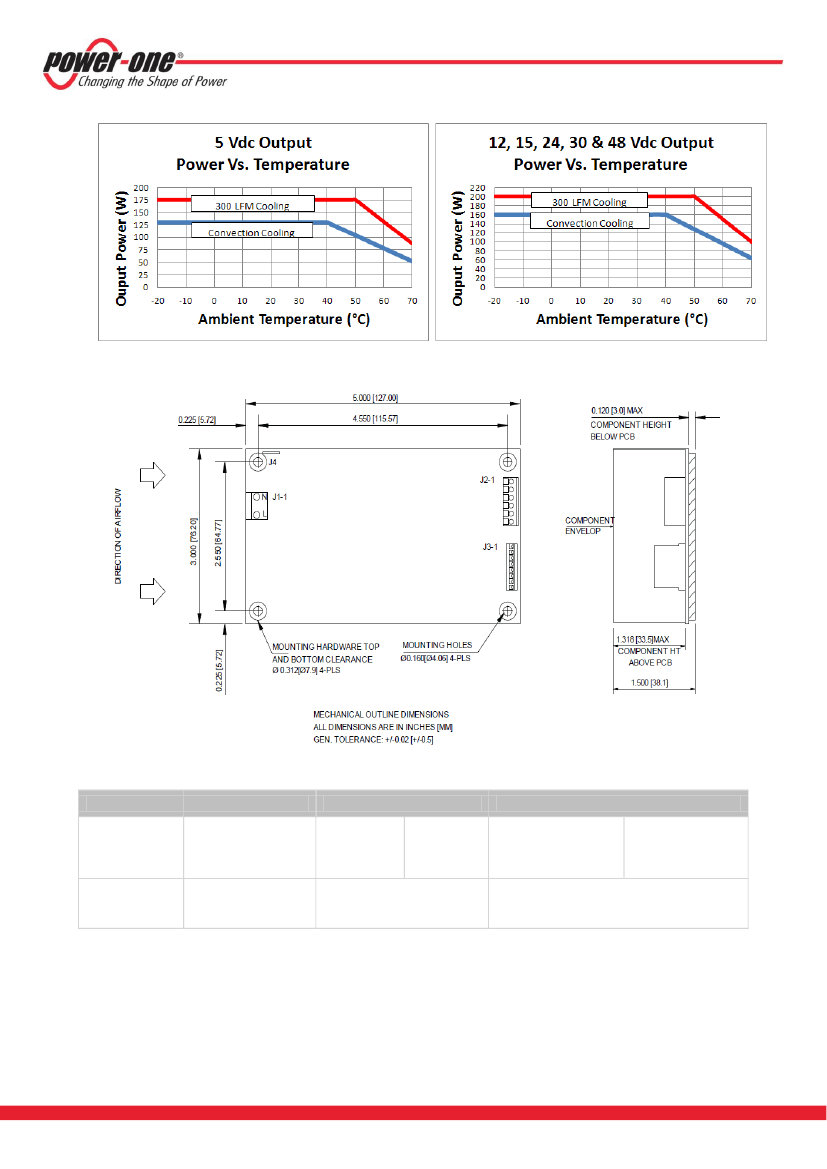

Figure 1 Output Power Vs. Temperature
Figure 2 Dimension Drawing (Top and Side View)
Mechanical
INPUT = J1
Pin 1: AC Neutral
Pin 2: AC Line
Mating Connector:
Molex: 09-50-3031
Pins: 08-50-0106
EARTHING TAB = J4
Molex: 19705-4301
DC OUTPUT = J2
Pin 1 = RTN
Pin 2 = RTN
Pin 3 = RTN
Pin 4 = Vout
Pin 5 = Vout
Pin 6 = Vout
SIGNALS & AUX POWER= J3
Pin 1 = + Remote Sense
Pin 2 = Vfan (+12 V)
Pin 3 = - Remote Sense
Pin 4 = Inhibit
Pin 5 = Vs/b (5 Vdc)
Pin 6 = Return (Signal)
Pin 7 =Power Fail
Pin 8 = Power Good
Mating Connector:
Molex: 190030001
Mating Connector:
JST VHR-6M, Pins: SVH-41T-
P1.1. AWG #20 to #16
Mating Connector:
Molex: 22-01-2087, Pins: 08-50-0113
Copyright © 2010 Power-One Inc. All rights reserved. Words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the
trademarks and service marks of Power-One Inc. in the U.S. and other countries. All other product or service names are the property of their respective holders.
Power-One products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Power-One reserves the
right to make changes to any products and services at any time without notice. Power-One assumes no responsibility or liability arising out of the application or use
of any information, product, or service described herein except as expressly agreed to in writing by Power-One Inc.
NUCLEAR AND MEDICAL APPLICATIONS
- Power-One products are not designed, intended for use in, or authorized for use as critical components in life sup-
port systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective divisional president of
Power-One, Inc.
TECHNICAL REVISIONS
- The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufac-
tured. Specifications are subject to change without notice.
ABC201 Series
4
www.power-one.com
