DSF8025SE24 datasheet, PDF - EEWORLD Datasheet

DSF8025SE24: DescriptionRectifier Diode, 1 Phase, 1 Element, 785A, 2400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size208KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

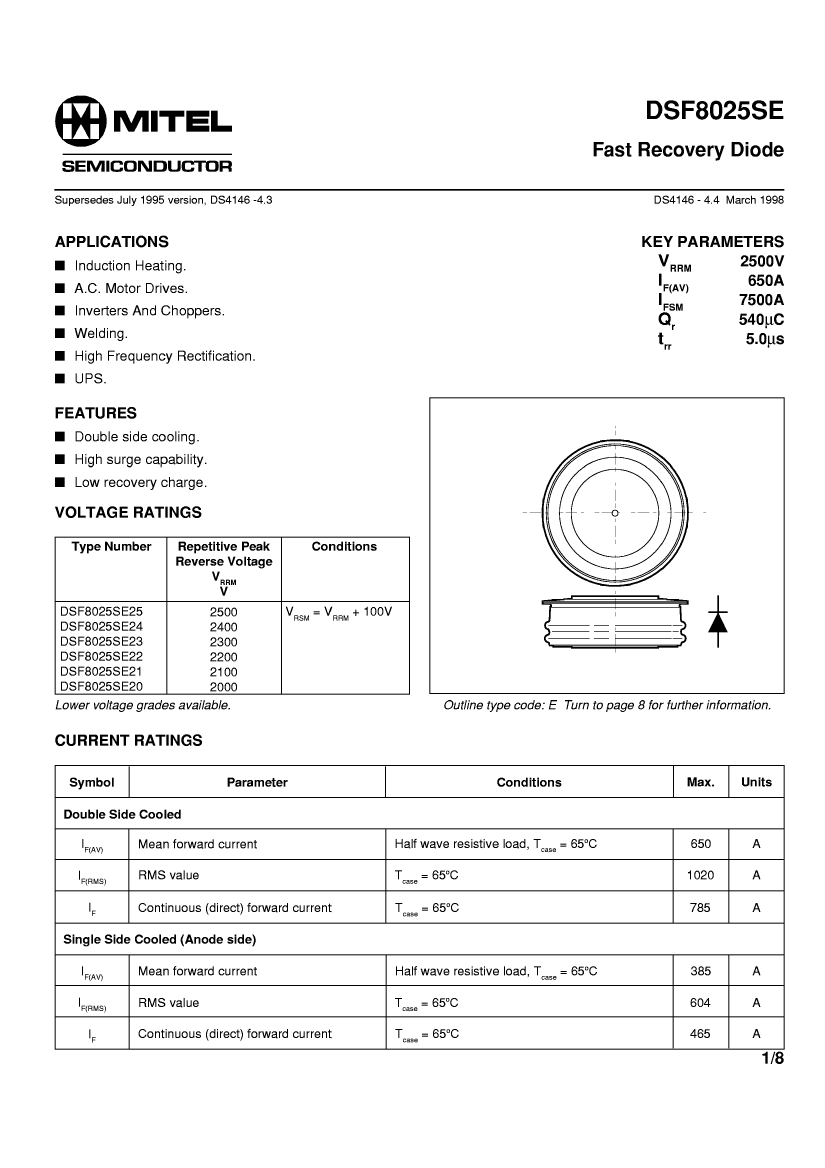

DSF8025SE24 Overview

Rectifier Diode, 1 Phase, 1 Element, 785A, 2400V V(RRM), Silicon,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE

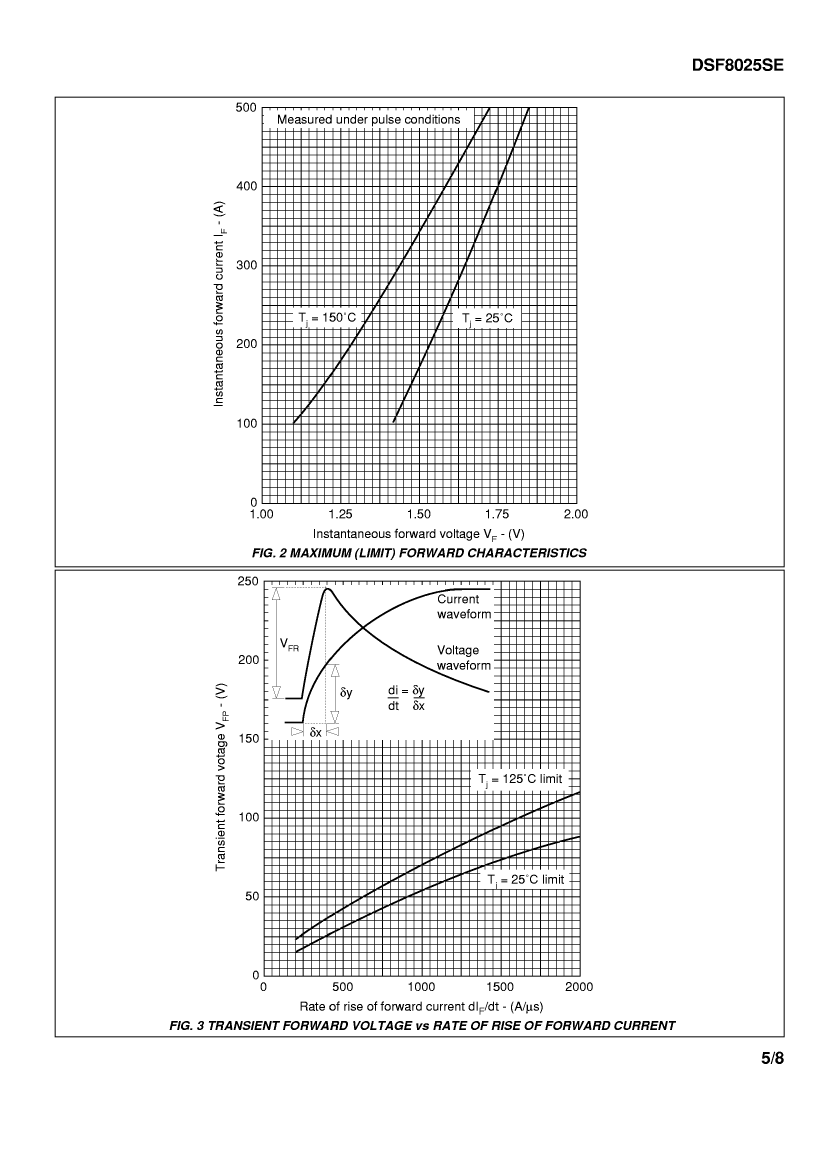

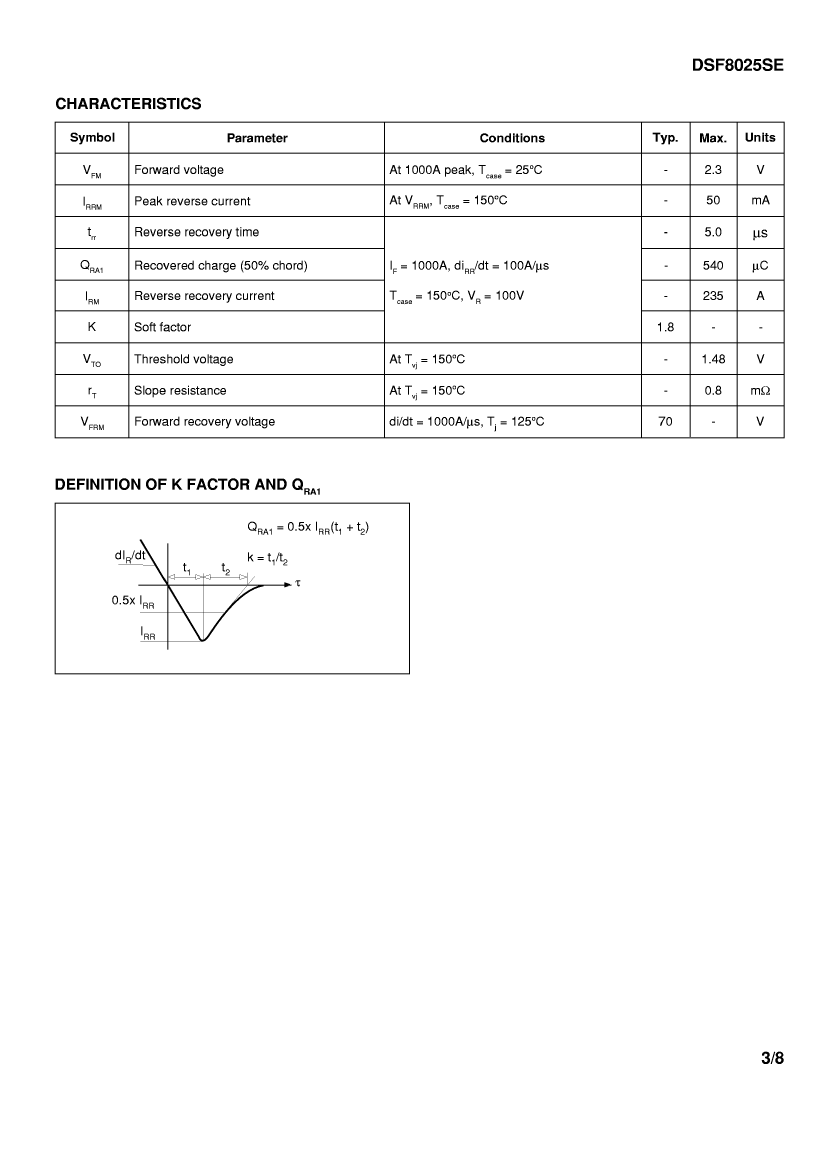

Maximum forward voltage (VF)	2.3 V

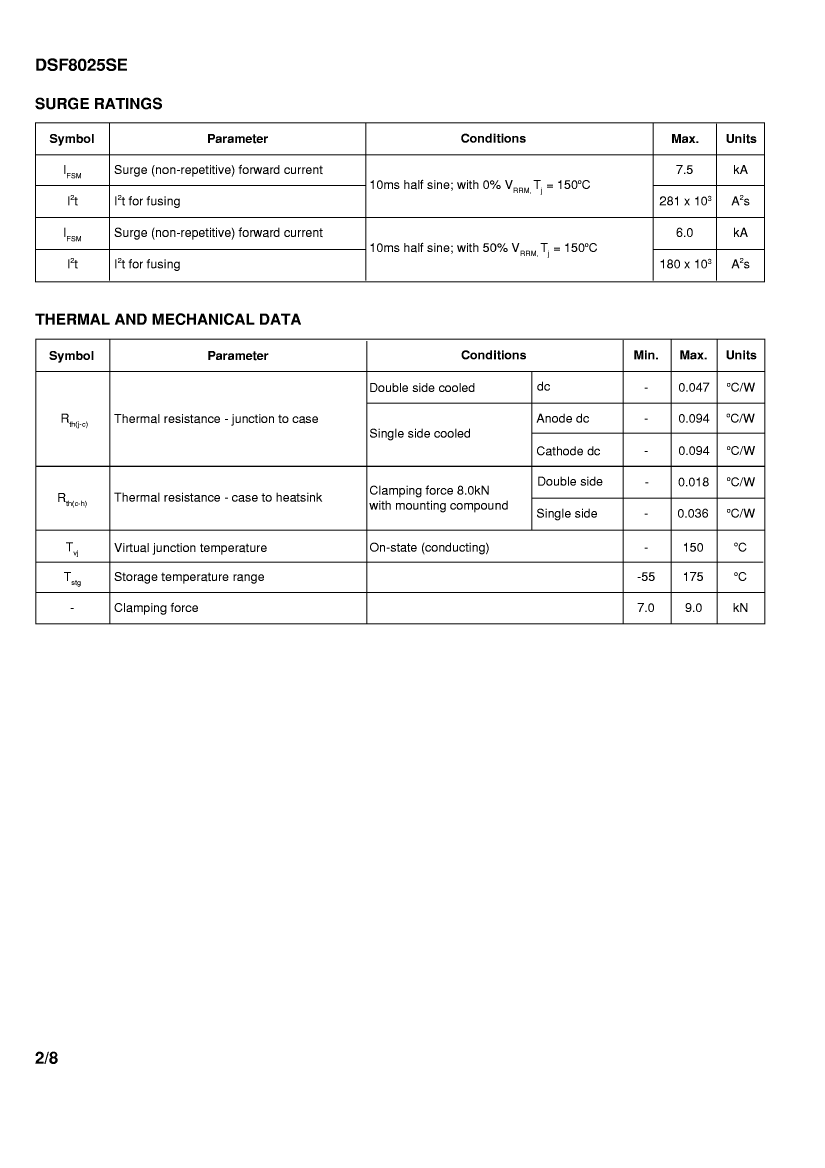

Maximum non-repetitive peak forward current	7500 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	650 A
Maximum repetitive peak reverse voltage	2400 V
surface mount	NO

	DSF8025SE24	DSF8025SE21	DSF8025SE23	DSF8025SE25	DSF8025SE22	DSF8025SE20
Description	Rectifier Diode, 1 Phase, 1 Element, 785A, 2400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 785A, 2100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 785A, 2300V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 785A, 2500V V(RRM), Silicon,	Rectifier Diode, 1 Element, 650A, 2200V V(RRM),	Rectifier Diode, 1 Element, 650A, 2000V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V
Maximum non-repetitive peak forward current	7500 A	7500 A	7500 A	7500 A	7500 A	7500 A
Number of components	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	650 A	650 A	650 A	650 A	650 A	650 A
Maximum repetitive peak reverse voltage	2400 V	2100 V	2300 V	2500 V	2200 V	2000 V
surface mount	NO	NO	NO	NO	NO	NO
