0.5mm and 1mm Pitch Connectors For FPC/FFC
FH12 Series
Flip-lock
sFeatures
1. Ease of Use and Space Savings
Only one finger or 6.9N (Newtons) of force is required
to lock Hirose’s rotational actuator (flip-lock) as
compared to using 2 fingers and 39.2N to close a
FFC/FPC connector from our competition.
The Flip-Lock design also allows customers to place 2
or more connectors side by side as there is no need to
waste additional board space for a side latch.
Rotating One-touch Mechanism
q
2. Strengthened Flip-lock Actuator
The standard Flip-Lock requires only 2.0mm height
above the board. A strengthened lock lever is available
which only requires an additional 0.4mm.
w
3. Supports Thin FPC (0.18mm)
Hirose does not require double-sided FPC to have any
additional strengthening plate or stiffener and can
therefore support a thickness of as little as 0.18mm +/-
connector housing. With our competitor’s conventional
products the housing walls support the contact force,
which does not provide for long-term reliability.
e
5. Prevention of Solder Bridge
Excess solder cavity absorbs excessive solder and
avoids solder bridging.
6. Three different assembly types
FH12 is offered in Top & Bottom Contact and Vertical
Mount and offered in both a 0.5mm contact pitch as
well as a 1.0mm contact pitch (bottom contact only).
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH12 Seriesq0.5mm and 1mm Pitch Connectors For FPC/FFC
sProduct
Specifications
Current rating: 0.5A DC(Note 1) Operating Temperature Range:_40 to +85ç (Note 2) Storage Temperature Range:_10 to +50ç (Note 3)
Note 1: When passing the current through all of the contacts,use 70% of the current rating.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers nonconducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series.
Contact us for the drawings and specifications for a specific part number shown.
sMaterial
Part
Insulator
Actuator
Contact
Metal Fittings
Material
Polyamide, LCP(60 pos.)
PPS
Phosphor bronze
Brass
Finish
Color : Beige
Color : Dark brown
Gold plated
Remarks
UL94V-0
–––––––
Tin
plated
sOrdering
Information
*
FH 12 A - 10 (4) - S A - 0.5 SH (*
*
)
q
w
e
r
t
y
u
i
o
!0
q
Series Name
: FH
w
Series No.
: 12
e
Blank : standard type
A : Top contact type
S : Type with strengthed flip-lock actuator
F : Type with 0.18mm FPC End Thickness
r
Standard type : Number of contacts
Eccentric type : Number of contacts in 0.5mm housing
t
Standard type : Blank
Eccentric type : Number of contacts
y
Contact alignment: Single
u
Eccentric direction:
Blank : standard type
A : Eccentric type
i
Contacts Pitch : 0.5mm, 1mm
o
Contact type
SH : SMT horizontal mounting type
SV : SMT vertical mounting type
!0
Plating specification
(54) : Selective gold plated
(55) : Gold plated
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH12 Seriesq0.5mm and 1mm Pitch Connectors For FPC/FFC
sSeries
Configuration
Pitch
Bottom Contact Type
Top Contact Type
Vertical mounting Type
FPC conductive
surface
FPC conductive surface
(bottom side)
FH12-
**
S-0.5SH
P.4
0.5mm
Number of contacts 6, 8, 10, 11, 12, 13,
14, 15, 16, 17, 18, 19,
20, 22, 24, 25, 26, 28,
30, 32, 33, 34, 35, 36,
40, 45, 50, 53
Type with Strengthened Lock Lever
FH12S-
**
S-0.5SH
P.5
Number of contacts 30, 40, 45, 50, 53
Type with 0.18mm FPC End Thickness
FH12A-
**
S-0.5SH
FH12F-
**
S-0.5SH
P.6
Number of contacts 6, 8, 10, 12, 13, 14, 15,
16, 18, 20, 22, 24, 25,
26, 28, 30, 32, 34, 36, 40
P.7
FH12-
**
S-0.5SV
P.8
Number of contacts 10, 12 ,15, 16, 18, 20,
22, 24, 26, 28, 29, 30,
32, 33, 34, 36, 40, 42,
45, 50
Number of contacts 10, 12, 13, 15, 16, 17,
18, 20, 22, 24, 26, 30,
32, 33, 34, 36, 40, 45,
49, 50, 60
FPC conductive surface
(bottom side)
1mm
Standard
FH12-
**
S-1SH
Standard
Number of contacts
5, 6, 7, 8, 9, 11,
P.9
Eccentric
FH12-
**
(**)
SA-1SH
12,16,17,22,26
Eccentric
Number of contacts
4, 6, 8, 10, 11,
FH12-
**
S-1SV
24
P.10
Number of contacts
6, 7, 8, 16, 20, 22,
14, 19, 24
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH12 Seriesq0.5mm and 1mm Pitch Connectors For FPC/FFC

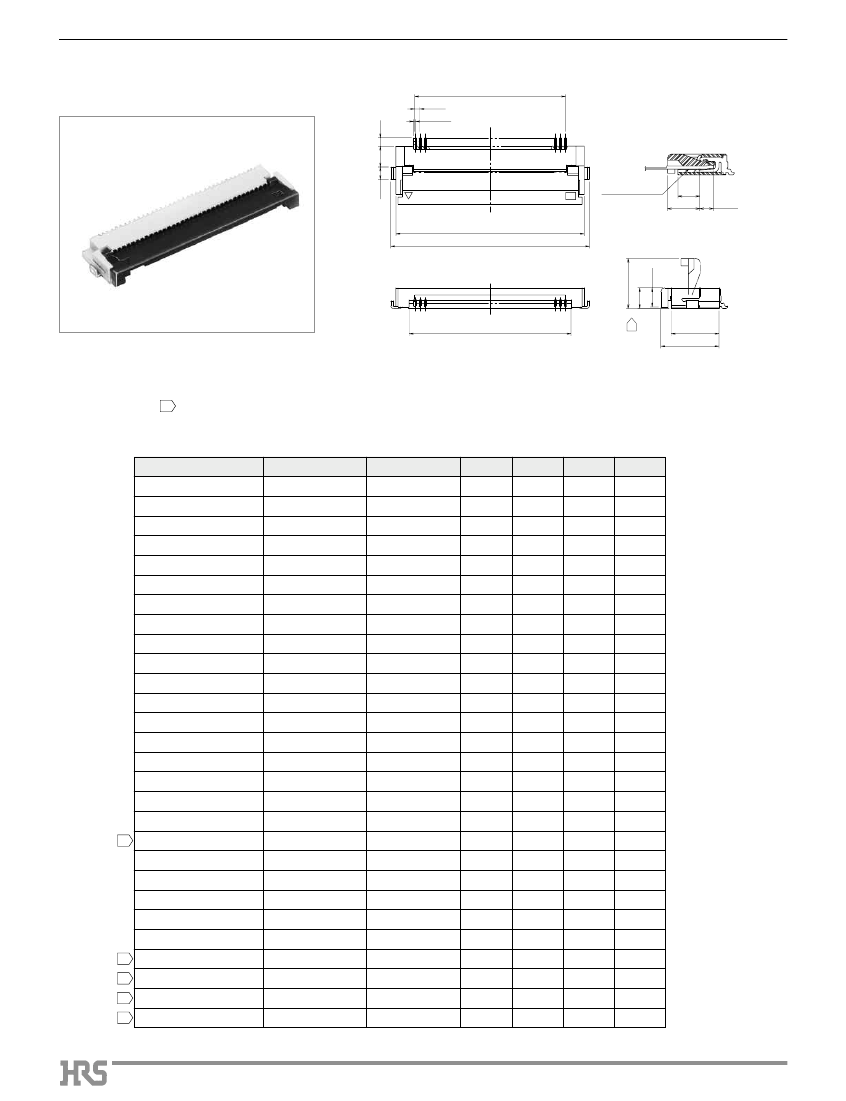

s0.5mm
Pitch Bottom Contact Type
0.8
A
0.5
(0.2)
Mated Cross-sectional Diagram
1.2
2
FPC/FFC Contact Surface
(2.1)
(3.1)
(1.3)
B
C
(4.8)
D
5
2
1.85
4.6
5.6
Note 1
Note 2
Note 3
Note 4
Note 5
: The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
: Packaged on tape and reel only. Check packaging specification.
: Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
: After reflow, the terminal plating may change color, however this does not represent a quality issue.
: If there is no problem with the connector height, we recommend the type with the strengthened Flip-
lock actuator (FH12S-*S-0.5SH). Standard type connector height: 2 mm Connector height of type with
strengthened Flip-lock actuator: 2.4 mm
Unit:mm
CL No.
586-0582-5-**
586-0744-5-**
586-0522-3-**
586-0600-5-**
586-0704-0-**
586-0549-0-**
586-0533-0-**
586-0523-6-**
586-0531-4-**
586-0606-1-**
586-0530-1-**
586-0534-2-**
586-0524-9-**
586-0532-7-**
586-0521-0-**
586-0692-3-**
586-0576-2-**
586-0612-4-**
586-0525-1-**
586-0681-7-**
586-0520-8-**
586-0617-8-**
586-0740-4-**
586-0526-4-**
586-0527-7-**
586-0528-0-**
586-0529-2-**
Number of Contacts
6
8
10
11
12
13
14
15
16
17
18
19
20
22
24
25
26
28
30
32
33
34
35
36
40
45
50
A
2.5
3.5
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.5
11.5
12.0
12.5
13.5
14.5
15.5
16.0
16.5
17.0
17.5
19.5
22.0
24.5
B
06.1
07.1
08.1
08.6
09.1
09.6
10.1
10.6
11.1
11.6
12.1
12.6
13.1
14.1
15.1
15.6
16.1
17.1
18.1
19.1
19.6
20.1
20.6
21.1
23.1
25.6
28.1
C
7.1
8.1
9.1
9.6
10.1
10.6
11.1
11.6
12.1
12.6
13.1
13.6
14.1
15.1
16.1
16.6
17.1
18.1
19.1
20.1
20.6
21.1
21.6
22.1
24.1
26.6
29.1
D
3.57
4.57
5.57
6.07
6.57
7.07
7.57
8.07
8.57
9.07
9.57
10.07
10.57
11.57
12.57
13.07
13.57
14.57
15.57
16.57
17.07
17.57
18.07
18.57
20.57
23.07
25.57
27.07
Part Number
FH12-6S-0.5SH(**)
FH12-8S-0.5SH(**)
FH12-10S-0.5SH(**)
FH12-11S-0.5SH(**)
FH12-12S-0.5SH(**)
FH12-13S-0.5SH(**)
FH12-14S-0.5SH(**)
FH12-15S-0.5SH(**)
FH12-16S-0.5SH(**)
FH12-17S-0.5SH(**)
FH12-18S-0.5SH(**)
FH12-19S-0.5SH(**)
FH12-20S-0.5SH(**)
FH12-22S-0.5SH(**)
FH12-24S-0.5SH(**)
FH12-25S-0.5SH(**)
FH12-26S-0.5SH(**)
FH12-28S-0.5SH(**)
Note 5
FH12-30S-0.5SH(**)
FH12-32S-0.5SH(**)
FH12-33S-0.5SH(**)
FH12-34S-0.5SH(**)
FH12-35S-0.5SH(**)
FH12-36S-0.5SH(**)
Note 5
Note 5
Note 5
Note 5
FH12-40S-0.5SH(**)
FH12-45S-0.5SH(**)
FH12-50S-0.5SH(**)
29.6
26.0
53
30.6
FH12-53S-0.5SH(**) 586-0595-7-**
Note 1 : Embossed tape reel packaging (2,000 pieces/reel). Order by number of reels.
Note 2 : (**):Specification. Refer to ordering information.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH12 Seriesq0.5mm and 1mm Pitch Connectors For FPC/FFC

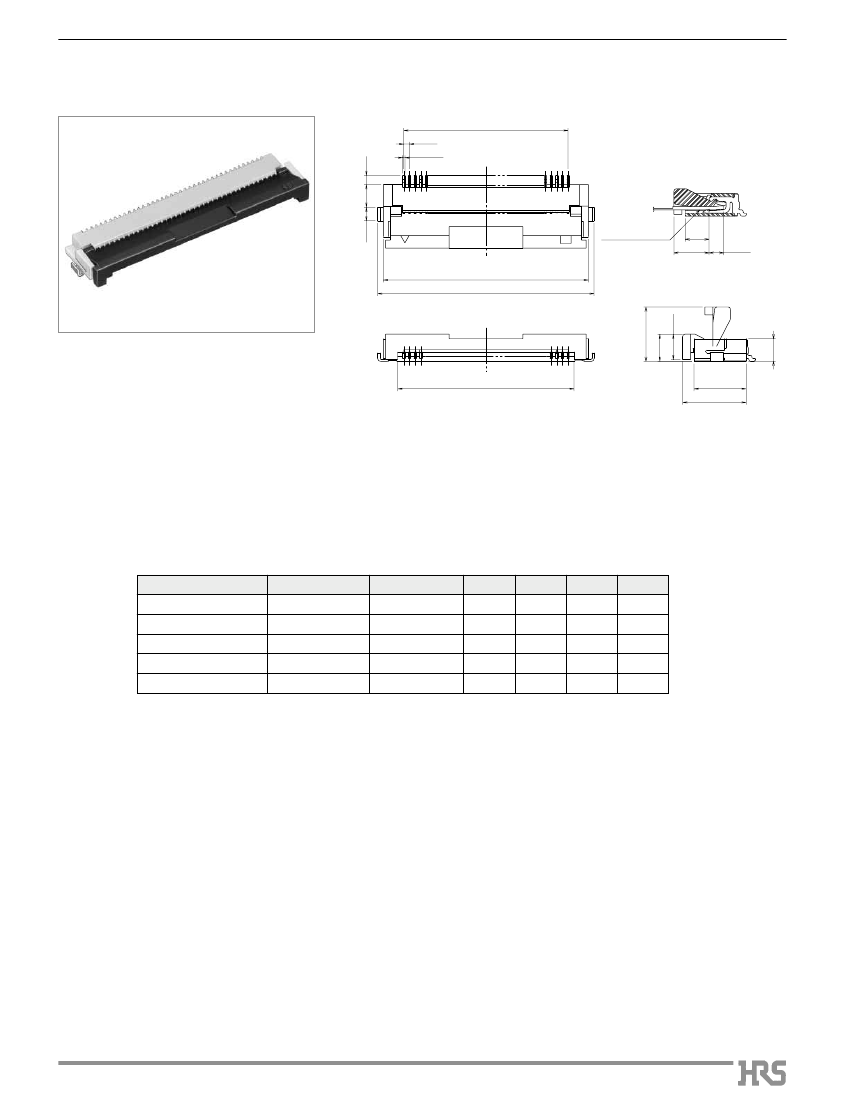

s0.5mm
Pitch Bottom Contact Type with Strengthened Flip-lock Actuator
A
0.5
( 0.2 )
Mated Cross-sectional Diagram
1.2
2
0.8
FPC/FFC Contact Surface
( 2.1)
( 3.1 )
(1.3 )
B
C
2.25
2.4
( 4.8 )
D
4.6
5.6
Note 1
Note 2
Note 3
Note 4
: The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
: Packaged on tape and reel only. Check packaging specification.
: Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
: After reflow, the terminal plating may change color, however this does not represent a quality issue.
