40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 3 GHz
TECHNICAL DATA SHEET
PE7386-40
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 3 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
N Male
N Female
Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 3
50
40
10
1.2:1
DC to 3
1.2:1
± 0.8
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
.
-55 to +125
3.268 [83.01]
1.496 [38]
0.265 [120.2]
Weight, lbs [g]
Connector 1
Type
Contact Material and Plating
Body Material and Plating
N Male
Brass, Gold
Brass, Nickel
Connector 2
Type
Contact Material and Plating
Body Material and Plating
N Female
Beryllium Copper, Gold
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated
To 10 Watts Up To 3 GHz PE7386-40
PE7386-40 REV
1
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 3 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE7386-40
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To 10 Watts Up To 3 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 3 GHz PE7386-40
URL:
http://www.pasternack.com/40db-fixed-n-male-n-female-10-watts-attenuator-pe7386-40-p.aspx
PE7386-40 REV
2
PE7386-40

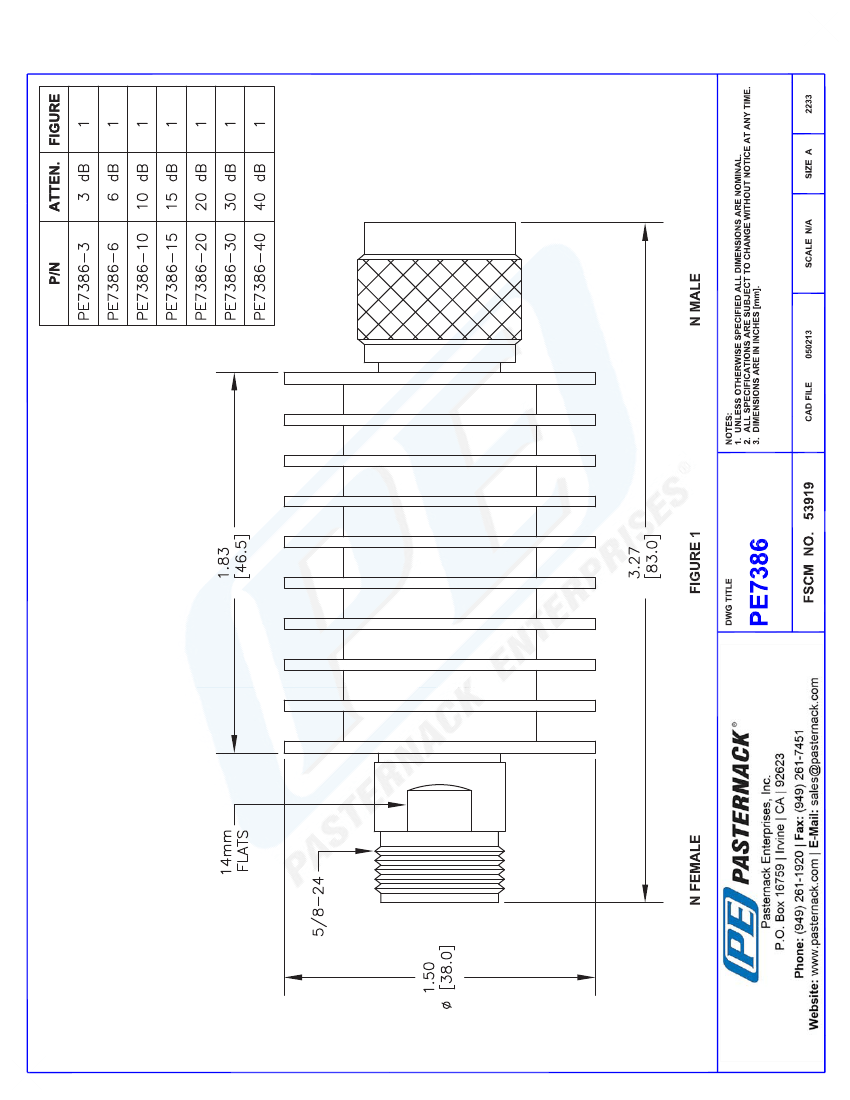

CAD Drawing
40 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 3 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE7386-40 REV
3
