HM2P07PNW1P5GC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P07PNW1P5GC

HM2P07PNW1P5GC: DescriptionBoard Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size256KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P07PNW1P5GC Overview

Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal

HM2P07PNW1P5GC Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	100
UL Flammability Code	94V-0

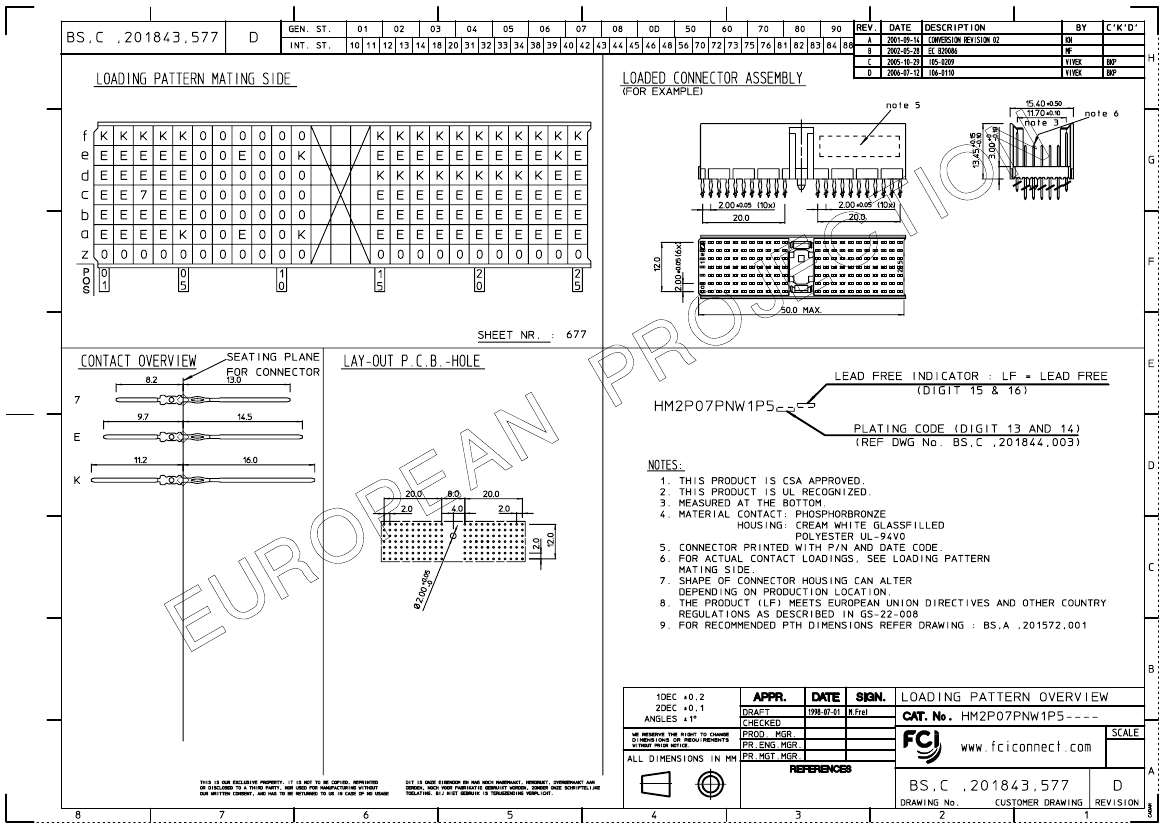

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Dec 01, 2007

HM2P07PNW1P5GC Related Products

	HM2P07PNW1P5GC	HM2P07PNW1P5GCLF	HM2P07PNW1P5GFLF	HM2P07PNW1P5GF	HM2P07PNW1P5GL	HM2P07PNW1P5GLLF
Description	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
Other features	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	100	100	100	100	100	100
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-
