BL-C2336M datasheet, PDF - EEWORLD Datasheet

BL-C2336M: DescriptionSingle Color LED, Green, Water Clear, T-1 3/4, 5mm, L-125, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size237KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-C2336M Overview

Single Color LED, Green, Water Clear, T-1 3/4, 5mm, L-125, 2 PIN

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-125, 2 PIN
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	14.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.7 mm
method of packing	BULK
peak wavelength	568 nm
shape	CYLINDRICAL
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	125 deg

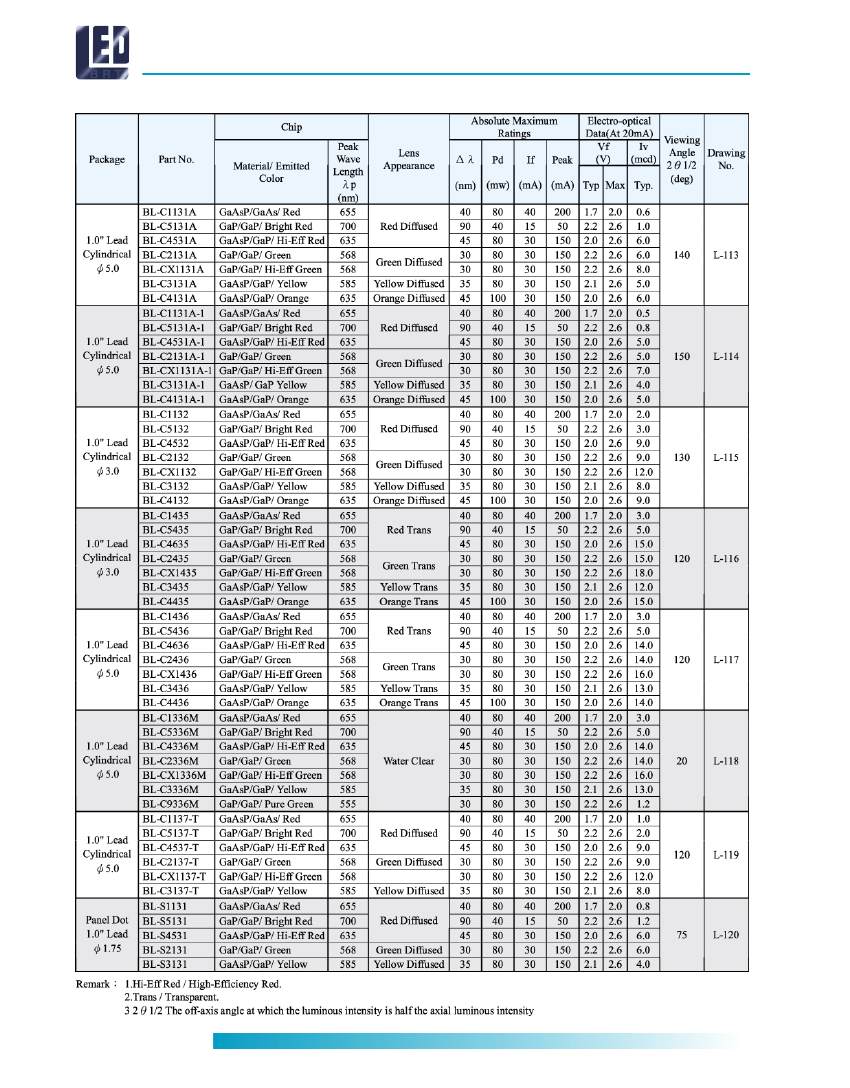

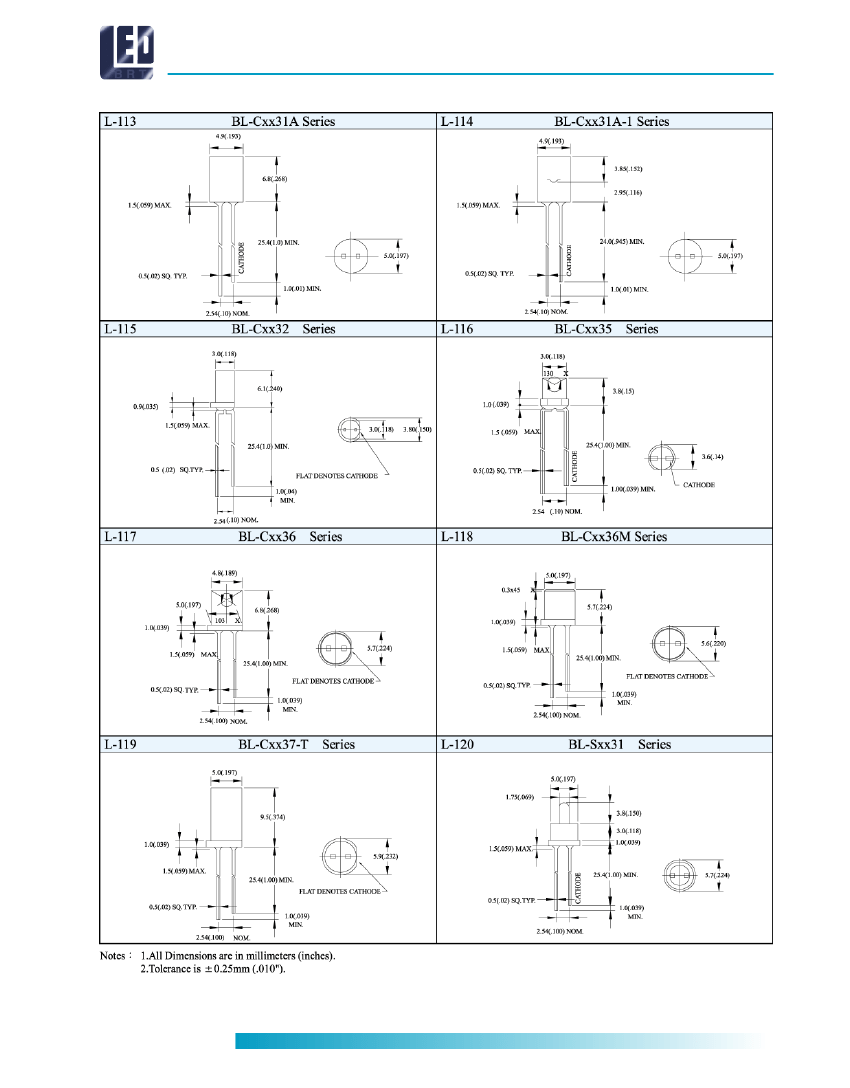

Standard LED Lamps

BL-C, BL-S Series

Cylindrical & Tower Types

AMERICAN BRIGHT

70

w w w. a m e r i c a n b r i g h t l e d . c o m

.

	BL-C2336M	BL-C4131A-1	BL-CX1131A	BL-C9336M
Description	Single Color LED, Green, Water Clear, T-1 3/4, 5mm, L-125, 2 PIN	Single Color LED, Orange, Diffused, T-1 3/4, 4.9mm, L-121, 2 PIN	Single Color LED, High Efficiency Green, Diffused Green, T-1 3/4, 4.9mm, L-120, 2 PIN	Single Color LED, Pure Green, Water Clear, T-1 3/4, 5mm, L-125, 2 PIN
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	L-125, 2 PIN	L-121, 2 PIN	L-120, 2 PIN	L-125, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
color	GREEN	ORANGE	HIGH EFFICIENCY GREEN	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	DIFFUSED	DIFFUSED GREEN	WATER CLEAR
Nominal luminous intensity	14.0 mcd	5.0 mcd	8.0 mcd	1.2 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.7 mm	6.75 mm	6.8 mm	5.7 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	568 nm	635 nm	568 nm	555 nm
shape	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
size	5 mm	4.9 mm	4.9 mm	5 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	125 deg	150 deg	140 deg	125 deg
