DAC06BX/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC06BX/883

DAC06BX/883: DescriptionD/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,; CategoryAnalog mixed-signal IC converter; File Size264KB，7 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

DAC06BX/883 Overview

D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,

DAC06BX/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
Maximum linear error (EL)	0.3%
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

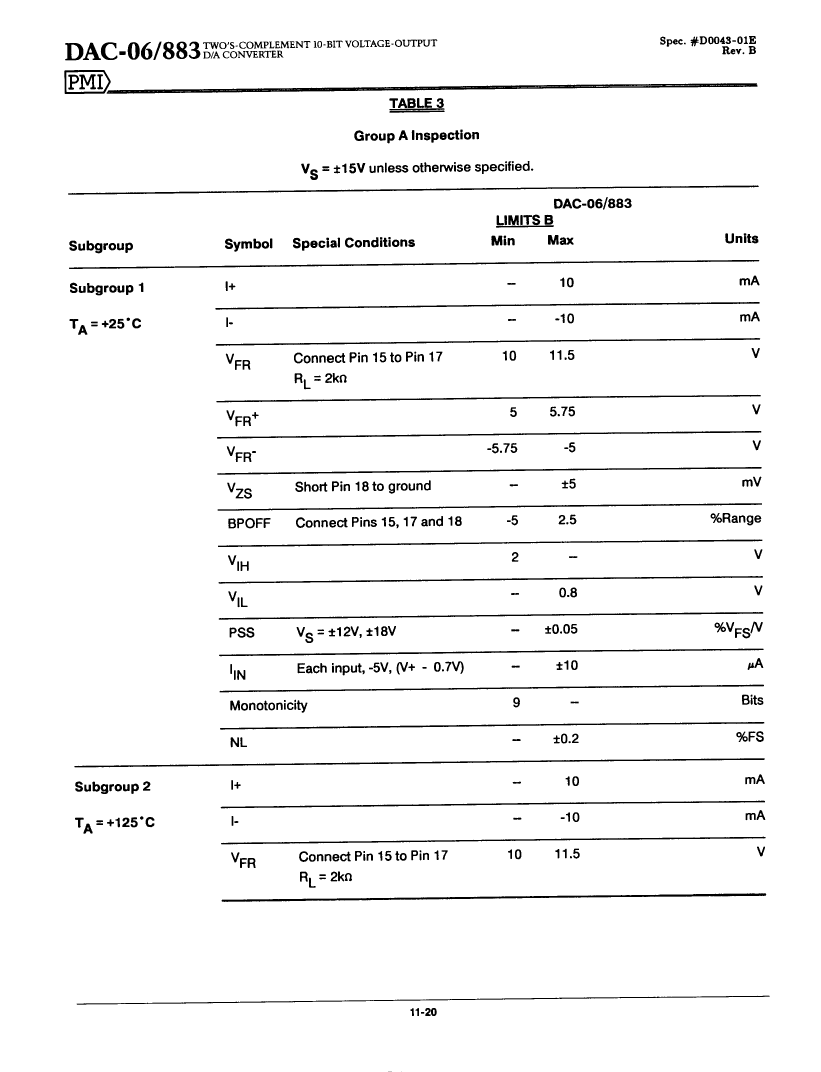

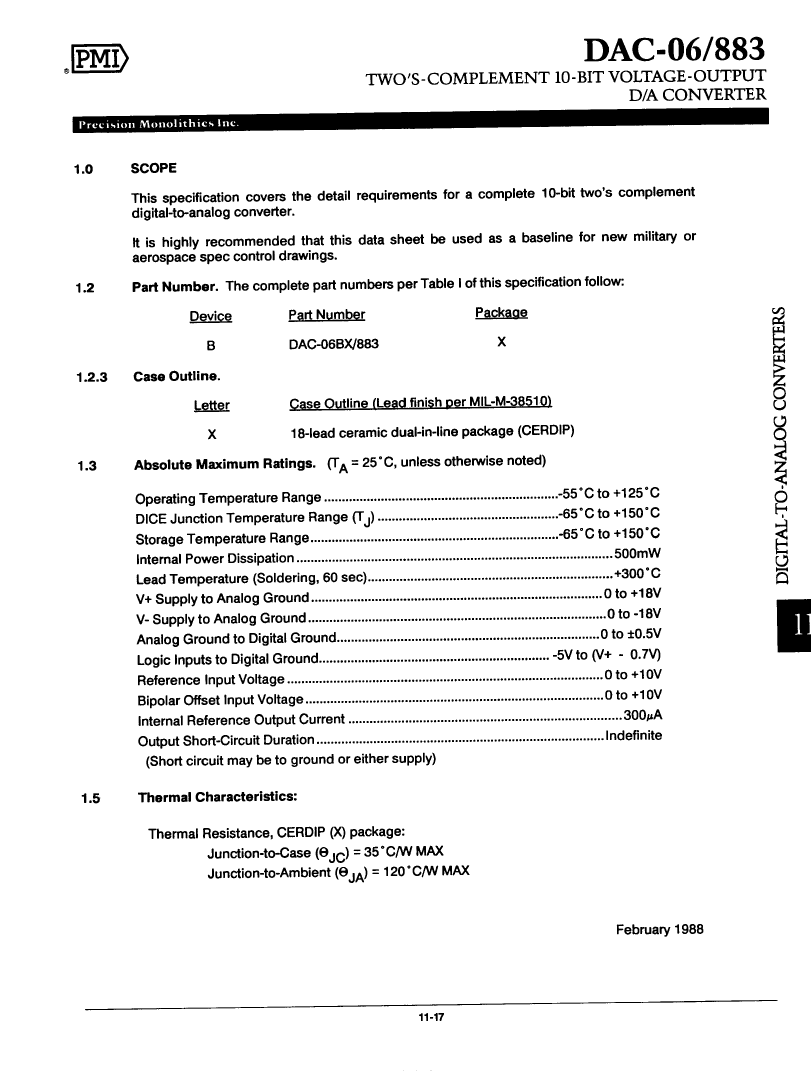

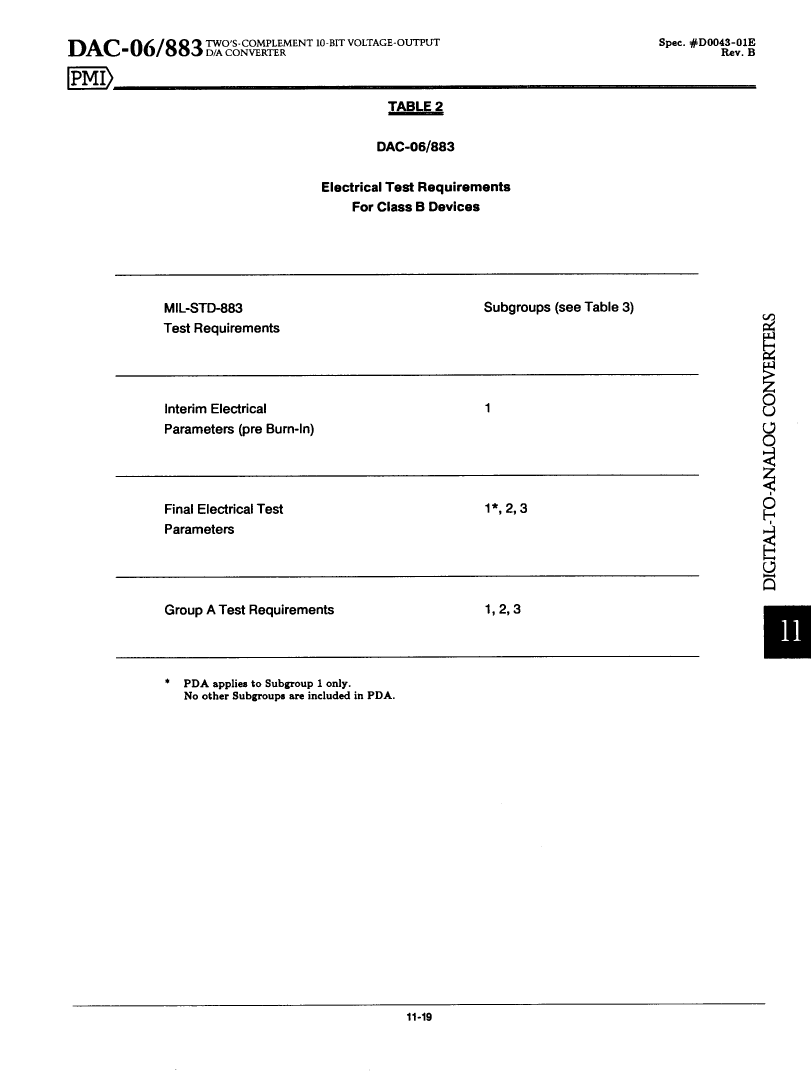

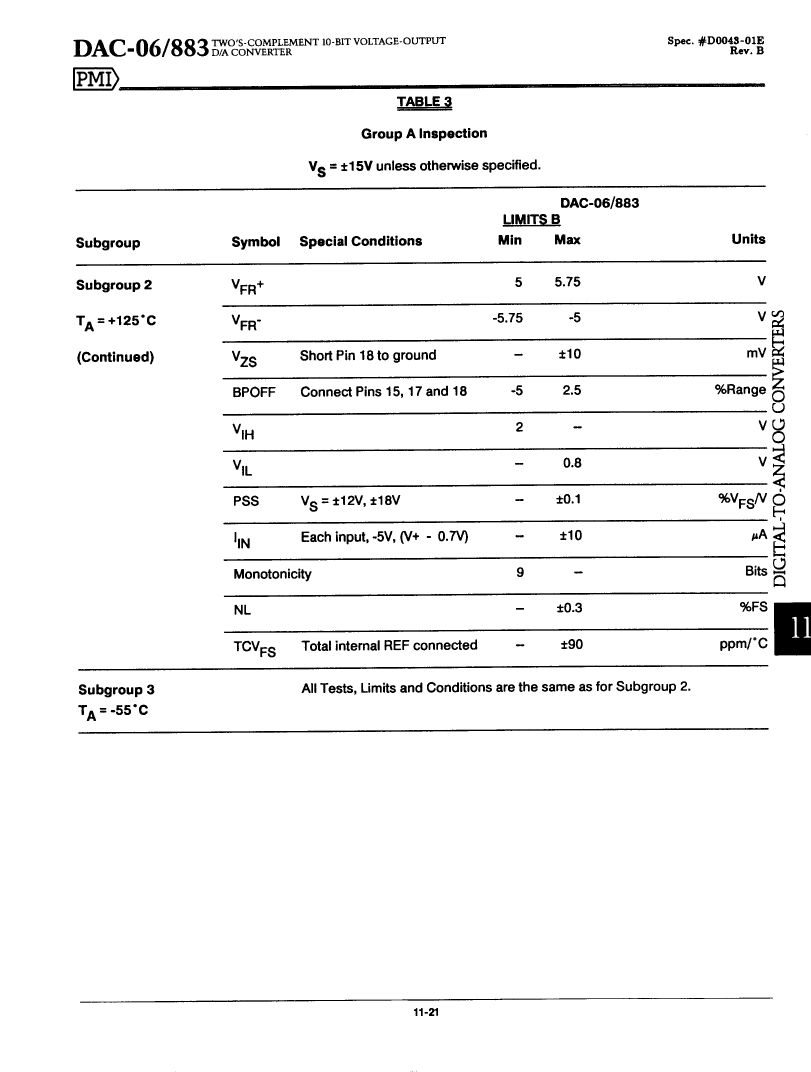

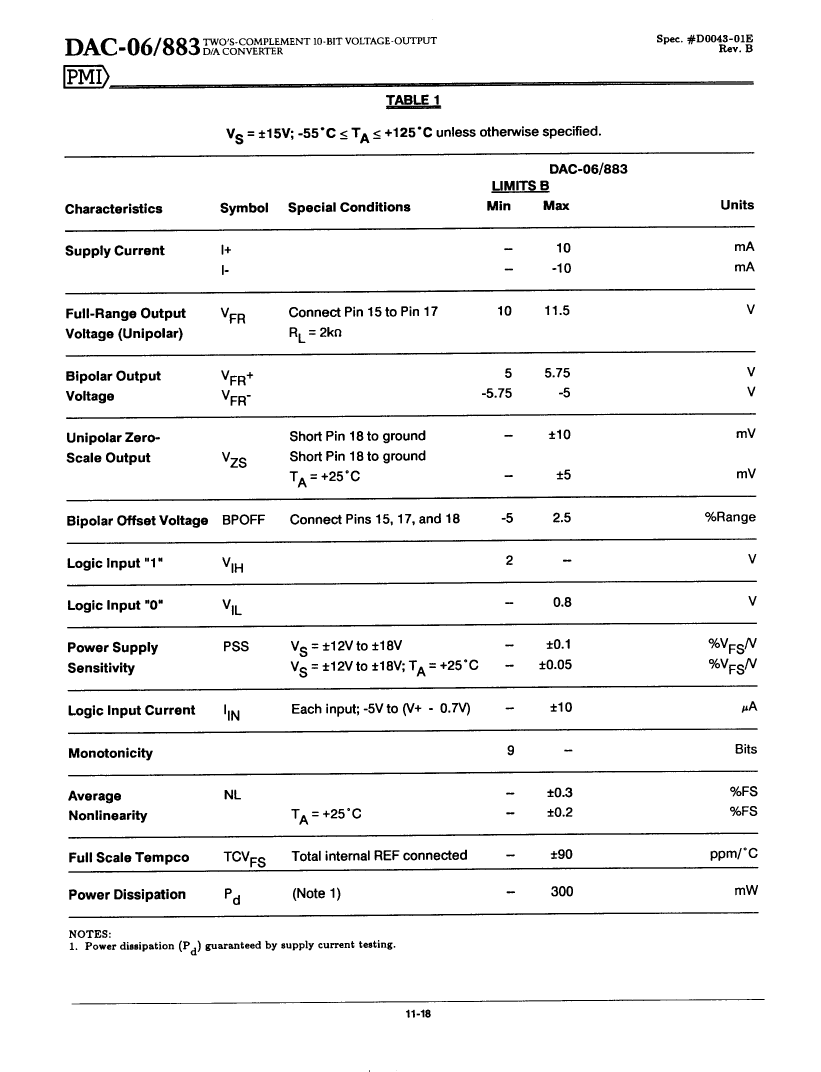

Preview

Download Datasheet

View All

DAC06BX/883 Related Products

	DAC06BX/883	DAC06EX	DAC06CX/883	DAC06CX	DAC06BX	DAC06FX	DAC06GX
Description	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,	D/A Converter, 10-Bit, 1 Func, Bipolar, CDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
JESD-30 code	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.3%	0.2%	0.5%	0.5%	0.3%	0.3%	0.5%
Number of digits	10	10	10	10	10	10	10
Number of functions	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
Maximum operating temperature	125 °C	70 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
