DAC356LPB-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC356LPB-12

DAC356LPB-12: DescriptionD/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 50us Settling Time, MDIP18, HERMETIC SEALED, METAL PACKAGE-18; CategoryAnalog mixed-signal IC converter; File Size104KB，2 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

DAC356LPB-12 Overview

D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 50us Settling Time, MDIP18, HERMETIC SEALED, METAL PACKAGE-18

DAC356LPB-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	HERMETIC SEALED, METAL PACKAGE-18
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	R-MDIP-T18
JESD-609 code	e0
length	25.197 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum stabilization time	50 µs
Nominal settling time (tstl)	50 µs
Maximum slew rate	3 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

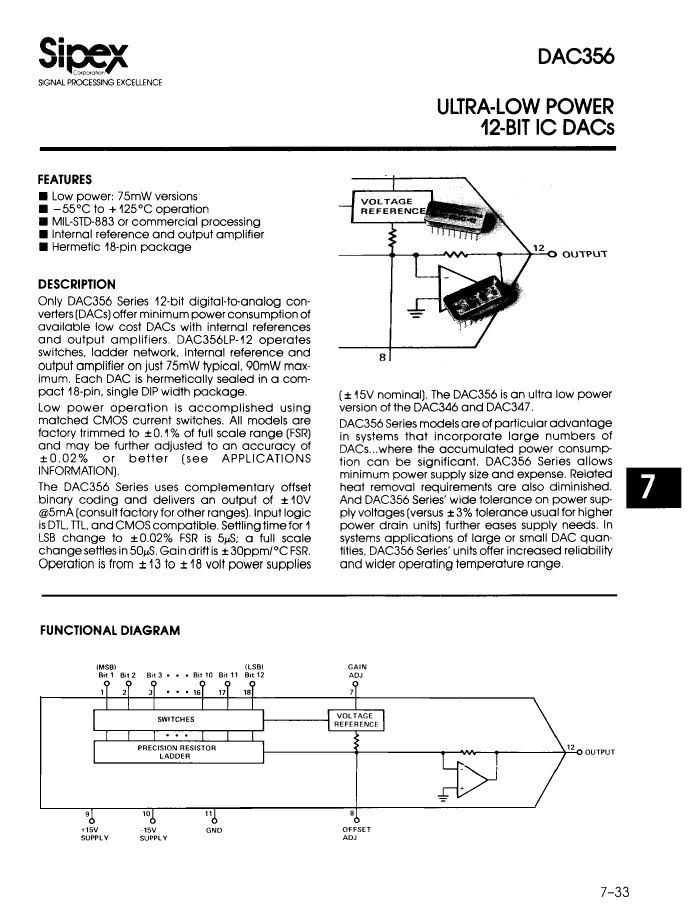

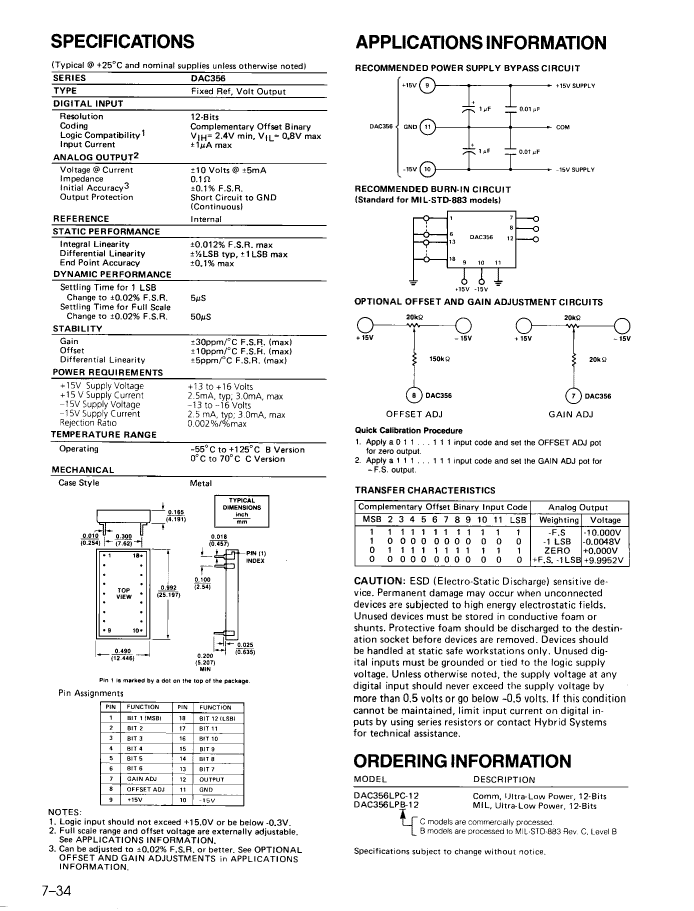

Preview

Download Datasheet

View All

DAC356LPB-12 Related Products

	DAC356LPB-12	DAC356LPC-12
Description	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 50us Settling Time, MDIP18, HERMETIC SEALED, METAL PACKAGE-18	D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 50us Settling Time, MDIP18, HERMETIC SEALED, METAL PACKAGE-18
Is it Rohs certified?	incompatible	incompatible
Maker	SIPEX	SIPEX
package instruction	HERMETIC SEALED, METAL PACKAGE-18	HERMETIC SEALED, METAL PACKAGE-18
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	R-MDIP-T18	R-MDIP-T18
JESD-609 code	e0	e0
length	25.197 mm	25.197 mm
Maximum linear error (EL)	0.012%	0.012%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	125 °C	70 °C
Package body material	METAL	METAL
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum stabilization time	50 µs	50 µs
Nominal settling time (tstl)	50 µs	50 µs
Maximum slew rate	3 mA	3 mA
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
