Datasheet> All Categories > Discrete semiconductor> BAV99DW

Preview

BAV99DW: Description0.215A,75V,Surface Mount Small Signal Switching Diodes, Two Duals,Series, 75V, 0.215A, 1.25V, 0.15A, 2A, 2.5uA; CategoryDiscrete semiconductor; File Size239KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BAV99DW Overview

0.215A,75V,Surface Mount Small Signal Switching Diodes, Two Duals,Series, 75V, 0.215A, 1.25V, 0.15A, 2A, 2.5uA

BAV99DW Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOT-363
package instruction	R-PDSO-G6
Reach Compliance Code	unknown
application	FAST RECOVERY
Minimum breakdown voltage	75 V
Configuration	2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G6
Maximum non-repetitive peak forward current	2 A
Number of components	4
Phase	1
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.215 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	75 V
Maximum reverse current	2.5 µA
Maximum reverse recovery time	0.004 µs
Reverse test voltage	75 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
VRRM (V) max	75
IF (A) max	0.215
VF (V) max	1.25
Condition1_IF (A)	0.15
IFSM (A) max	2
IR (uA) max	2.5
Condition2_VR (V)	75
trr (ns) max	4
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
MSL level	1
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99

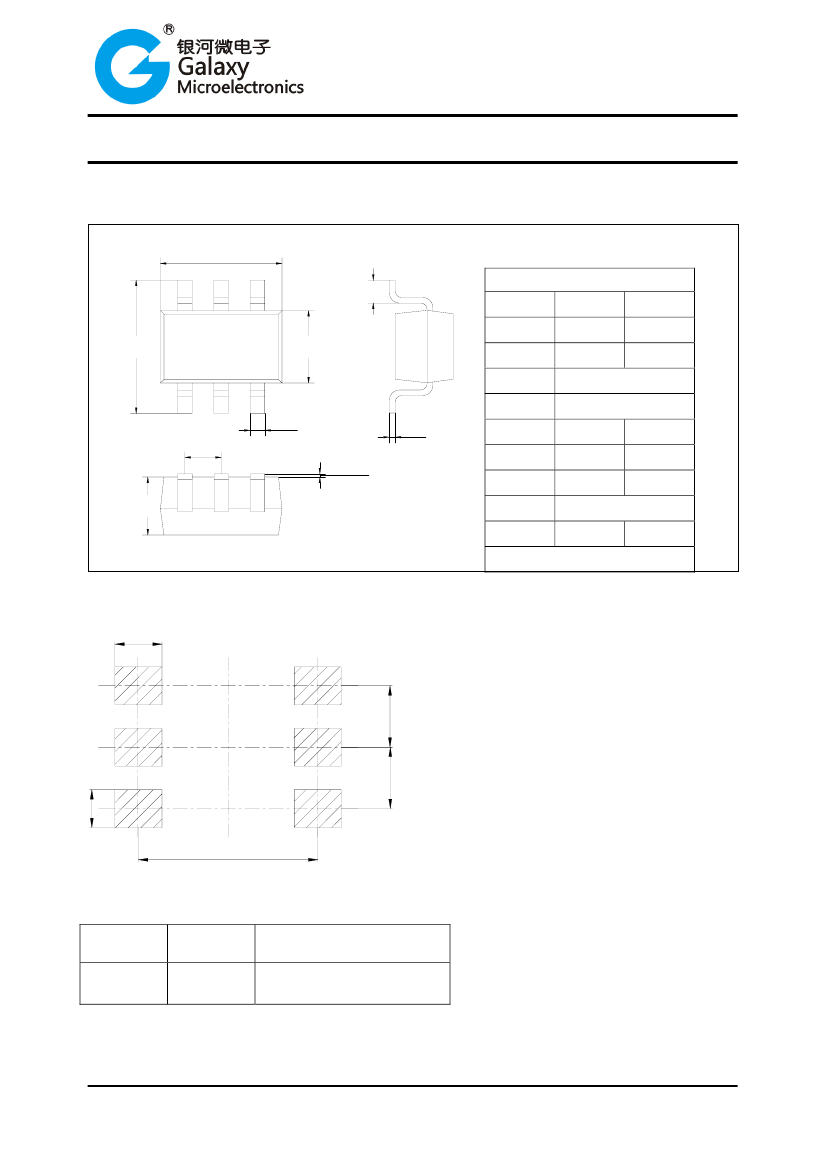

Package Outlines	SOT-363

Preview

Download Datasheet

View All

Production specification

Surface Mount Fast Switching Diodes

FEATURES

Fast switching speed.

For general purpose switching application.

Ultra-small surface mount package.

High conductance.

Two “BAV99”circuits in one package.

BAV99DW

Pb

Lead-free

APPLICATIONS

For general purpose switching application.

SOT-363

ORDERING INFORMATION

Type No.

BAV99DW

Marking

KJG

Package Code

SOT-363

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

V

RM

V

RRM

V

RWM

V

R

V

R(RMS)

I

FM

Characteristic

Non-repetitive peak reverse voltage

Peak repetitive reverse voltage

Working peak reverse voltage

DC reverse voltage

RMS Reverse voltage

Forward continuous current

Non-repetitive peak forward surge current

@t=1.0μs

@t=1.0ms

@t=1.0s

Power Dissipation

Thermal Resistance, Junction to Ambient

Junction and Storage Temperature

Value

100

Unit

V

75

V

53

215

V

mA

I

FSM

2.0

1.0

0.5

200

625

-65 to +150

A

P

D

R

θJA

T

j,

T

stg

G016

Rev.A

mW

℃/W

℃

www.gmesemi.com

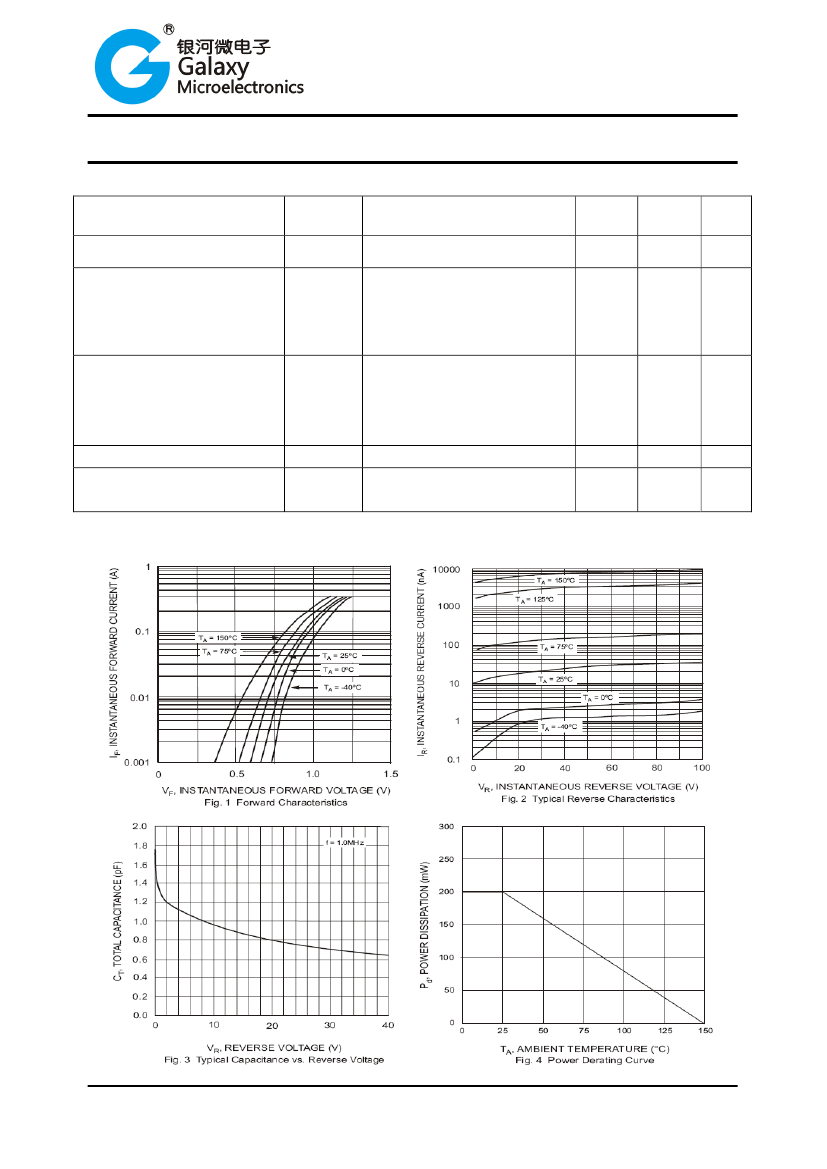

1
