ZFSC-3-13B-S+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-3-13B-S+

ZFSC-3-13B-S+: DescriptionCombiner,; CategoryWireless rf/communication Radio frequency and microwave; File Size347KB，3 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZFSC-3-13B-S+ Overview

Combiner,

ZFSC-3-13B-S+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):30
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.6 dB
Maximum operating frequency	200 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.1

Preview

Download Datasheet

View All

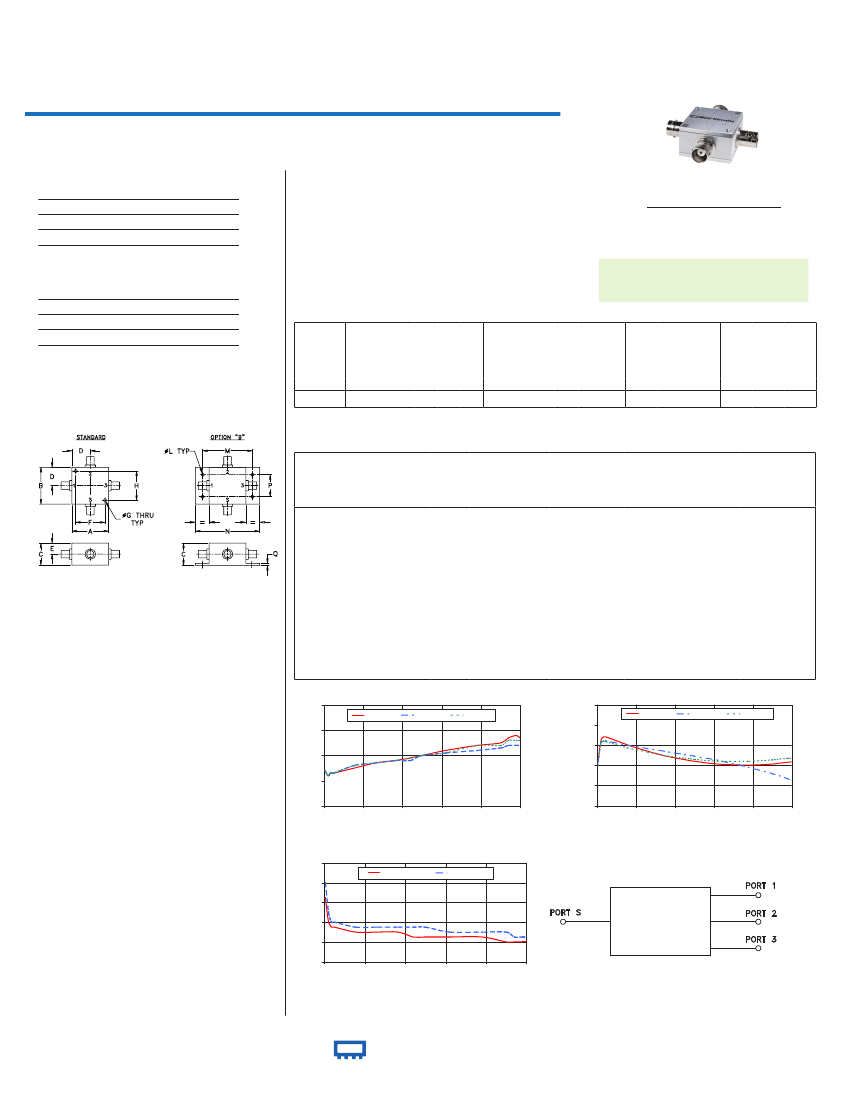

Coaxial

Power Splitter/Combiner

3 Way-0°

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

ZFSC-3-13+

ZFSC-3-13

BNC version shown

50Ω

-55°C to 100°C

1W max.

0.375W max.

1 to 200 MHz

Features

• low insertion, 0.35 dB typ.

• very high isolation, 48 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 1 deg. typ.

• excellent VSWR, 1.1:1 typ.

• rugged shielded case

CASE STYLE: J17

Connectors Model

BNC

ZFSC-3-13(+)

SMA

ZFSC-3-13-S+

N-TYPE

ZFSC-3-13-N(+)

BRACKET (OPTION "B")

Maximum Ratings

Permanent damage may occur if any of these limits are exceeded.

Coaxial Connections

SUM PORT

PORT 1

PORT 2

PORT 3

Applications

• VHF

• instrumentation

• radio communication system

FREQ.

RANGE

(MHz)

-f

1-200

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Electrical Specifications

INSERTION LOSS (dB)

ABOVE 4.8 dB

PHASE

UNBALANCE

(Degrees)

Max.

1.0

Max.

3.0

Max.

5.0

ISOLATION

(dB)

AMPLITUDE

UNBALANCE

(dB)

Max.

0.1

Max.

0.2

Max.

0.2

Typ. Min. Typ. Min. Typ. Min. Typ. Max. Typ. Max. Typ. Max.

0.25

0.5

0.35

0.6

0.35

0.6

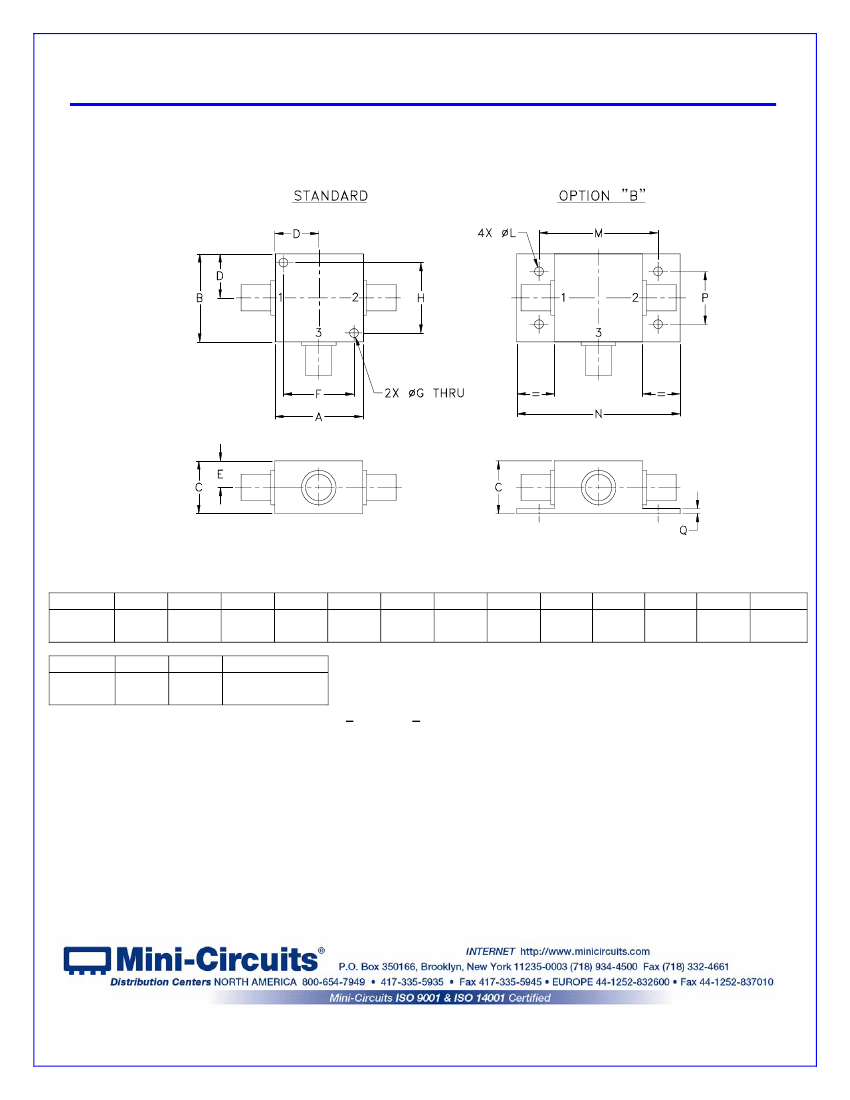

Outline Drawing

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Freq.

(MHz)

S-1

1.00

4.20

7.00

10.00

31.00

52.00

73.00

88.00

100.00

124.00

5.04

5.02

5.03

5.05

5.07

5.08

5.09

5.10

5.12

5.14

5.15

5.17

5.18

5.17

Total Loss

(dB)

S-2

5.04

5.02

5.03

5.06

5.07

5.08

5.10

5.11

5.12

5.13

5.14

ZFSC-3-13

TOTAL LOSS

S-1(dB)

S-2(dB)

Amp.

Unbal.

(dB)

S-3

5.04

5.02

5.03

5.06

5.07

5.08

5.09

5.10

5.11

5.14

5.16

0.01

0.00

0.01

0.00

0.01

0.00

0.01

0.02

0.03

Isolation

(dB)

1-2

38.69

42.98

43.60

43.56

42.06

40.78

39.74

39.19

38.80

38.25

38.04

38.24

38.42

38.59

38.67

Phase VSWR VSWR VSWR VSWR

Unbal.

(deg.)

2-3

37.91

42.44

42.77

42.63

41.46

40.62

39.81

39.45

39.18

38.81

38.79

39.05

39.25

39.38

39.44

0.02

0.03

0.01

0.05

0.07

0.17

0.21

0.25

0.30

0.36

0.42

0.44

0.48

0.51

1.13

1.08

1.07

1.06

1.05

1.04

ZFSC-3-13

ISOLATION

1-2 (dB)

1-3 (dB)

2-3 (dB)

1-3

38.54

42.61

42.94

42.80

41.96

41.32

40.65

40.18

39.80

39.02

37.59

36.35

35.88

35.35

35.10

1.16

1.10

1.08

1.07

1.06

1.05

1.17

1.10

1.08

1.07

1.06

1.05

1.04

1.17

1.10

1.08

1.07

1.06

Outline Dimensions (

inch

)

1.25

.75

.63

31.75 31.75 19.05 16.00

.38 1.000

9.65 25.40

.125 1.000

3.18 25.40

.07 grams

1.78

75.0

TOTAL LOSS (dB)

156.00

180.00

188.00

196.00

200.00

1. Total Loss = Insertion Loss + 4.8dB splitter loss.

.125 1.688

2.18

.75

3.18 42.88 55.37 19.05

5.3

5.2

5.1

5.0

4.9

S-3(dB)

ISOLATION (dB)

For option B with N-Type connectors, dimension "C" increases

to 0.94 inches.

120

160

200

120

160

200

FREQUENCY (MHz)

1.20

1.16

VSWR

1.12

1.08

1.04

1.00

ZFSC-3-13

VSWR

#S-VSWR

#1-VSWR

electrical schematic

120

160

200

FREQUENCY (MHz)

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

REV. C

M151107

ZFSC-3-13

HY/TD/CP/AM

151020
