ZLW-1HBR: DescriptionDouble Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M21; CategoryWireless rf/communication Radio frequency and microwave; File Size147KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZLW-1HBR Overview

Double Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M21

ZLW-1HBR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	23 dBm
JESD-609 code	e0
Maximum operating frequency	500 MHz
Minimum operating frequency	0.5 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.93

Preview

Download Datasheet

View All

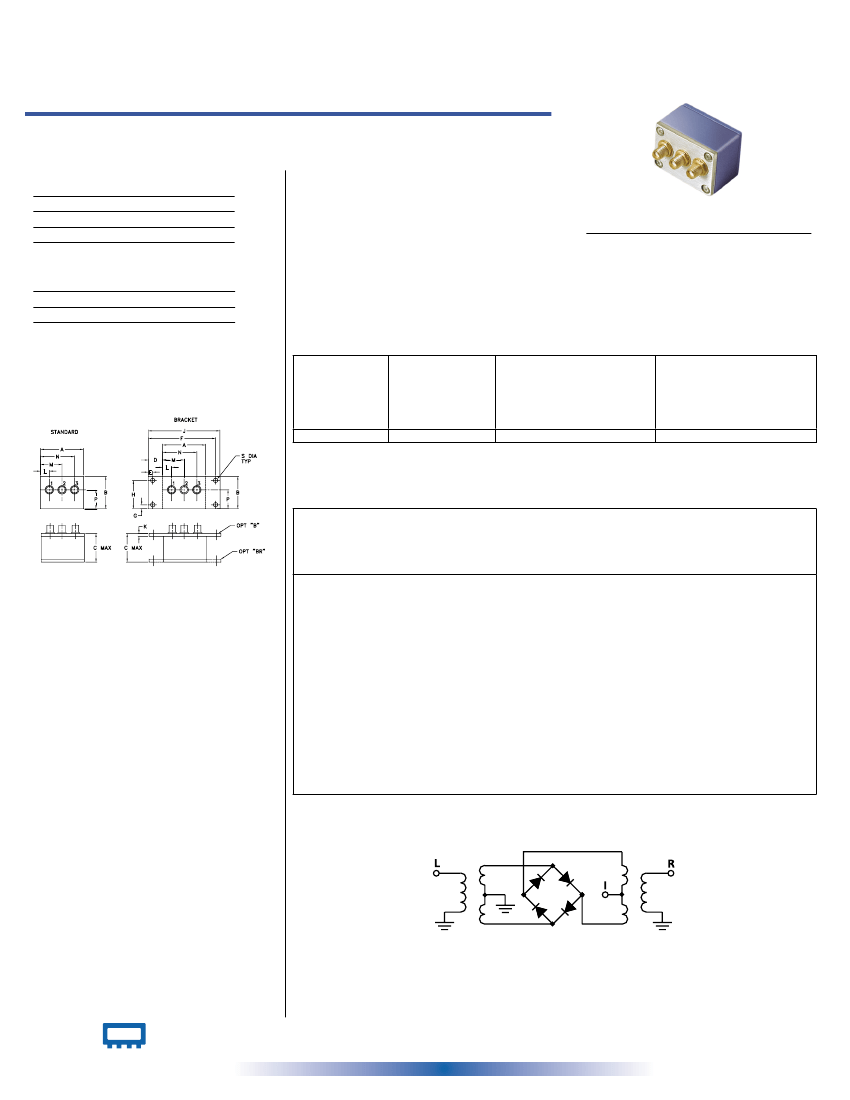

Coaxial

Frequency Mixer

Level 17 (LO Power +17 dBm) 0.5 to 500 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

200mW

40mA

ZLW-1H

Features

• low conversion loss, 6.13 dB typ.

• high L-R isolation, 45 dB typ., L-I, 40 dB typ.

• rugged shielded case

CASE STYLE: M21

Connectors Model

BNC

ZLW-1H

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$56.95 ea.

$5.00

$2.50

Qty.

(1-9)

(1+)

Applications

Coaxial Connections

LO

RF

IF

1

3

2

• VHF/UHF

• defense & federal communications

• instrumentations

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

0.5-500

DC-500

IF

—

X

6.13

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.08

L

Typ.

55

LO-RF ISOLATION

(dB)

M

Min.

45

Typ.

45

Min.

30

Typ.

35

U

Min.

25

Typ.

45

L

LO-IF ISOLATION

(dB)

M

Min.

35

Typ.

40

Min.

30

Typ.

30

U

Min.

20

Total

Range

Max. Max.

7.5

8.5

1 dB COMP.: +10 dBm typ.

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

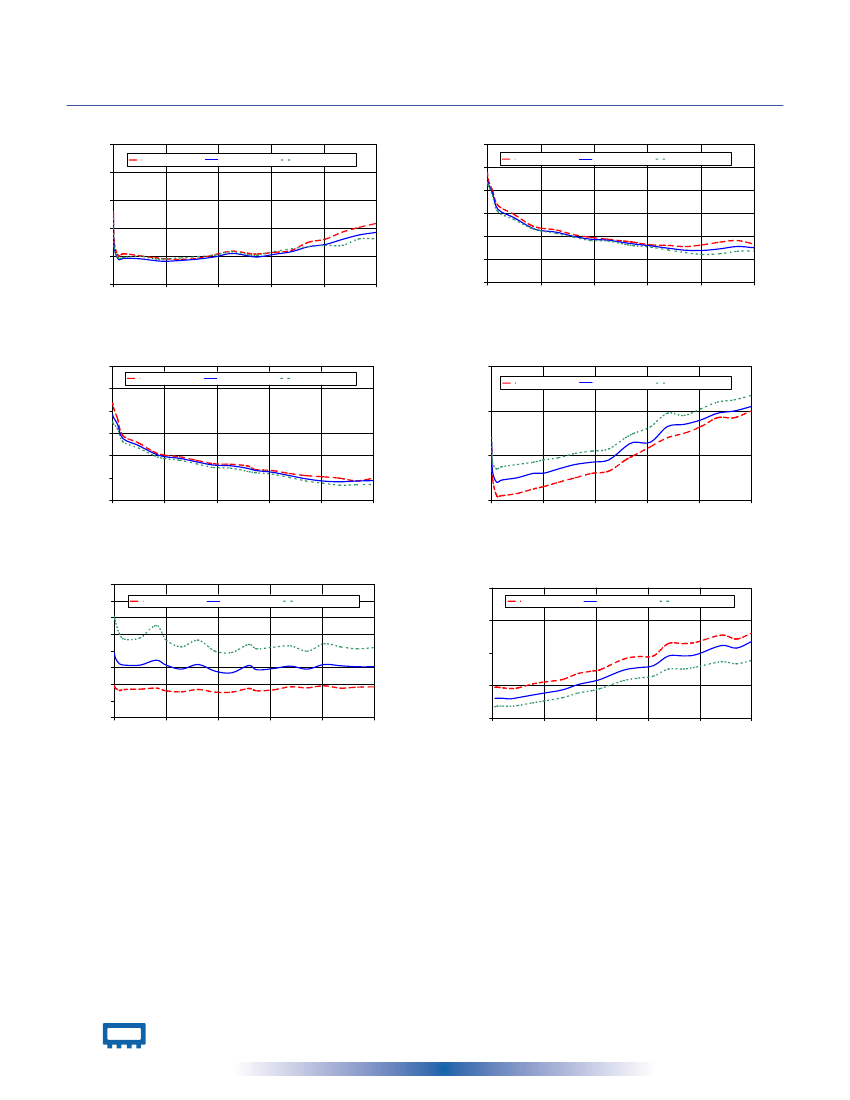

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

30.50

32.00

40.00

50.00

80.00

51.07

70.00

99.40

131.63

163.86

196.08

228.31

244.42

276.65

308.87

341.10

373.33

405.55

437.78

470.00

LO

+17dBm

7.38

6.29

5.89

5.93

5.91

5.84

5.82

5.85

5.90

5.98

6.10

6.01

5.97

6.07

6.16

6.34

6.42

6.60

6.76

6.85

Isolation

L-R

(dB)

LO

+17dBm

64.73

62.80

58.80

51.76

48.13

43.91

42.51

41.76

39.94

38.70

38.27

37.16

36.62

35.81

34.78

33.92

33.83

34.53

35.55

34.97

Isolation

L-I

(dB)

LO

+17dBm

58.33

57.04

53.94

47.62

44.45

40.75

39.43

38.65

37.09

35.65

35.36

34.23

33.23

32.42

30.96

29.51

28.51

28.16

28.51

28.71

VSWR RF

Port

(:1)

LO

+17dBm

1.26

1.13

1.08

1.09

1.10

1.12

1.14

1.16

1.17

1.18

1.24

1.26

1.33

1.34

1.36

1.39

1.40

1.42

VSWR LO

Port

(:1)

LO

+17dBm

2.93

2.80

2.61

2.57

2.72

2.57

2.45

2.59

2.39

2.34

2.56

2.43

2.47

2.54

2.45

2.59

2.55

2.52

RF

0.50

2.00

10.00

20.00

50.00

Outline Dimensions (

inch

)

mm

A

1.50

38.10

J

2.50

63.50

B

1.13

28.70

K

.10

2.54

C

1.00

25.40

L

.31

7.87

D

.50

12.70

M

.75

19.05

E

.155

3.94

N

1.19

30.23

F

2.345

59.56

P

.66

16.76

G

.138

3.51

H

.987

25.07

81.07

100.00

129.40

161.63

193.86

226.08

258.31

274.42

306.65

338.87

371.10

403.33

435.55

467.78

500.00

S

wt

.150 grams

3.81

40.0

Electrical Schematic

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. OR

M93710

ZLW-1H

DJ/TD/CP

060627

Page 1 of 2

ZLW-1HBR Related Products

	ZLW-1HBR	ZLW-186MHB	ZLW-1HB
Description	Double Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M21	Double Balanced Mixer, 2MHz Min, 2500MHz Max, 9.5dB Conversion Loss-Max, CASE M21	Double Balanced Mixer, 0.5MHz Min, 500MHz Max, 8.5dB Conversion Loss-Max, CASE M21
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Other features	SMA	SMA	SMA
structure	COAXIAL	COAXIAL	COAXIAL
Maximum frequency conversion loss	8.5 dB	9.5 dB	8.5 dB
Maximum input power (CW)	23 dBm	23 dBm	23 dBm
JESD-609 code	e0	e0	e0
Maximum operating frequency	500 MHz	2500 MHz	500 MHz
Minimum operating frequency	0.5 MHz	2 MHz	0.5 MHz
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2.93	2.96	2.93
