ZFM-3HB: DescriptionDouble Balanced Mixer, 0.05MHz Min, 300MHz Max, 8.5dB Conversion Loss-Max, CASE K18; CategoryWireless rf/communication Radio frequency and microwave; File Size198KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ZFM-3HB Overview

Double Balanced Mixer, 0.05MHz Min, 300MHz Max, 8.5dB Conversion Loss-Max, CASE K18

ZFM-3HB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	BNC, HIGH ISOLATION
structure	COAXIAL
Maximum frequency conversion loss	8.5 dB
Maximum input power (CW)	23 dBm
JESD-609 code	e0
Maximum operating frequency	300 MHz
Minimum operating frequency	0.05 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.87

Preview

Download Datasheet

View All

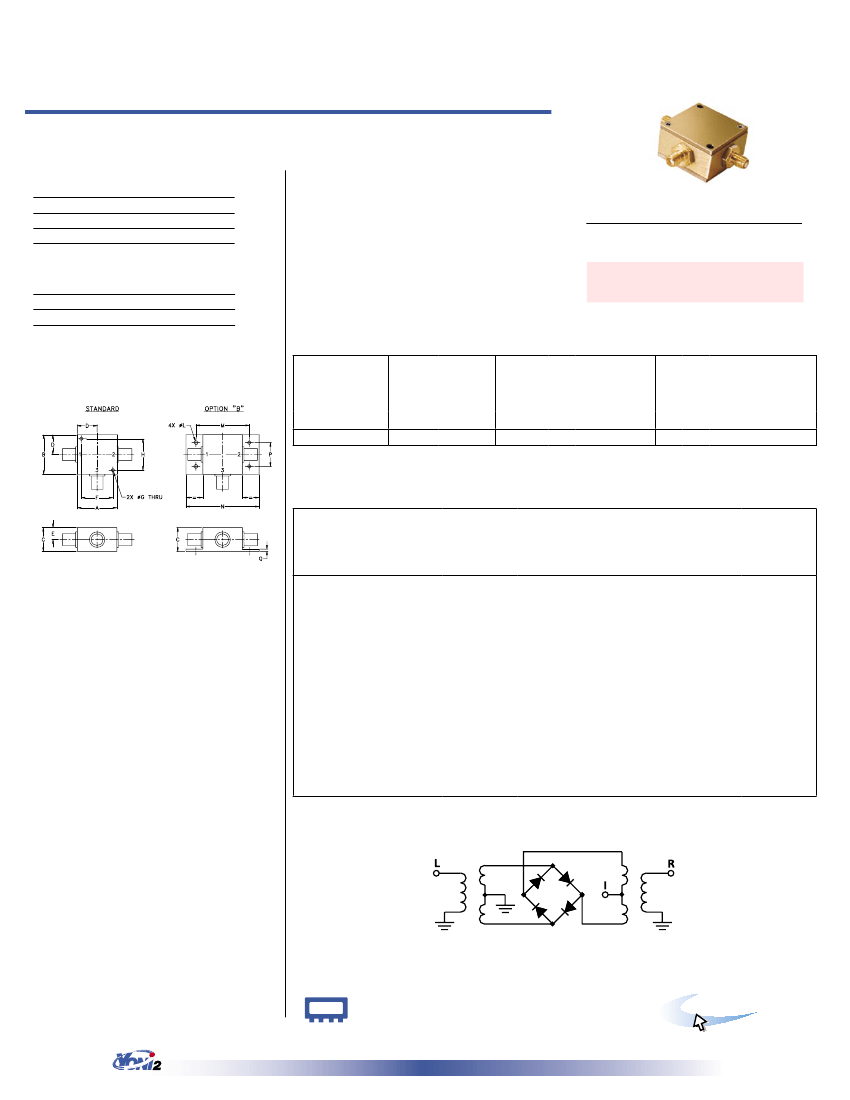

Coaxial

Frequency Mixer

Level 17 (LO Power +17 dBm) 0.05 to 300 MHz

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

200mW

40mA

ZFM-3H+

ZFM-3H

Features

• low conversion loss,5.18 dB typ.

• high L-R isolation, 40 dB typ, L-I, 35 dB typ.

• rugged shielded case

SMA version shown

CASE STYLE: K18

Connectors Model

Price

BNC

ZFM-3H+

$64.95 ea.

SMA

ZFM-3H-S(+)

$69.95 ea.

BRACKET (OPTION “B”)

$2.50

Qty.

(1-9)

(1+)

Applications

• VHF

• FM radio

• defense & federal communications

• instrumentation

Coaxial Connections

LO

RF

IF

1

2

3

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

0.05-300

DC-300

1 dB COMP.: +14 dBm typ.

IF

—

X

5.18

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.11

Total

Range

Max. Max.

7.0

8.5

L

LO-RF ISOLATION

(dB)

M

Typ. Min.

40

30

U

Typ. Min.

30

25

L

LO-IF ISOLATION

(dB)

M

Typ. Min.

35

25

U

Typ. Min.

25

20

Typ. Min.

55

45

Typ. Min.

50

40

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

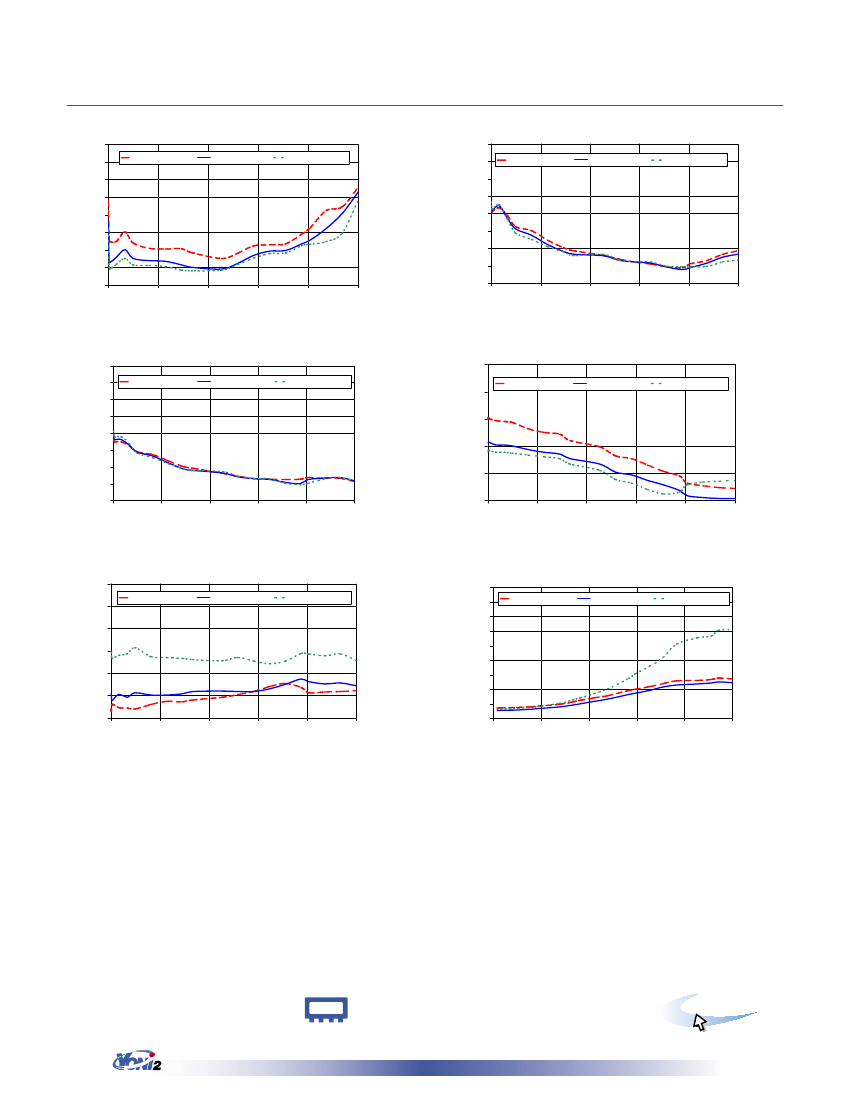

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

30.05

31.00

32.00

40.00

50.00

59.94

79.23

98.52

57.81

70.00

106.03

125.32

144.61

163.90

183.19

202.48

212.13

231.42

250.71

270.00

LO

+17dBm

5.81

4.70

4.63

4.79

5.00

4.75

4.69

4.67

4.57

4.50

4.45

4.61

4.84

4.96

4.98

5.17

5.27

5.60

6.03

6.64

Isolation

L-R

(dB)

LO

+7dBm

65.01

61.51

62.05

64.41

57.00

51.03

47.42

42.12

38.18

36.56

35.70

33.06

32.15

31.48

29.23

27.78

28.94

31.41

34.81

36.67

Isolation

L-I

(dB)

LO

+17dBm

59.81

56.17

56.05

56.12

52.66

48.60

46.33

42.25

38.54

37.81

36.26

33.98

32.92

32.48

30.80

29.94

32.37

33.19

33.60

31.62

VSWR

RF Port

(:1)

LO

+17dBm

1.63

1.64

1.61

1.60

1.56

1.53

1.51

1.46

1.40

1.31

1.28

1.22

1.17

1.11

1.05

1.03

1.02

VSWR

LO Port

(:1)

LO

+17dBm

1.53

1.52

1.39

1.53

1.46

1.56

1.51

1.54

1.59

1.60

1.59

1.65

1.75

1.87

1.81

1.76

1.78

1.72

RF

0.05

1.00

2.00

10.00

20.00

Outline Dimensions (

inch

)

mm

A

1.25

31.75

J

--

B

1.25

31.75

K

--

C

.75

19.05

L

.125

3.18

D

.63

16.00

M

1.688

42.88

E

.38

9.65

N

2.18

55.37

F

1.00

25.40

P

.75

19.05

G

.125

3.18

H

1.000

25.40

29.94

49.23

68.52

87.81

100.00

136.03

155.32

174.61

193.90

213.19

232.48

242.13

261.42

280.71

300.00

Q

wt

.07 grams

1.78

70.0

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

®

minicircuits.com

REV. B

M108294

ZFM-3H

DJ/TD/CP/AM

070410

Page 1 of 2

EW

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com
