PJ-006A-SMT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PJ-006A-SMT

PJ-006A-SMT: Description2.0 x 6.3 mm, 2.5 A, Vertical, Surface Mount (SMT), Dc Power Jack Connector; CategoryThe connector The connector; File Size464KB，4 Pages; ManufacturerCUI Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

PJ-006A-SMT Overview

2.0 x 6.3 mm, 2.5 A, Vertical, Surface Mount (SMT), Dc Power Jack Connector

PJ-006A-SMT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CUI Devices
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	JACK
Connector type	CIRCULAR DC POWER CONENCTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	Silver (Ag)
Contact material	COPPER ALLOY
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Pin diameter	2 mm
Rated current (power)	4 A
Rated voltage	18 V
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

Additional Resources:

Product Page

3D Model

PCB Footprint

date

page

09/04/2020

1 of 4

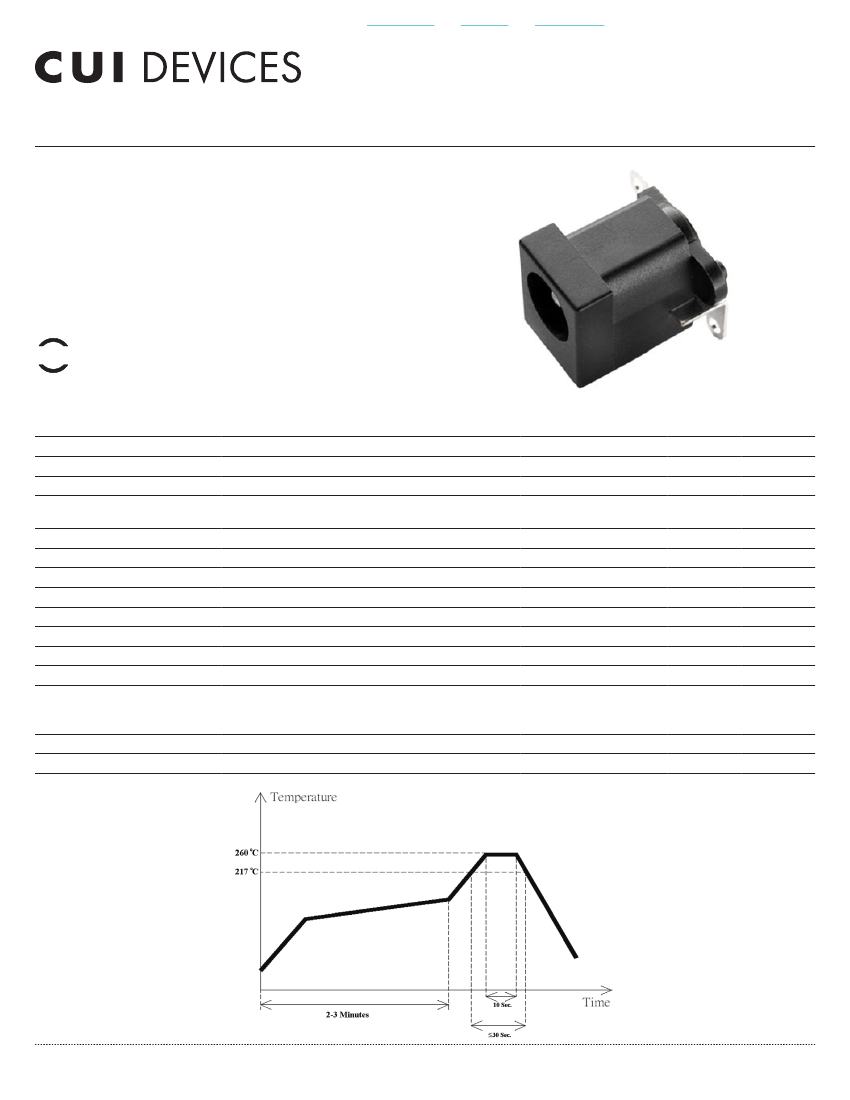

MODEL:

PJ-006A-SMT-TR

│

DESCRIPTION:

DC POWER JACK

FEATURES

• 2.0mm center pin

• 4 A rating

• vertical orientation

• surface mount (SMT)

RoHS

SPECIFICATIONS

parameter

rated input voltage

rated input current

contact resistance

insulation resistance

voltage withstand

insertion/withdrawal force

terminal strength

operating temperature

life

flammability rating

RoHS

Notes:

conditions/description

min

typ

max

units

Vdc

mΩ

MΩ

Vac

°C

cycles

between terminal and mating plug

between terminal in a closed circuit

at 500 Vdc

at 50/60Hz for 1 minute

0.3

any direction for 10 seconds

-25

5,000

UL94V-0

yes

100

500

1. When measured at a current of less than 1 A.

SOLDERABILITY

parameter

reflow soldering

conditions/description

see reflow profile

min

typ

260

max

265

units

°C

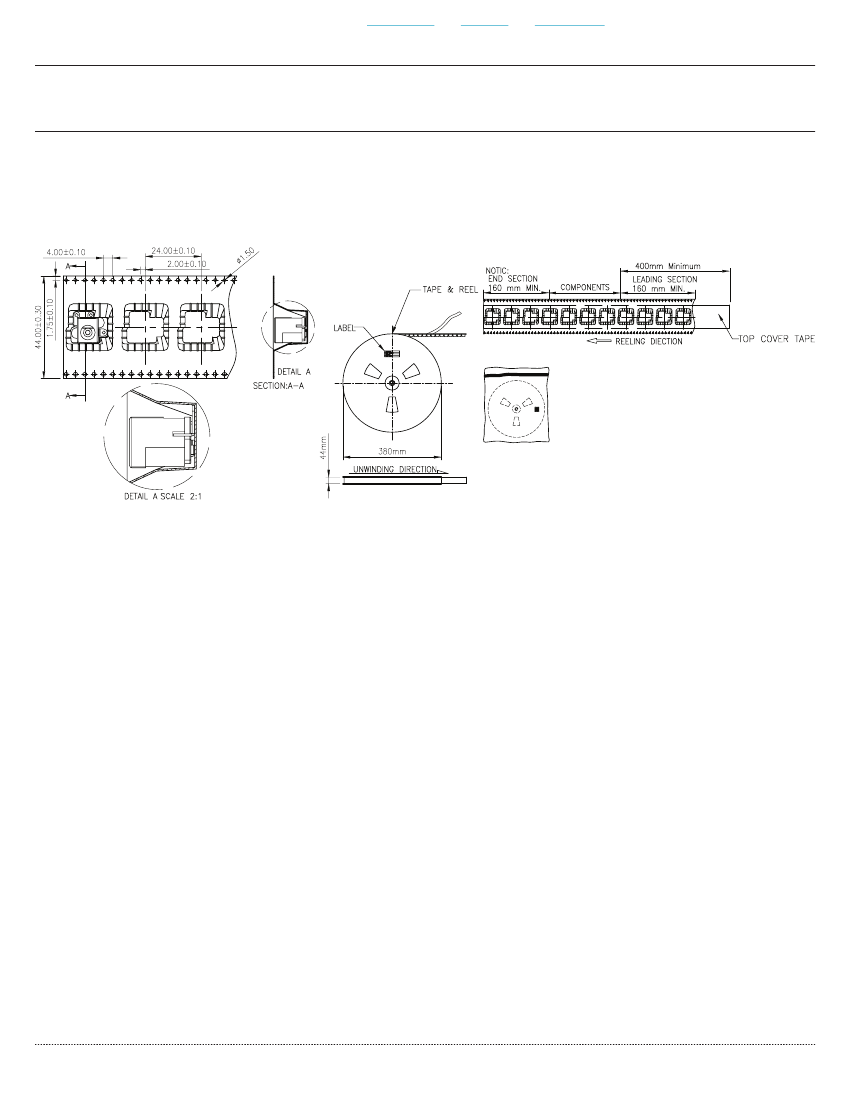

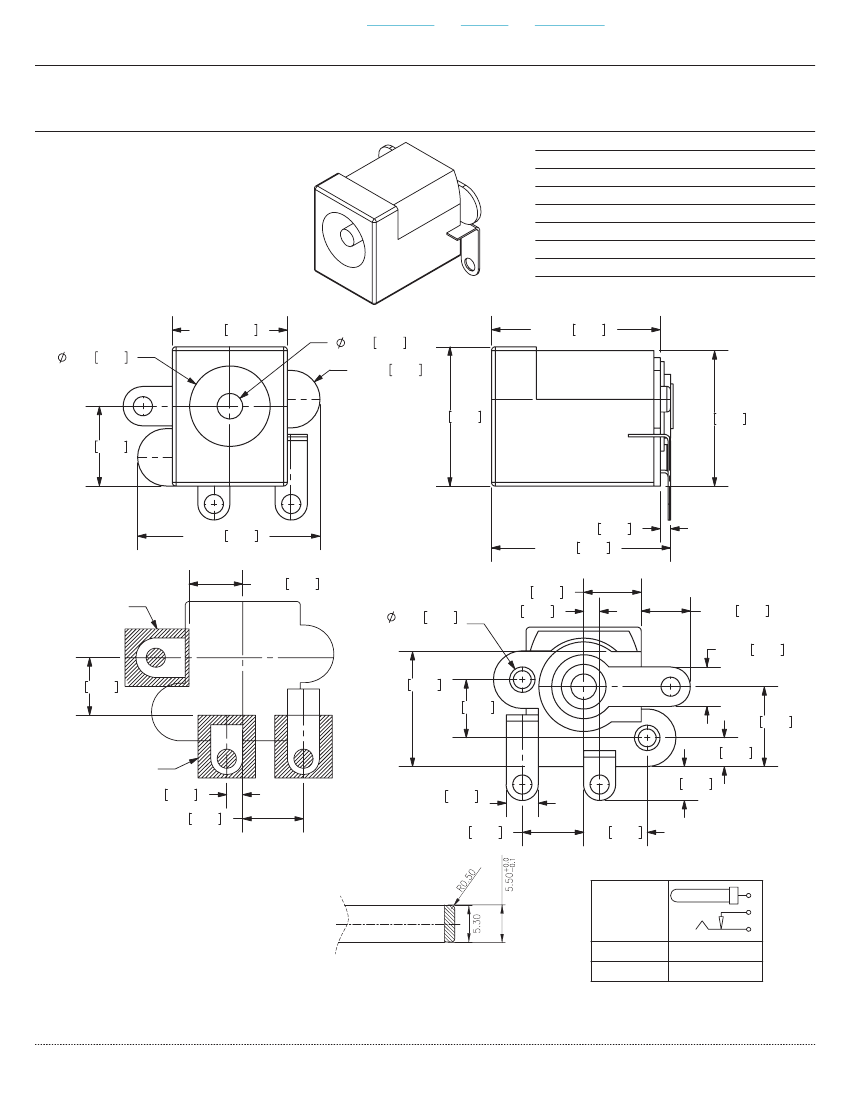

cuidevices.com

PJ-006A-SMT Related Products

	PJ-006A-SMT	PJ-006A-SMT-TR
Description	2.0 x 6.3 mm, 2.5 A, Vertical, Surface Mount (SMT), Dc Power Jack Connector	Circular DC Power Connector, 18V, 4A, 2mm Dia,
Is it Rohs certified?	conform to	conform to
Maker	CUI Devices	CUI Devices
Reach Compliance Code	compliant	compli
Body/casing type	JACK	JACK
Connector type	CIRCULAR DC POWER CONENCTOR	CIRCULAR DC POWER CONENCTOR
Contact to complete cooperation	SILVER	SILVER
Contact completed and terminated	Silver (Ag)	Silver (Ag)
Contact material	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Pin diameter	2 mm	2 mm
Rated current (power)	4 A	4 A
Rated voltage	18 V	18 V
Termination type	SURFACE MOUNT	SURFACE MOUNT
