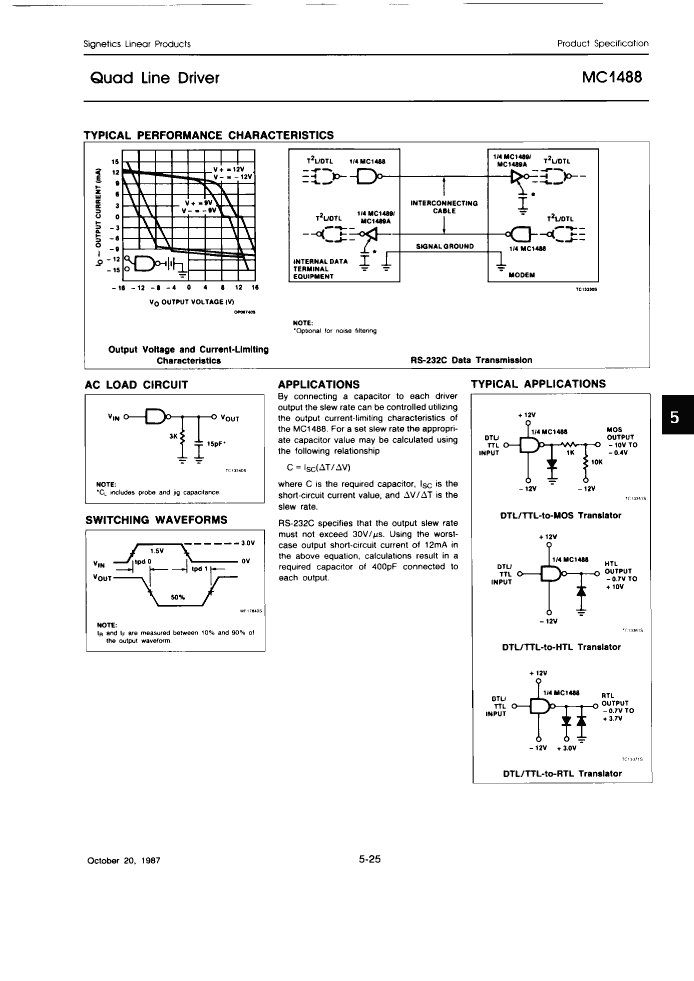

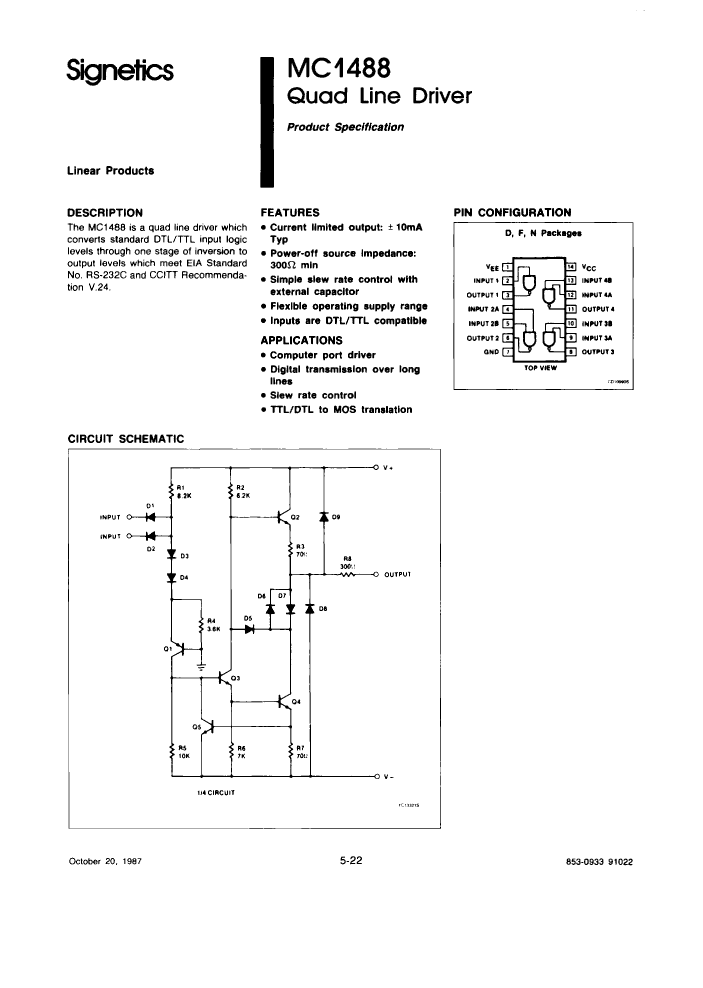

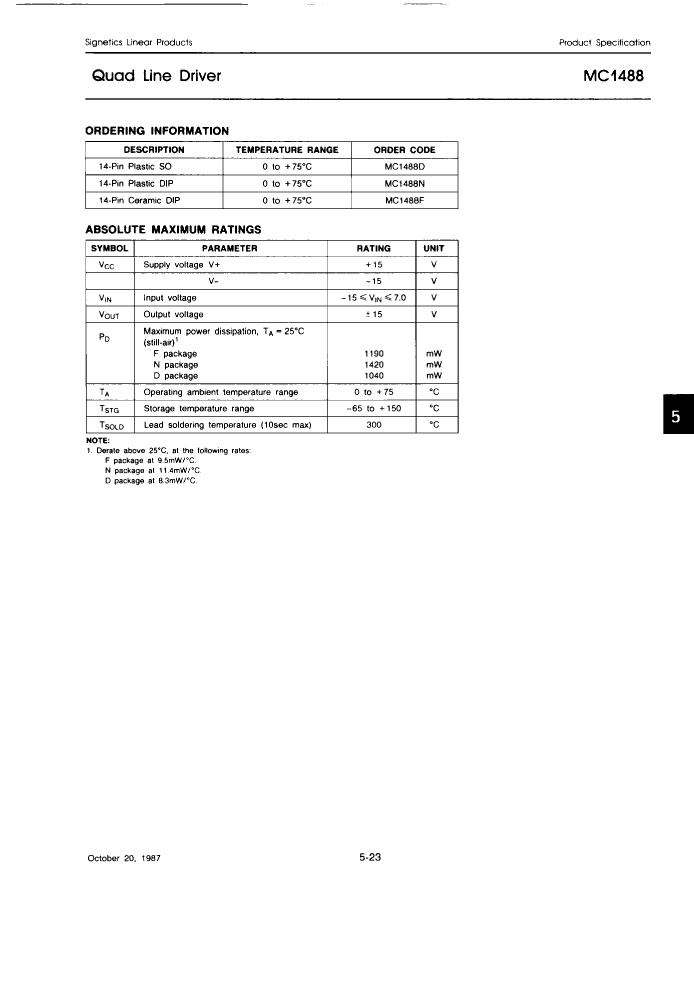

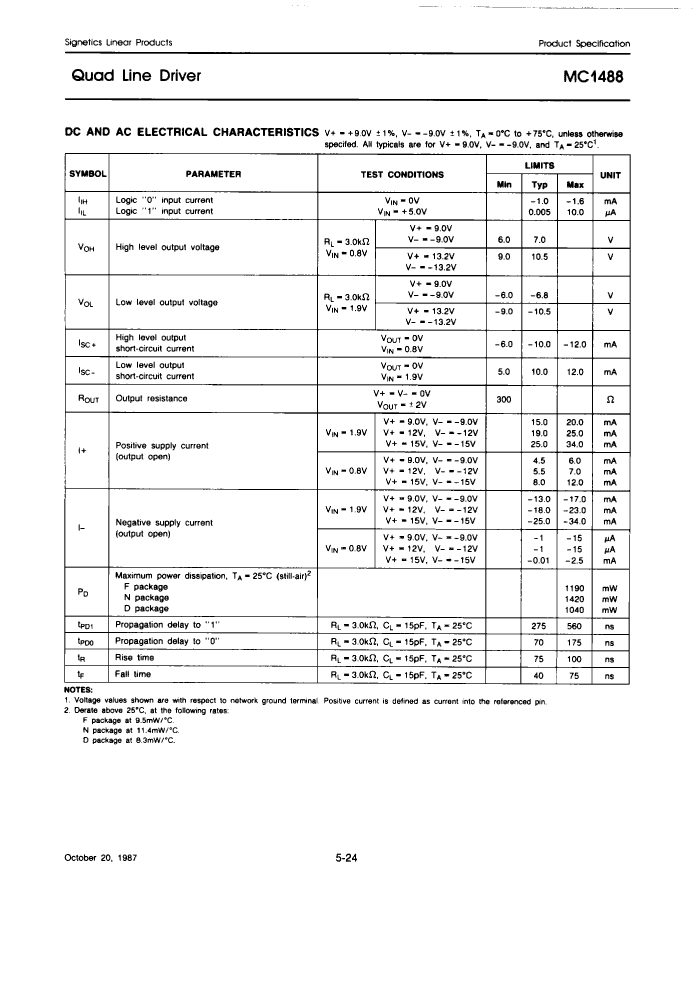

IC QUAD LINE DRIVER, CDIP14, CERDIP-14, Line Driver or Receiver
| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Differential output | NO |
| Number of drives | 1 |
| Input properties | GATED |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-232-C; V.24 |
| JESD-30 code | R-GDIP-T14 |
| length | 19.535 mm |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Output characteristics | TOTEM-POLE |
| Output polarity | INVERTED |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 34 mA |
| Maximum supply voltage | 15 V |
| Minimum supply voltage | 8.91 V |
| Nominal supply voltage | 9 V |
| Supply voltage 1-max | -15 V |
| Mains voltage 1-minute | -8.91 V |
| Supply voltage1-Nom | -9 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| maximum transmission delay | 175 ns |
| width | 7.62 mm |
| MC1488F | MC1488D | MC1488N | MC1488D-T | |
|---|---|---|---|---|
| Description | IC QUAD LINE DRIVER, CDIP14, CERDIP-14, Line Driver or Receiver | IC,LINE DRIVER,4 DRIVER,BIPOLAR,SOP,14PIN,PLASTIC | IC QUAD LINE DRIVER, PDIP14, Line Driver or Receiver | IC QUAD LINE DRIVER, PDSO14, PLASTIC, SO-14, Line Driver or Receiver |
| Maker | NXP | NXP | NXP | NXP |
| package instruction | DIP, | SOP, SOP14,.25 | DIP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Differential output | NO | NO | NO | NO |
| Number of drives | 1 | 4 | 1 | 1 |
| JESD-30 code | R-GDIP-T14 | R-PDSO-G14 | R-PDIP-T14 | R-PDSO-G14 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 75 °C | 70 °C | 75 °C | 75 °C |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage | 9 V | 9 V | 9 V | 9 V |
| surface mount | NO | YES | NO | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| maximum transmission delay | 175 ns | 350 ns | 175 ns | 175 ns |
| ECCN code | EAR99 | - | EAR99 | EAR99 |
| Input properties | GATED | - | GATED | GATED |
| Interface integrated circuit type | LINE DRIVER | - | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-232-C; V.24 | - | EIA-232-C; V.24 | EIA-232-C; V.24 |
| length | 19.535 mm | - | 19.025 mm | 8.65 mm |
| Number of functions | 4 | - | 4 | 4 |
| Output characteristics | TOTEM-POLE | - | TOTEM-POLE | TOTEM-POLE |
| Output polarity | INVERTED | - | INVERTED | INVERTED |
| Maximum seat height | 5.08 mm | - | 4.2 mm | 1.75 mm |
| Maximum slew rate | 34 mA | - | 34 mA | 34 mA |
| Maximum supply voltage | 15 V | - | 15 V | 15 V |
| Minimum supply voltage | 8.91 V | - | 8.91 V | 8.91 V |
| Supply voltage 1-max | -15 V | - | -15 V | -15 V |
| Mains voltage 1-minute | -8.91 V | - | -8.91 V | -8.91 V |
| Supply voltage1-Nom | -9 V | - | -9 V | -9 V |
| width | 7.62 mm | - | 7.62 mm | 3.9 mm |
