MGDBI-10-Q-F/MY datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MGDBI-10-Q-F/MY

MGDBI-10-Q-F/MY: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size546KB，14 Pages; ManufacturerGAIA Converter Inc; Websitehttps://gaia-converter.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MGDBI-10-Q-F/MY Overview

Analog Circuit

MGDBI-10-Q-F/MY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	GAIA Converter Inc
Reach Compliance Code	compliant
Maximum input voltage	140 V
Minimum input voltage	36 V
Number of terminals	7
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output current	0.33 A
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,7LEAD,1.4
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	OTHER

Preview

Download Datasheet

View All

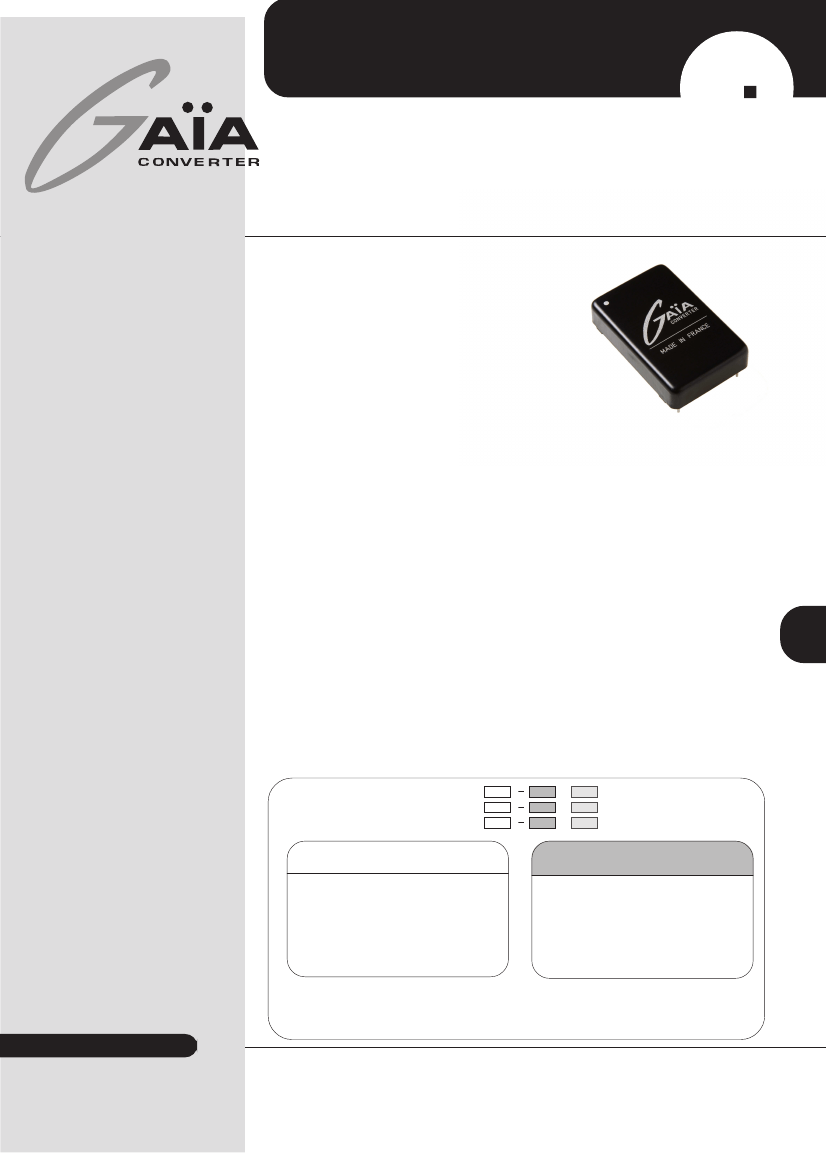

Industrial DC/DC CONVERTER

MGDI-10 Wide Input : 10W POWER

Industrial

Grade

3:1 & 4:1 Wide Input

Single, Bi & Triple Outputs

Metallic Case - 1.500 VDC Isolation

Plastic Case - 3.000 VDC Isolation

• Low profile : 0,33’’ (8.5mm)

• Wide input range and high transient compliance

• Nominal power of 10 W without derating

• Wide temperature range : -40°C/+95°C

• High efficiency (typ. 85%)

• Soft start

• Permanent short circuit protection

• No optocoupler for high reliability

• RoHS process

1-General

The MGDI-10 wide input series is a full family of

DC/DC power modules designed for use in

distributed power architecture where variable

input voltage and transient are prevalent making

them ideal particularly for transportation,

railways or high-end industrial applications. These

modules use a high frequency fixed swiching

technic at 480 KHz providing excellent reliability,

low noise characteristics, high power density and

low profile package. Standard models are

available with wide input voltage range of 4,7-

16, 9-36, 16-40 and 36-140 volts, with high

transient levels. The series include single, bi

and triple output voltage choices of 3,3, 5, 12,

15, +/-5, +/-12 or +/-15 volts.

No external heatsink is required for the MGDI-

10 series to supply 10W output power over the

case temperature range of -40°C up to 95°C.

The MGDI-10 series is designed in conformity

with safety standards EN60950 and UL1950.

All the modules are designed with LC network

filters to minimize reflected input current ripple

and output voltage ripple according to EN55022

and FCC Part 15J standard.

The modules include a soft-start, an input

undervoltage lock-out, a permanent short cir-

cuit protection and an output overvoltage pro-

tection to ensure efficient module protections.

The soft-start allows current limitation and

eliminates inrush current during start-up. The

short circuit protection completely protects the

modules against short-circuits of any duration

by a shut-down and restores to normal when

the overload is removed.

The design has been carried out with surface

mount components and is manufactured in a

fully automated process to guarantee high

quality. Each module is tested with a GAIA

Converter automated test equipment.

2-Product Selection

Single output model

Bi output model

Triple output model

: MGDSI - 10 -

: MGDBI - 10 -

: MGDTI - 10 -

input

output

option

Input Voltage Range

Permanent

4,7-16 VDC

9-36 VDC

: 16-40 VDC*

: 36-140 VDC**

Transient

n/a

40 VDC/100 ms

45 VDC/100 ms

175 VDC/100 ms

factory

Output

B : 3.3 VDC

C : 5 VDC or +/-5VDC

E : 12 VDC or +/-12VDC

F : 15 VDC or +/-15VDC

CE : 5 VDC and +/-12 VDC

CF : 5 VDC and +/-15 VDC

* for 45 Vdc consult

** for 154 Vdc consult

Options :

/Y : option for 3.000 VDC isolation

/M : option for On/Off function

REDEFINING THE SOURCE OF POWER

Gaïa Converter FC97-007.01/10 Revision N

For locations, phone, fax, E-Mail see back cover

MGDBI-10-Q-F/MY Related Products

	MGDBI-10-Q-F/MY	MGDSI-10-H-B	MGDSI-10-Q-B/MY	MGDSI-10-Q-E/MY	MGDSI-10-H-C	MGDSI-10-H-E	MGDBI-10-Q-C/MY	MGDSI-10-Q-C/MY	MGDSI-10-J-B
Description	Analog Circuit	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, ROHS COMPLIANT PACKAGE-6	Analog Circuit	Analog Circuit	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, ROHS COMPLIANT PACKAGE-6	DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid, ROHS COMPLIANT PACKAGE-6	Analog Circuit	Analog Circuit	Analog Circuit
