MSM5052-XX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MSM5052-XX

MSM5052-XX: DescriptionMicrocontroller, 4-Bit, MROM, 0.032768MHz, CMOS, 4.77 X 4.36 MM, DIE-61; CategoryThe embedded processor and controller Microcontrollers and processors; File Size185KB，7 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM5052-XX Overview

Microcontroller, 4-Bit, MROM, 0.032768MHz, CMOS, 4.77 X 4.36 MM, DIE-61

MSM5052-XX Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	DIE
package instruction	DIE,
Contacts	61
Reach Compliance Code	unknown
Has ADC	NO
Other features	AN ADDITIONAL SUPPLY OF -3V IS REQUIRED FOR THE LCD DRIVER
Address bus width
bit size	4
maximum clock frequency	0.032768 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-XUUC-N61
Number of I/O lines	13
Number of terminals	61
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
ROM programmability	MROM
speed	0.032768 MHz
Maximum supply voltage	-1.65 V
Minimum supply voltage	-1.25 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	NO LEAD
Terminal location	UPPER
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

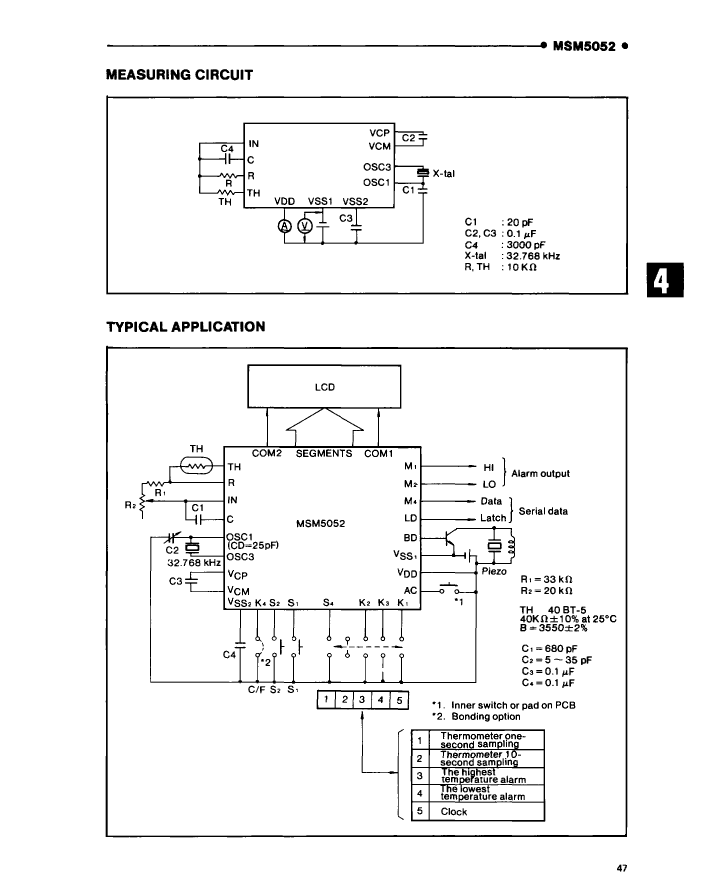

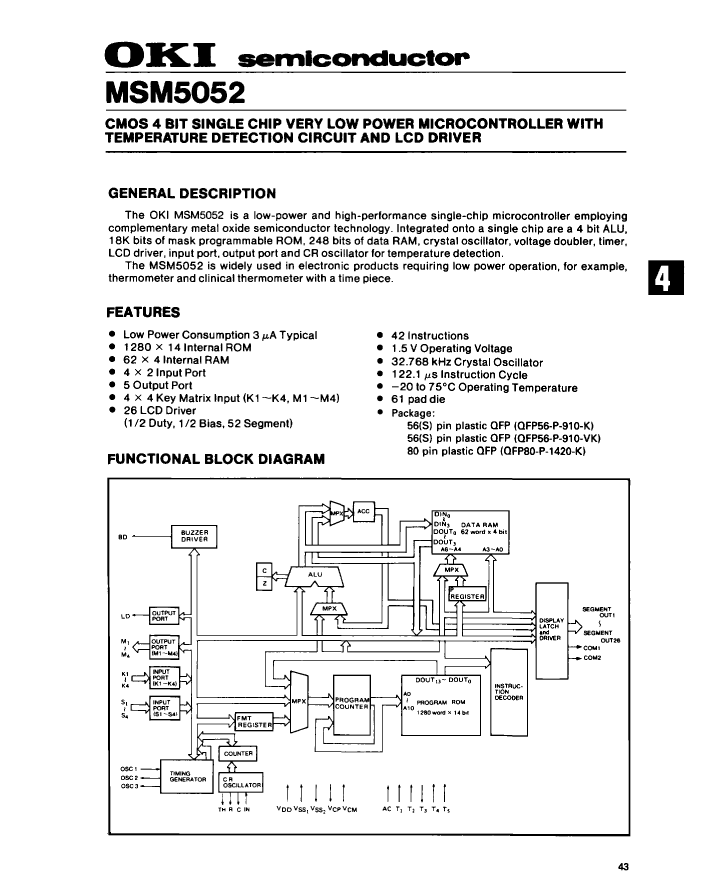

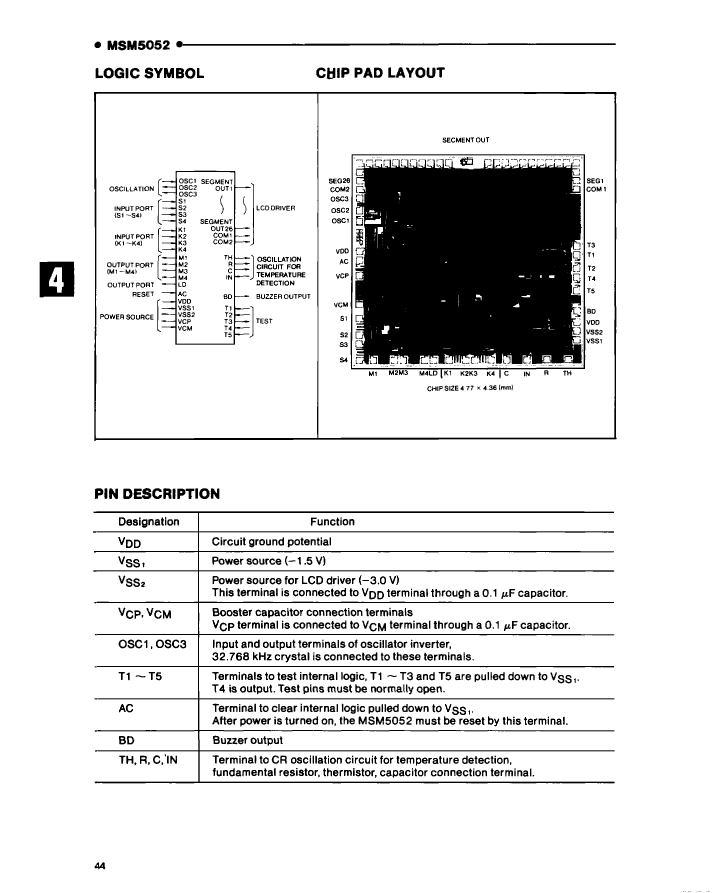

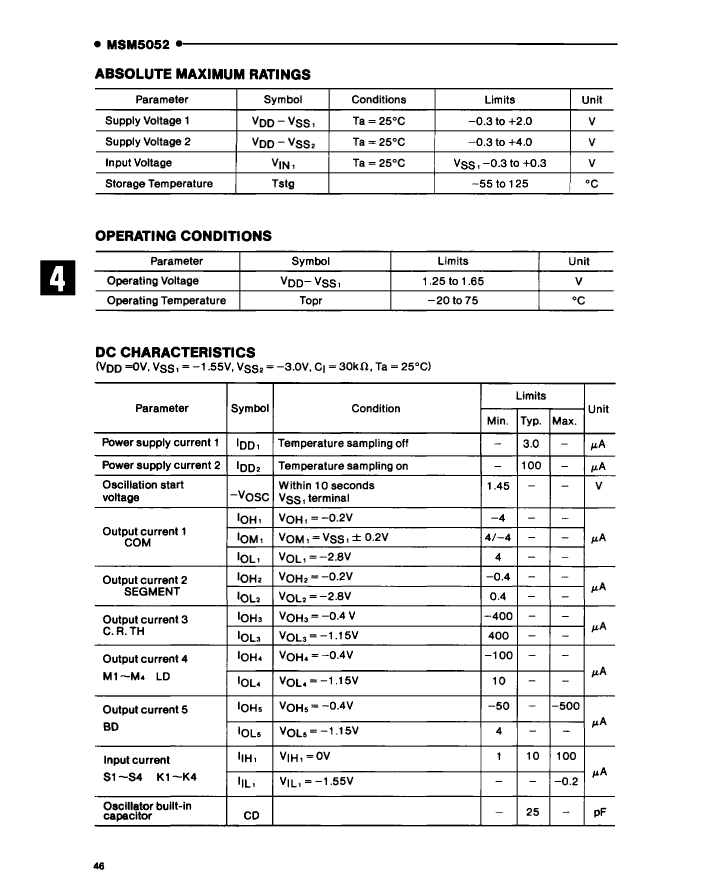

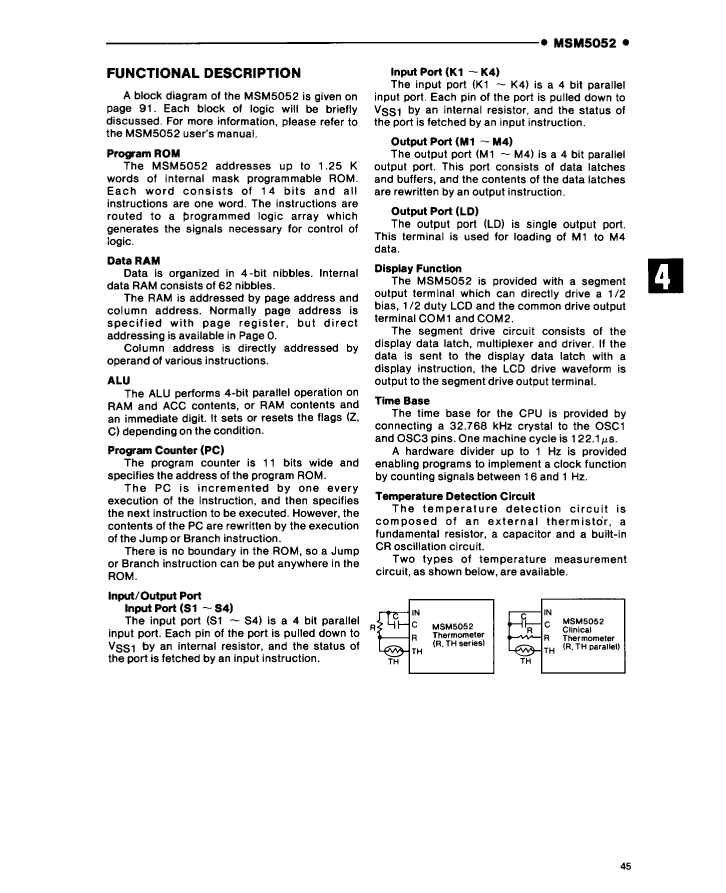

Preview

Download Datasheet

View All

MSM5052-XX Related Products

	MSM5052-XX	MSM5052-XXGS-K	MSM5052-XXGS-VK
Description	Microcontroller, 4-Bit, MROM, 0.032768MHz, CMOS, 4.77 X 4.36 MM, DIE-61	Microcontroller, 4-Bit, MROM, 0.032768MHz, CMOS, PQFP80, 14 X 20 INCH, PLASTIC, QFP-80	Microcontroller, 4-Bit, MROM, 0.032768MHz, CMOS, PQFP56, 9 X 10 MM, PLASTIC, QFP-56
Maker	OKI	OKI	OKI
Parts packaging code	DIE	QFP	QFP
package instruction	DIE,	QFP,	QFP,
Contacts	61	80	56
Reach Compliance Code	unknown	unknown	unknow
Has ADC	NO	NO	NO
Other features	AN ADDITIONAL SUPPLY OF -3V IS REQUIRED FOR THE LCD DRIVER	AN ADDITIONAL SUPPLY OF -3V IS REQUIRED FOR THE LCD DRIVER	AN ADDITIONAL SUPPLY OF -3V IS REQUIRED FOR THE LCD DRIVER
bit size	4	4	4
maximum clock frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-XUUC-N61	R-PQFP-G80	R-PQFP-G56
Number of I/O lines	13	13	13
Number of terminals	61	80	56
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIE	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM
speed	0.032768 MHz	0.032768 MHz	0.032768 MHz
Maximum supply voltage	-1.65 V	-1.65 V	-1.65 V
Minimum supply voltage	-1.25 V	-1.25 V	-1.25 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	NO LEAD	GULL WING	GULL WING
Terminal location	UPPER	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
length	-	20 mm	10.5 mm
Maximum seat height	-	2.5 mm	2 mm
Terminal pitch	-	0.8 mm	0.65 mm
width	-	14 mm	9.5 mm
