SC050S030A5P: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 30V V(RRM), Silicon, WAFER, DIE-2; CategoryDiscrete semiconductor diode; File Size131KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

SC050S030A5P Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 30V V(RRM), Silicon, WAFER, DIE-2

SC050S030A5P Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	WAFER
package instruction	O-XUUC-N
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.47 V
JESD-30 code	O-XUUC-N
JESD-609 code	e0
Number of components	1
Phase	1
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

Bulletin I0510J rev. D 03/07

SC050.....5. Series

SCHOTTKY DIE 50 x 50 mils

40 (157)

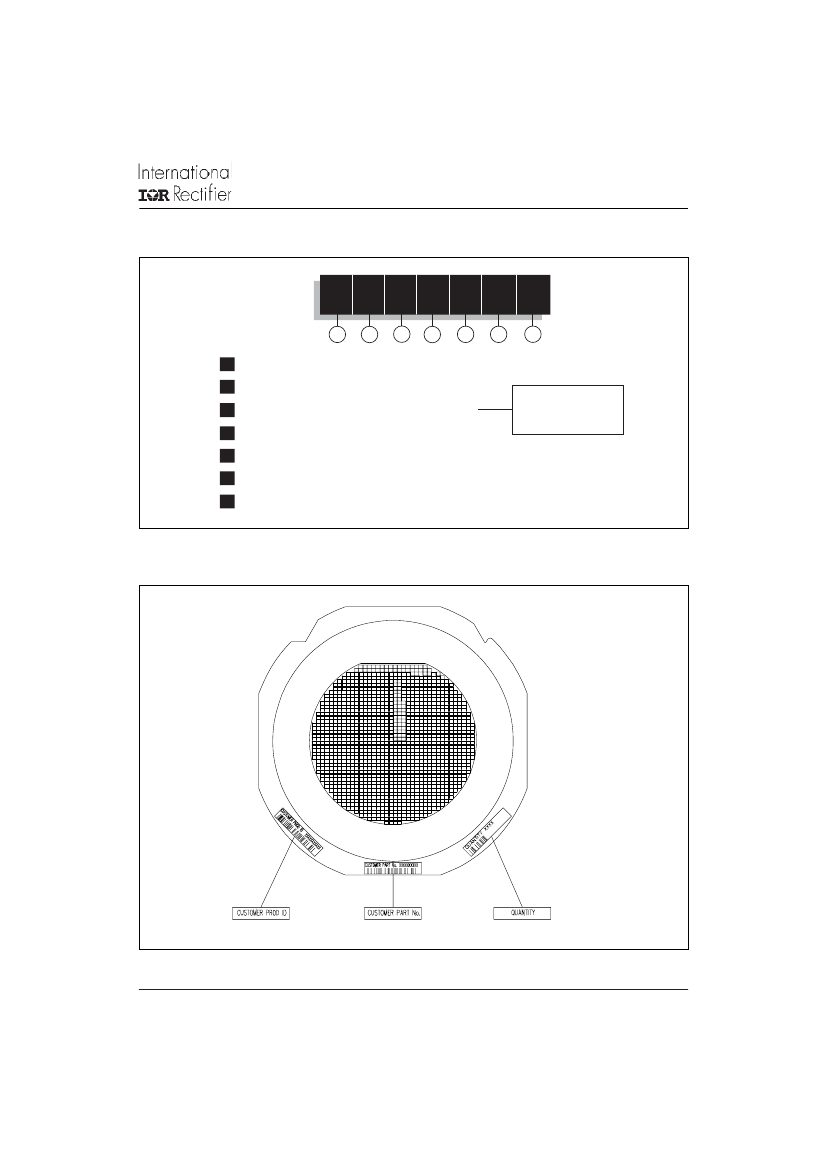

Wafer flat alligned with

side b of the die

0.35 ± 0.01

(14 ± 0.4)

NOTES:

1. ALL DIMENSIONS ARE SHOWN IN

MILLIMETERS (MILS)

2. CONTROLLING DIMENSION: (MILS)

3. LETTER DESIGNATION:

A = Anode (Top Metal)

C = Cathode (Back Metal)

D = Reject Ink Dot (only on non-conforming dies)

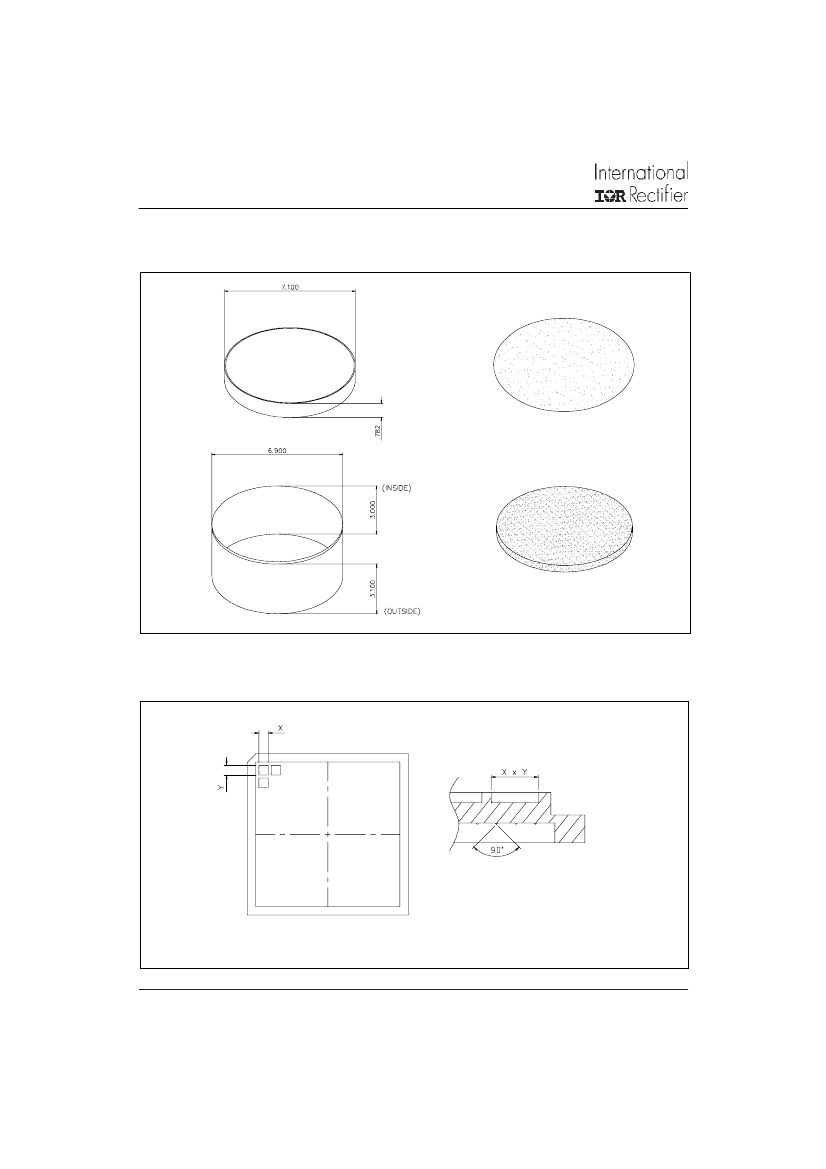

4. SAWING:

Recommended Blade

SEMITEC S1025 QS00 Blade

Sawing Street

0.05 ± 0.005

(2 ± 0.2)

Ø 125 (492)

NOT TO SCALE

5. DIMENSIONS AND TOLERANCES

Device

SC050

015x5x

SC050

020x5x

SC050

030x5x

SC050

045x5x

SC050

060x5x

SC050

045x5x

SC050

100x5x

SC050

150x5x

Max.

(°C)

125

150

175

(V)

100

150

diameter

n.a. contact factory

1.27 + 0, -0.01 1.27 + 0, -0.01 1.12 + 0, -0.01 1.12 + 0, -0.01

(50 + 0, -0.4) (50 + 0, -0.4)

(44 ± 0.4)

1.27 + 0, -0.01 1.27 + 0, -0.01 1.12 + 0, -0.01 1.12 + 0, -0.01

(50 + 0, -0.4) (50 + 0, -0.4)

(44 ± 0.4)

1.27 + 0, -0.01 1.27 + 0, -0.01 1.12 + 0, -0.01 1.12 + 0, -0.01

(50 + 0, -0.4) (50 + 0, -0.4)

(44 ± 0.4)

n.a. contact factory

1.27 + 0, -0.01 1.27 + 0, -0.01 1.12 + 0, -0.01 1.12 + 0, -0.01

(50 + 0, -0.4) (50 + 0, -0.4)

(44 ± 0.4)

n.a. contact factory

0.7 ± 0.1

30 ± 4

0.7 ± 0.1

30 ± 4

0.7 ± 0.1

30 ± 4

0.7 ± 0.1

30 ± 4

Document Number: 93861

www.vishay.com
