BL-HH033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-HH033

BL-HH033: DescriptionSingle Color LED, Bright Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size84KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HH033 Overview

Single Color LED, Bright Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

BL-HH033 Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.015 A
Lens type	WATER CLEAR
Nominal luminous intensity	0.8 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	700 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	120 deg

Preview

Download Datasheet

View All

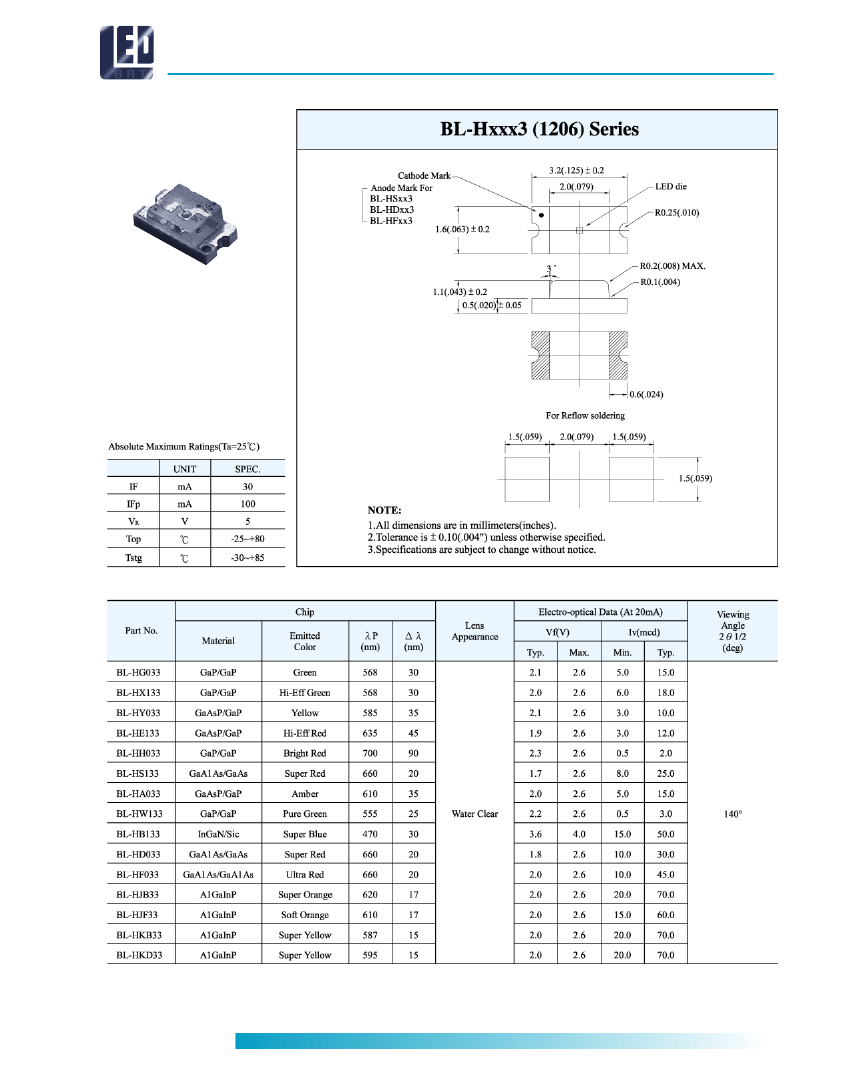

Surface Mount Chip LED Lamps

BL-H Series 1206

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

BL-HH033 Related Products

	BL-HH033	BL-HE133	BL-HKB33	BL-HY033	BL-HB133	BL-HD033	BL-HF033
Description	Single Color LED, Bright Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Red, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
Maker	BRIGHT	-	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	-	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
color	BRIGHT RED	HIGH EFFICIENCY RED	SUPER YELLOW	YELLOW	-	SUPER RED	SUPER RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
Maximum forward current	0.015 A	0.03 A	0.03 A	0.03 A	-	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	0.8 mcd	8.0 mcd	45.0 mcd	6.0 mcd	-	25.0 mcd	30.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	-	1	1
Number of terminals	2	2	2	2	-	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	-	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-	-25 °C	-25 °C
total height	1.1 mm	1.1 mm	1.1 mm	1.1 mm	-	1.1 mm	1.1 mm
method of packing	BULK	BULK	BULK	BULK	-	BULK	BULK
peak wavelength	700 nm	640 nm	590 nm	583 nm	-	660 nm	660 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	-	2 mm	2 mm
surface mount	YES	YES	YES	YES	-	YES	YES
Terminal pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	-	3.5 mm	3.5 mm
perspective	120 deg	120 deg	120 deg	120 deg	-	120 deg	120 deg
