FRDK14N3902 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> FRDK14N3902

Preview

FRDK14N3902: DescriptionRetroreflective Photoelectric Sensor, 8mm Min, 8mm Max, 100mA, Rectangular, Board Mount; CategoryThe sensor; File Size110KB，2 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric View All

FRDK14N3902 Overview

Retroreflective Photoelectric Sensor, 8mm Min, 8mm Max, 100mA, Rectangular, Board Mount

FRDK14N3902 Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	14.8 mm
body height	43 mm
Body length or diameter	32.4 mm
shell	PLASTIC
Maximum measuring range (mm)	8 mm
Minimum measuring range (mm)	8 mm
Installation features	BOARD MOUNT
Maximum working current	40 mA
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Output interface type	4-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	100 µs
Sensor/temperature sensor type	LINEAR POSITION SENSOR,PHOTOELECTRIC,RETROREFLECTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CABLE

Preview

Download Datasheet

View All

Photoelectric sensors

Retro-reflective sensors

dimension drawing

FRDK 14N3902

32,7

14,8

LED

2

4

4,3

3,75

4,3

* 17,2

35

43

* emitter axis

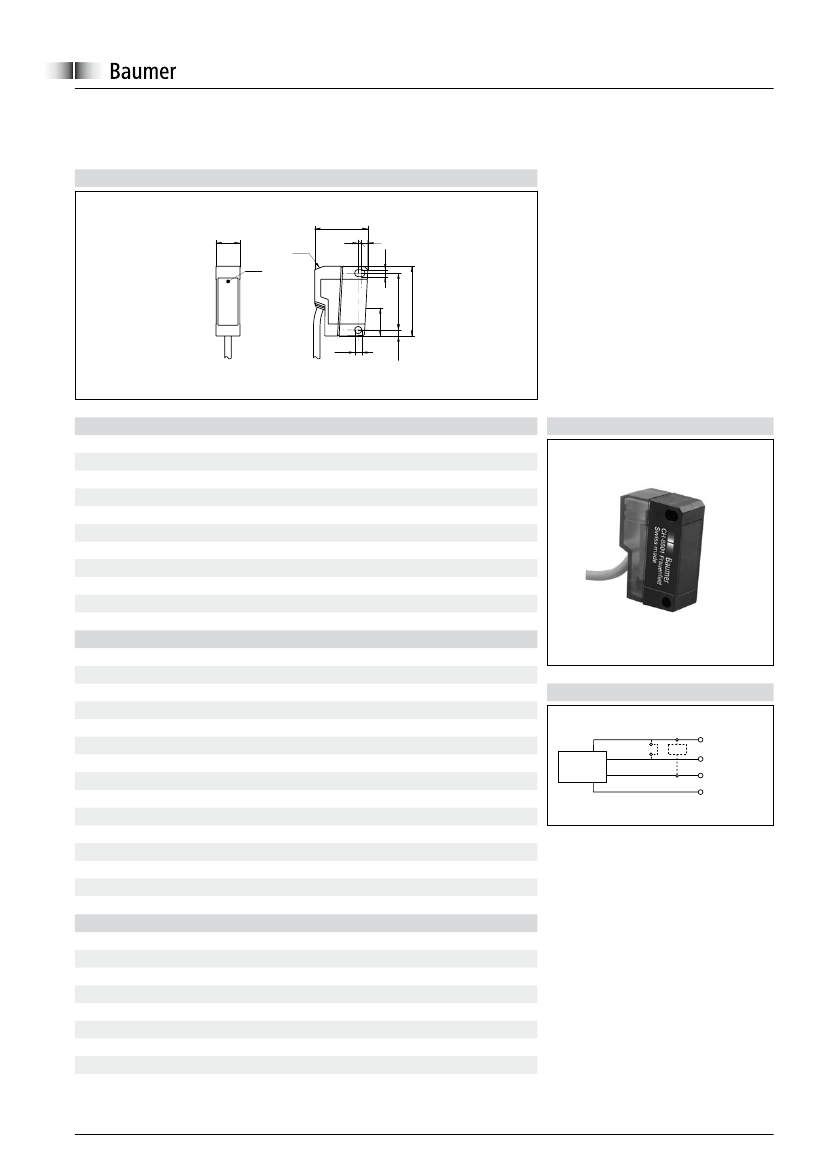

general data

type

version

light source

actual range Sb

nominal range Sn

polarization filter

light indicator

sensitivity adjustment

wave length

retro-reflective sensor

for transparent objects

pulsed red LED

7m

8m

no

LED yellow

Teach-in

660 nm


electrical data

response time / release time

teach-in signal time

adaption time

voltage supply range +Vs

current consumption max.

current consumption typ.

voltage drop Vd

output function

output circuit

output current

teach value stored after power-off

short circuit protection

reverse polarity protection

< 0,1 ms

> 500 µs

< 20 ms

10 ... 30 VDC

40 mA

35 mA

< 2,2 VDC

dark operate

NPN

< 100 mA

volatile

yes

BN (1)

+V

S

Z

connection diagram

NPN

WH (2)

BK (4)

BU (3)

ext. teach

dark operate

0V

mechanical data

width / diameter

height / length

depth

type

housing material

front (optics)

connection types

14,8 mm

43 mm

31 mm

rectangular

plastic (ASA, MABS)

PMMA

cable 4 pin, 2 m

www.baumer.com

22/1/2010
