3GDW8G-C-150N-60.000

Description
LVDS Output Clock Oscillator, 60MHz Nom, ROHS COMPLIANT, DIP-8/4
CategoryPassive components    oscillator
File Size109KB,1 Pages
ManufacturerEuroquartz
Websitehttp://www.euroquartz.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

3GDW8G-C-150N-60.000 Overview

LVDS Output Clock Oscillator, 60MHz Nom, ROHS COMPLIANT, DIP-8/4

3GDW8G-C-150N-60.000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerEuroquartz
Reach Compliance Codecompliant
Maximum control voltage3 V
Minimum control voltage0.3 V
maximum descent time0.7 ns
Frequency Adjustment - MechanicalNO
Frequency offset/pull rate150 ppm
frequency stability100%
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency60 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeLVDS
Output load50 OHM
physical size12.8mm x 12.8mm x 5.08mm
longest rise time0.7 ns
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountNO
maximum symmetry55/45 %
EURO
QUARTZ
8 pin Dual-in-Line
Frequency range 38MHz to 640MHz
LVDS Output
Supply Voltage 3.3 VDC
Phase jitter 0.4ps typical
Pull range from ±30ppm to ±150ppm
GDW8 LVDS VCXO
750.0kHz to 800.0MHz

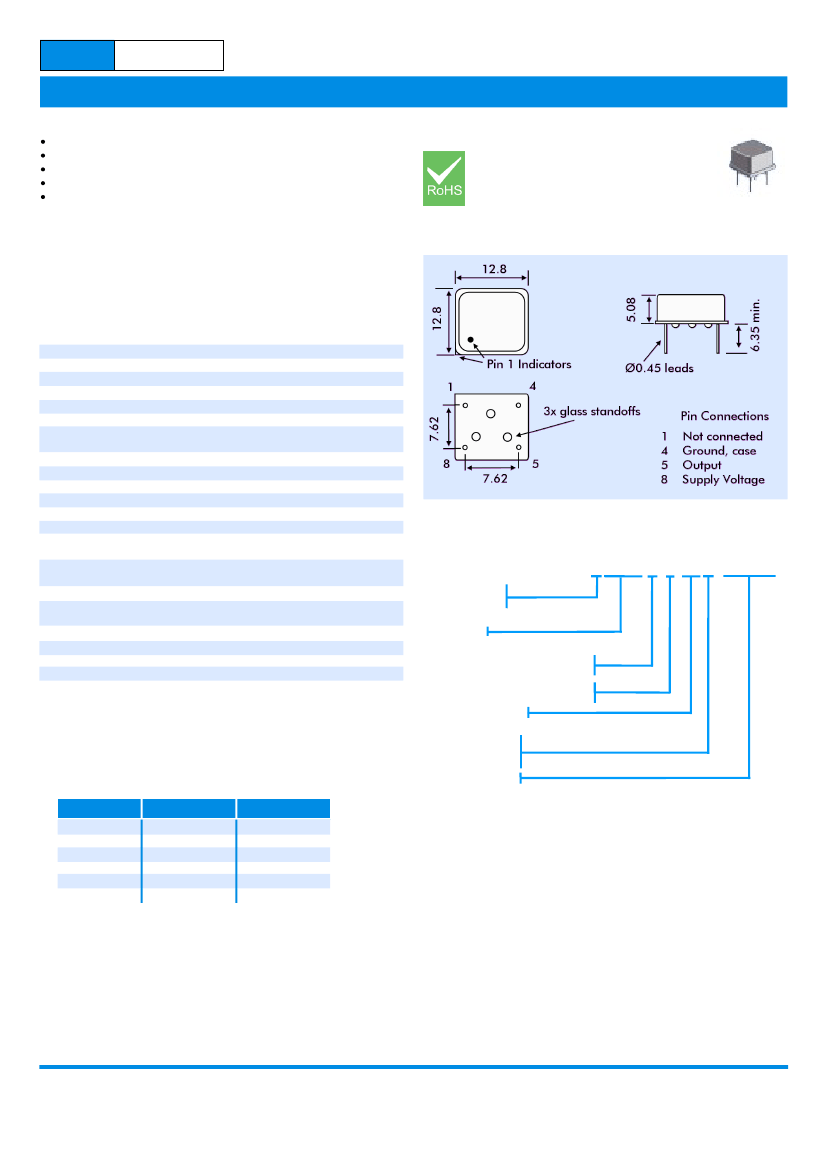

DESCRIPTION
GDW8VCXOs are packaged in an industry-standard, 8pin dual-in-line
package. Typical phase jitter for GDW series VCXOs is 2.35ps. Output
is LVDS. Applications include phase lock loop, SONET/ATM, set-top
boxes, MPEG , audio/video modulation, video game consoles and
HDTV.
SPECIFICATION
Frequency Range:
Supply Voltage:
Output Logic:
RMS Period Jitter:
Peak to Peak Jitter:
Phase Jitter:
Initial Frequency Accuracy:
Output Voltage HIGH (1):
Output Voltage LOW (0):
Pulling Range:
Control Voltage Range:
Temperature Stability:
Output Load:
Rise/Fall Times:
Duty Cycle:
Start-up Time:
Current Consumption:
Static Discharge Protection:
Storage Temperature:
Ageing:
Enable/Disable:
RoHS Status:
OUTLINE & DIMENSIONS
750kHz to 800.0MHz
3.3 VDC ±5%
LVDS
4.3ps typical
27.0ps typical
2.35ps typical
Tune to the nominal frequency
with Vc= 1.65 ±0.2VDC
1.4 Volts typical
1.1 Volts typical
From ±30ppm to ±150ppm
1.65 ±1.35 Volts
See table
50W into Vdd or Thevenin equiv.
0.5ns typ., 0.7ns max.
20% Vdd to 80% Vdd
50% ±5%
(Measured at Vdd-1.3V)
10ms maximum, 5ms typical
55mA typical, 60mA maximum
(At 202.50MHz)
2kV maximum
-55° to +150°C
±2ppm per year maximum
Not implemented - 4 pin package
Fully compliant or non compliant
PART NUMBERING
Example:
Supply Voltage
3 = +3.3V
Series Designator
GDW
RoHS Status
G = RoHs compliant
Blank = RoHS non-compliant
Stability over temperature range
(See table)
Pullability in ±ppm
Pullability determinator
N = minimum
M = maximum
T = Typical
Frequency in MHz
3GDWG-B-80N-60.000
FREQUENCY STABILITY
Stability Code Stability ±ppm Temp. Range
A
25
0°~+70°C
B
50
0°~+70°C
C
100
0°~+70°C
D
25
-40°~+85°C
E
50
-40°~+85°C
F
100
-40°~+85°C
If non-standard frequency stability is required
Use ‘I’ followed by stability, i.e. I20 for ±20ppm
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
