CFP1506-0112: DescriptionCard Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator,; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFP1506-0112 Overview

Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator,

CFP1506-0112 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF
body width	0.094 inch
subject depth	0.205 inch
body length	0.461 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

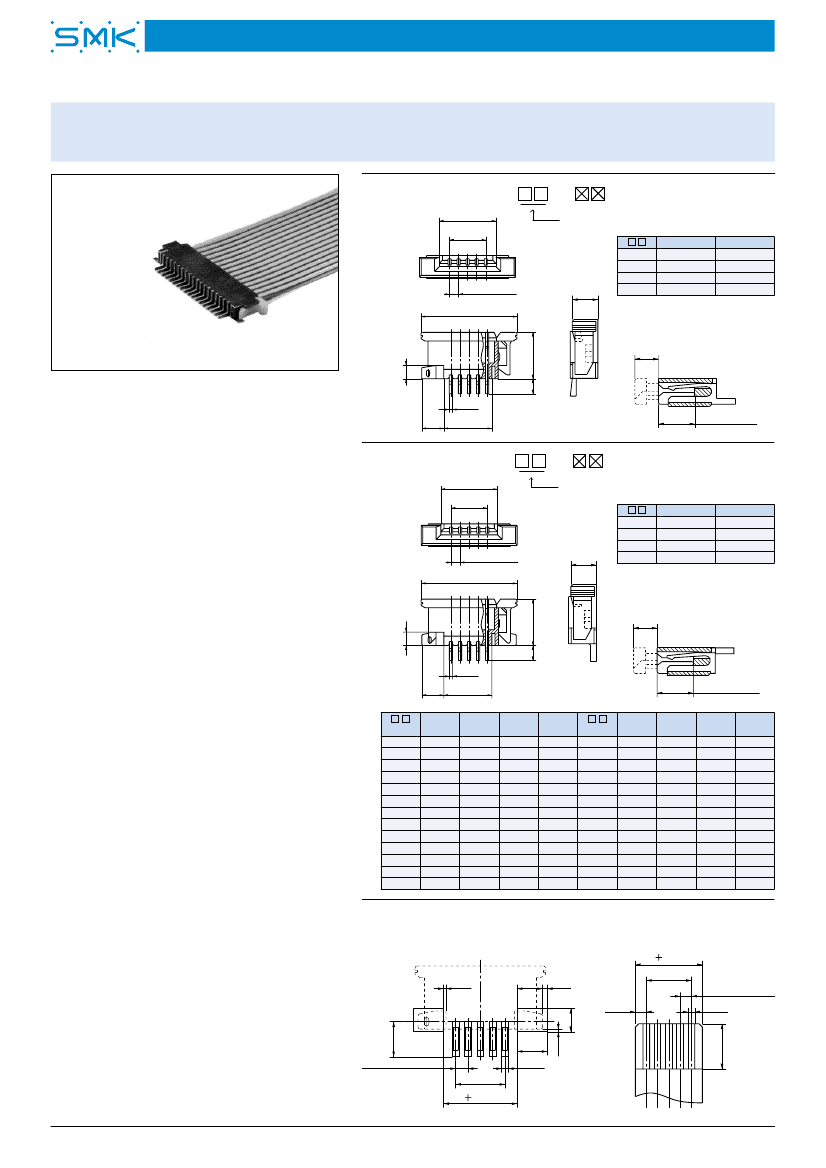

FPC Connector

FP-10

SU

SL

Series

1.0mm Spacing (SMT)

CFP05

B

A

q

SU Series

-02

（Upper

Contact）

××

01

02

11

12

No. of Pins 極数

Hold Down Packing Style

With

Without

With

Without

Embossed Taping

Pack in Bulk

1.0(Spacing)

C

2.4

1.5

s

Features

1. The FPC connectors in this series apply to the

1.0mm spacing SMT.

2. Of the ZIF structure.

3. The contact positions of the connectors are

classified into upper and lower types.

4. Supplied in emboss-tape packaging for

automatic mounting.

0.3

2.4

D

1.7

5.2

(2.0)

3.4

(Inserted size)

q

SL Series

CFP15

B

A

-01

（Lower

Contact）

××

01

02

11

12

No. of Pins 極数

Hold Down Packing Style

With

Without

With

Without

Embossed Taping

Pack in Bulk

s

Specifications

1. Rating : 0.5A 50V AC/DC

2. Contact Resistance : 30mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

1.0(Spacing)

C

2.4

5.2

(2.0)

Housing : Polyphenylene Sulfide

(Natural Color)94V-0

q

Cover : Polyphenylene Sulfide

(Natural Color)94V-0

q

Contact : Phosphor Bronze Tin-lead Plating

q

Frame : Phosphor Bronze Tin-lead Plating

q

0.3

2.4

D

3.4

(Inserted size)

No. of Pins

4

5

6

7

8

9

10

11

12

13

14

15

16

A

03.0

04.0

05.0

06.0

07.0

08.0

09.0

10.0

11.0

12.0

13.0

14.0

15.0

B

05.1

06.1

07.1

08.1

09.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

C

09.7

10.7

11.7

12.7

13.7

14.7

15.7

16.7

17.7

18.7

19.7

20.7

21.7

1.7

s

Material and Plating

1.5

D

04.5

05.5

06.5

07.5

08.5

09.5

10.5

11.5

12.5

13.5

14.5

15.5

16.5

No. of Pins

17

18

19

20

21

22

23

24

25

26

28

29

30

A

16.0

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

27.0

28.0

29.0

B

18.1

19.1

20.1

21.1

22.1

23.1

24.1

25.1

26.1

27.1

29.1

30.1

31.1

C

22.7

23.7

24.7

25.7

26.7

27.7

28.7

29.7

30.7

31.7

33.7

34.7

35.7

D

17.5

18.5

19.5

20.5

21.5

22.5

23.5

24.5

25.5

26.5

28.5

29.5

30.5

■ 特長

1. 1.0mmピッチのSMT対応FPCコネクタです。

2. ZIF構造を採用しています。

3. 接触部の½½が上側と下側の2種あります。

4. 自動マウンタ対応でエンボステーピング方式に

よる供給です。

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

AC／DC 50V 0.5A

30mΩ以下

DC500V 1000MΩ以上

AC500V 1分間

−25℃∼＋70℃

■ PC Board Dimension

取付基板参考図

■ Applicable FPC Dimension

適合FPC参考寸法 (t : 0.3)

(A 2)

±

0.1

0.2

2.4

0.5

1.0

±

0.15

A

±

0.05

1.0

±

0.05

(Spacing)

0.6

– 0.05

(Contact : Copper foil)

+ 0.1

3.0

■ 材質・表面処理

q

ハウジング

カバー

q

コンタクト

q

フレーム

q

ポリフェニレンサルファイド

原色 94V-0

ポリフェニレンサルファイド

原色 94V-0

リン青銅半田めっき

2.6

0.5

A

±

0.05

(D 0.6)

+0.1

0

+0.1

0

0.25

2

(Spacing)1.0

±

0.15

4
