YTD423
IHDLC2
ISDN BRI controller with B-ch HDLC controllers

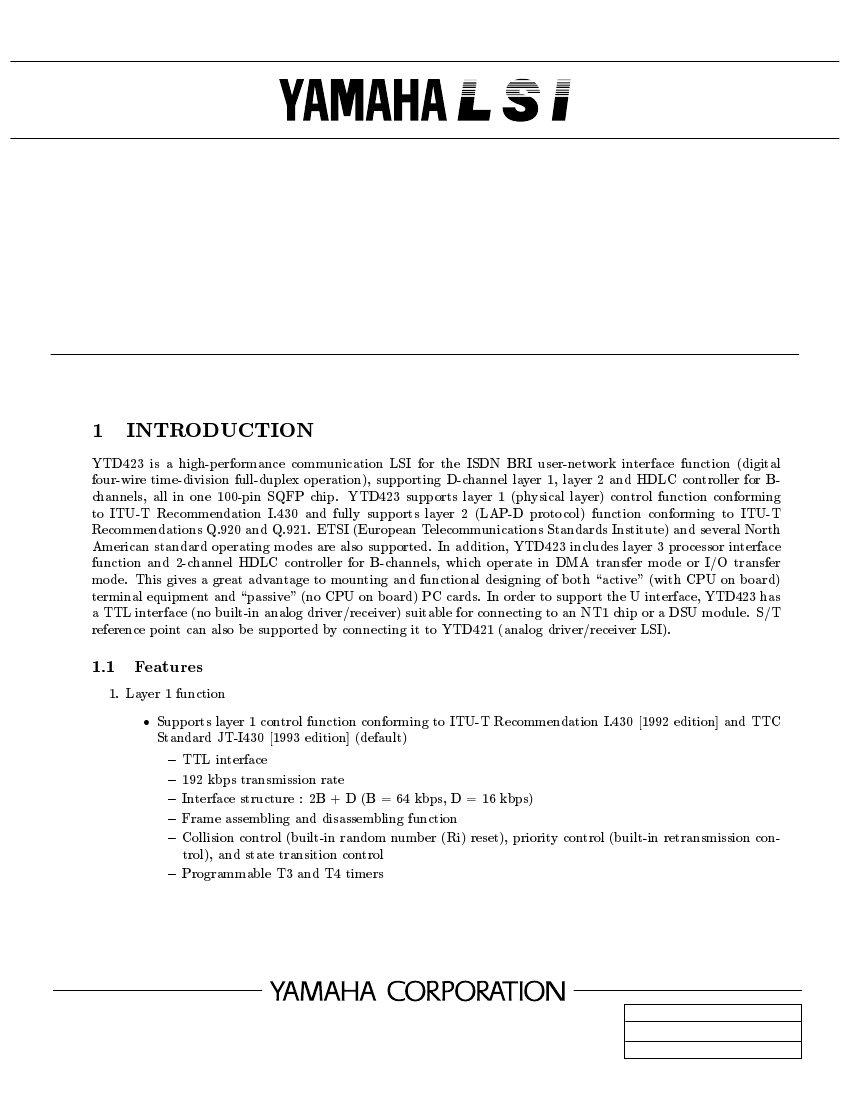

1 INTRODUCTION
YTD423 is a high-performance communication LSI for the ISDN BRI user-network interface function (digital
four-wire time-division full-duplex operation), supporting D-channel layer 1, layer 2 and HDLC controller for B-
channels, all in one 100-pin SQFP chip. YTD423 supports layer 1 (physical layer) control function conforming
to ITU-T Recommendation I.430 and fully supports layer 2 (LAP-D protocol) function conforming to ITU-T
Recommendations Q.920 and Q.921. ETSI (European Telecommunications Standards Institute) and several North
American standard operating modes are also supported. In addition, YTD423 includes layer 3 processor interface
function and 2-channel HDLC controller for B-channels, which operate in DMA transfer mode or I/O transfer
mode. This gives a great advantage to mounting and functional designing of both \active" (with CPU on board)
terminal equipment and \passive" (no CPU on board) PC cards. In order to support the U interface, YTD423 has
a TTL interface (no built-in analog driver/receiver) suitable for connecting to an NT1 chip or a DSU module. S/T
reference point can also be supported by connecting it to YTD421 (analog driver/receiver LSI).
1.1
Features
1. Layer 1 function
Supports layer 1 control function conforming to ITU-T Recommendation I.430 [1992 edition] and TTC
Standard JT-I430 [1993 edition] (default)
{
TTL interface
{
192 kbps transmission rate
{
Interface structure : 2B + D (B = 64 kbps, D = 16 kbps)
{
Frame assembling and disassembling function
{
Collision control (built-in random number (Ri) reset), priority control (built-in retransmission con-
trol), and state transition control
{
Programmable T3 and T4 timers
YTD423D CATALOG
CATALOG No.:4TD423D2
1999.2
Internal clock mode: Inputs/outputs the B-channel data with 64 k, 56 k or 32 kHz internal clock
{
External clock mode (PCM Highway mode): Inputs/outputs the B channel data with a 128 kHz to
2048 kHz external clock
B channel selection function
{
Internal clock mode: Selects/switches B channel I/O pins
{
External clock mode (PCM Highway mode): Selects/switches B channel time slots
Multiframing capability
Abundant Test functions (for testing and maintenance)
{
Three kinds of loop-back modes (Loop-back 1 to 3)
{
INFO signals output for testing
{
Test pulse output for pulse shape evaluation
INFO1 transmission and INFO4 reception monitor pins
SLEEP monitor pin
I.430 transmission frame phase adjustment function
2. Layer 2 function
Conforms to ITU-T Recommendation Q.920 and Q.921 [1992 edition] and TTC Standard JT-Q920 and
JT-Q921 [1993 edition] (default)
{
HDLC frame control (Flag control, FCS generation/checking, automatic zero insertion/deletion,
abort pattern transmission/detection, etc.)
{
LAP-D status control (sequence control,
ow control, SAPI control)
{
Built-in timer for time-out check

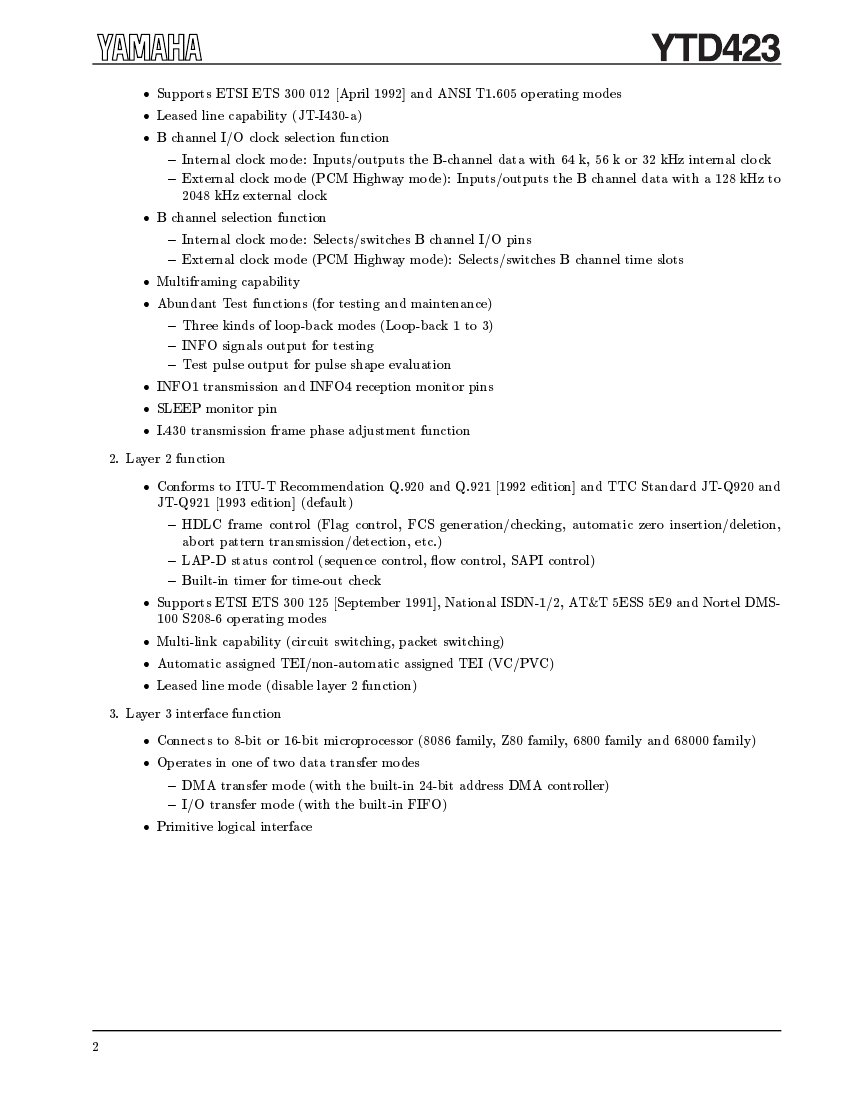

Supports ETSI ETS 300 125 [September 1991], National ISDN-1/2, AT&T 5ESS 5E9 and Nortel DMS-
100 S208-6 operating modes
Multi-link capability (circuit switching, packet switching)
Automatic assigned TEI/non-automatic assigned TEI (VC/PVC)
Leased line mode (disable layer 2 function)
3. Layer 3 interface function
Connects to 8-bit or 16-bit microprocessor (8086 family, Z80 family, 6800 family and 68000 family)
Operates in one of two data transfer modes
{
DMA transfer mode (with the built-in 24-bit address DMA controller)
{
I/O transfer mode (with the built-in FIFO)
Primitive logical interface
{
Supports ETSI ETS 300 012 [April 1992] and ANSI T1.605 operating modes
Leased line capability (JT-I430-a)
B channel I/O clock selection function
2

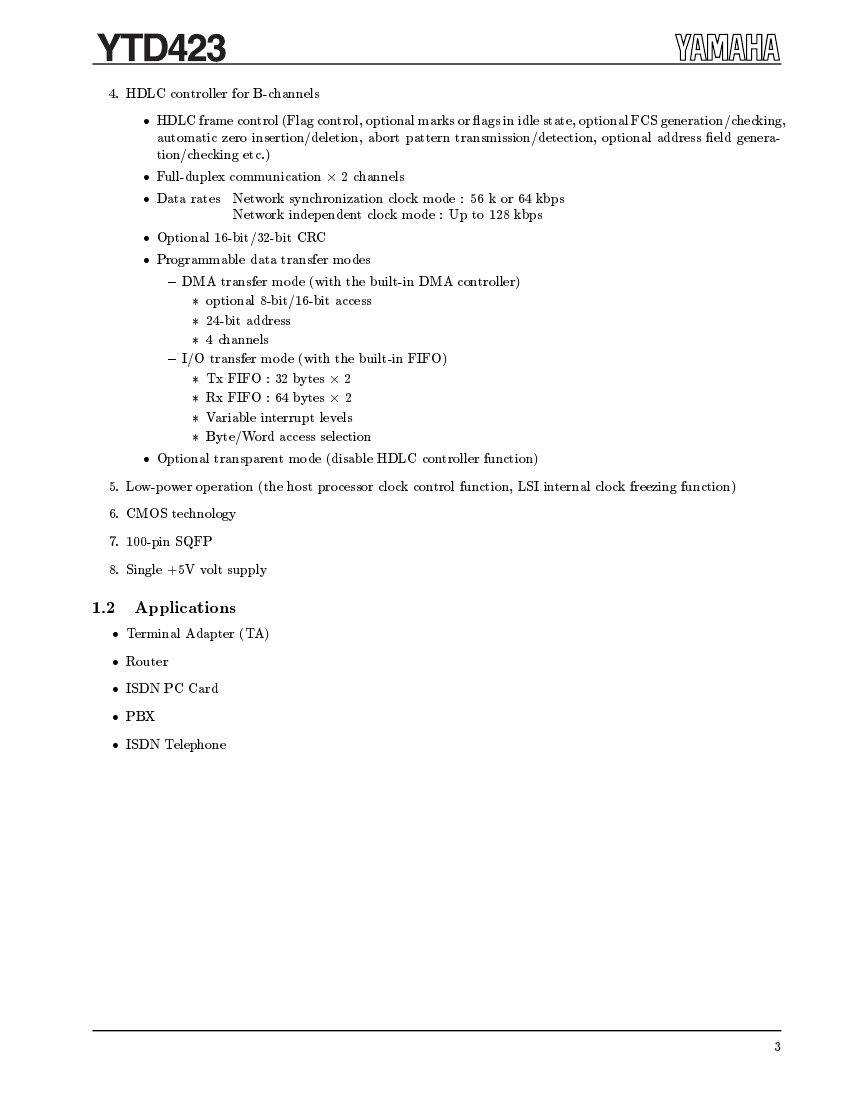

4. HDLC controller for B-channels
HDLC frame control (Flag control, optional marks or
ags in idle state, optional FCS generation/checking,
automatic zero insertion/deletion, abort pattern transmission/detection, optional address
eld genera-
tion/checking etc.)
Full-duplex communication
2
2 channels
Data rates Network synchronization clock mode : 56 k or 64 kbps
Network independent clock mode : Up to 128 kbps
Optional 16-bit/32-bit CRC
Programmable data transfer modes
{
DMA transfer mode (with the built-in DMA controller)
3
optional 8-bit/16-bit access
3
24-bit address
3
4 channels
{
I/O transfer mode (with the built-in FIFO)
3
Tx FIFO : 32 bytes
2
2
3
Rx FIFO : 64 bytes
2
2
3
Variable interrupt levels
3
Byte/Word access selection
Optional transparent mode (disable HDLC controller function)
5. Low-power operation (the host processor clock control function, LSI internal clock freezing function)
6. CMOS technology
7. 100-pin SQFP
8. Single +5V volt supply
1.2
Applications
Terminal Adapter (TA)
Router
ISDN PC Card
PBX
ISDN Telephone
3
2 BLOCK DIAGRAM
2.1
User Network Interface Block Diagram
YTD423 is the most-suited LSI for terminal equipment such as terminal adapters and ISDN telephones and for PHS
base stations. YTD423 contains layer 1 and layer 2 functions as well as the HDLC controller and DMA controller
for the B channel. Because of this, terminal equipment can be optimally con
gured by adding few circuits such as
the layer 3 control processor and analog driver/receiver.

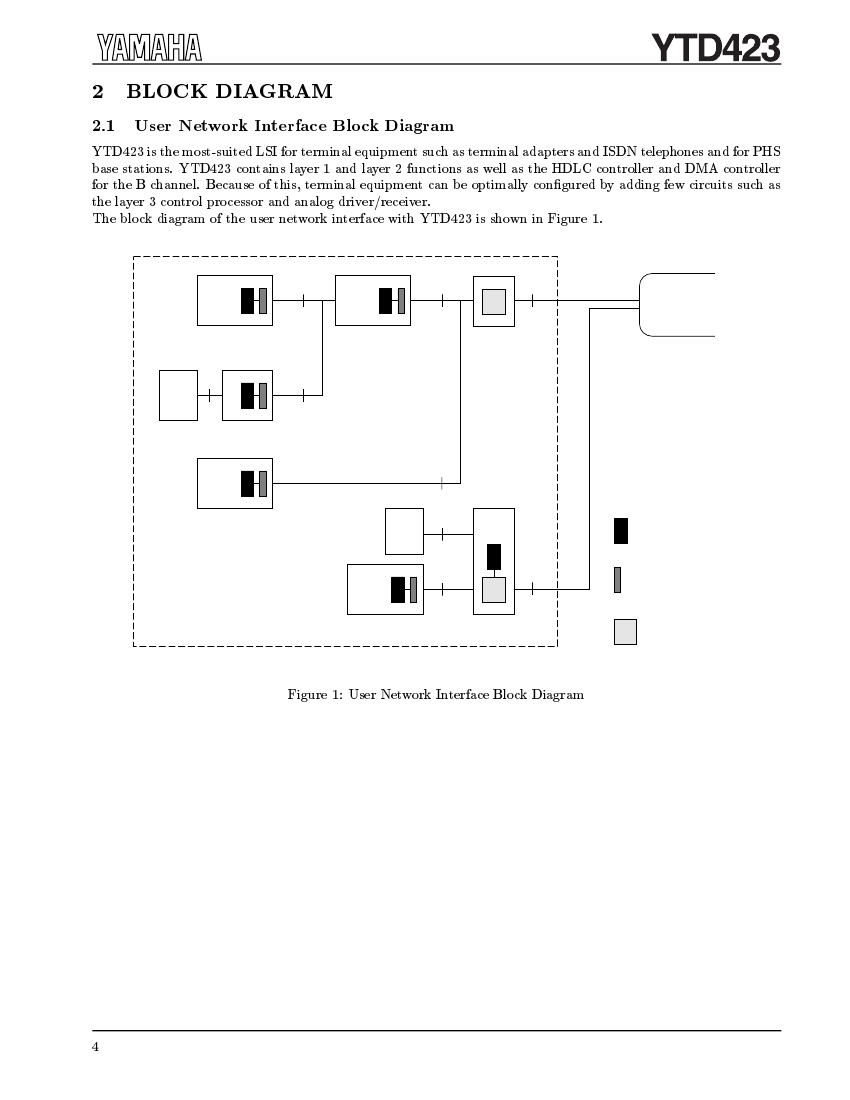

The block diagram of the user network interface with YTD423 is shown in Figure 1.
S
T
U
ISDN
Network
TE1
(ISDN terminal)
NT2
(PBX etc.)
NT1
(DSU)
R
TE2
S
(Non-ISDN terminal) TA(Terminal Adapter)
S/T
TE1
TE2
R
YTD423
U
YTD421
(
Driver / Receiver
)
YTD428
(DSU)
S/T
TE1
TA with built-in DSU
User's premises
Figure 1: User Network Interface Block Diagram
4
2.2
YTD423 Peripheral LSI Interface Block Diagram
B1 , B2
HRD
LRD
HTD
LTD
YTD421
or
YTD423
A0 ~
A23
D0 ~
D15
CS
CS
Memory
A0 ~
A23
D0 ~
D7
R/W
CS
Peripheral LSI
A0 ~
A23
D0 ~
D15
YTD428

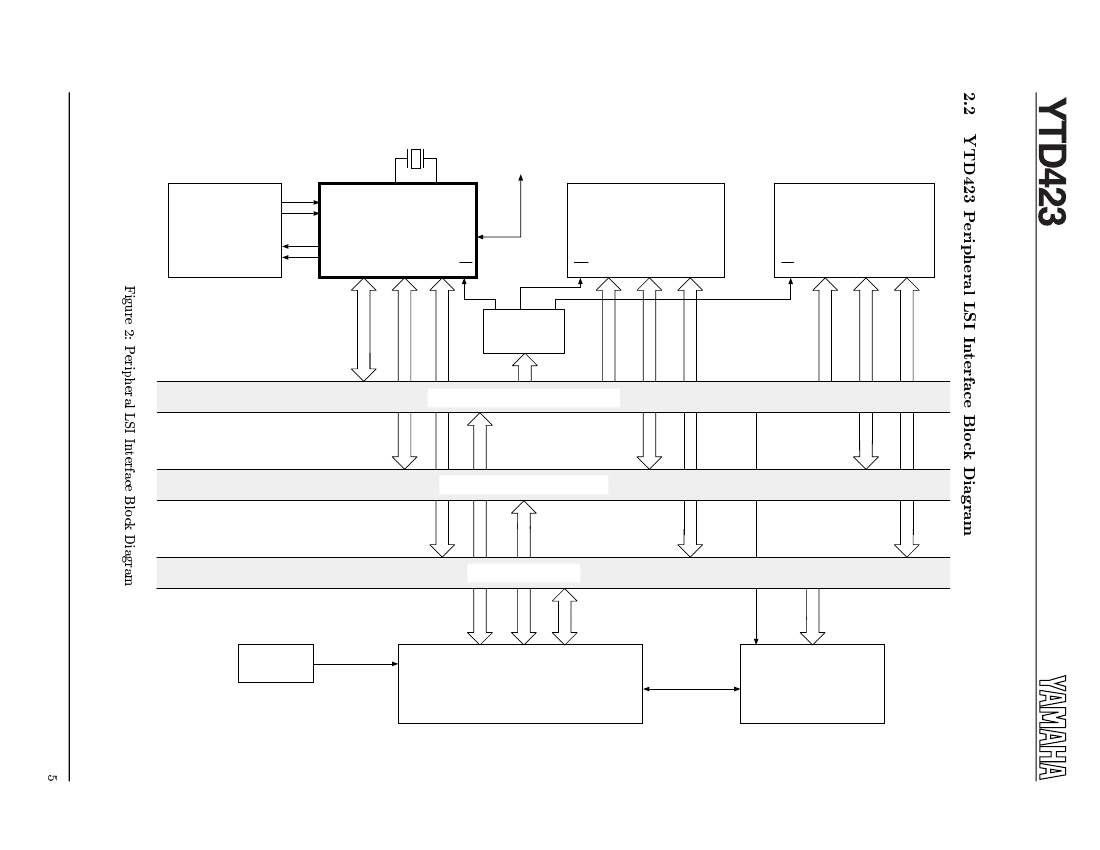

Figure 2: Peripheral LSI Interface Block Diagram
CLK
Decoder
System address bus (A0 ~ A23)
System data bus (D0 ~ D15)
Control signal bus
A0 ~
A23
D0 ~
D15
MPU
(8086 , 68000 etc.)
System interrupt
controller
5
