M22-078050L3005 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M22-078050L3005

M22-078050L3005: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size692KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M22-078050L3005 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

M22-078050L3005 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

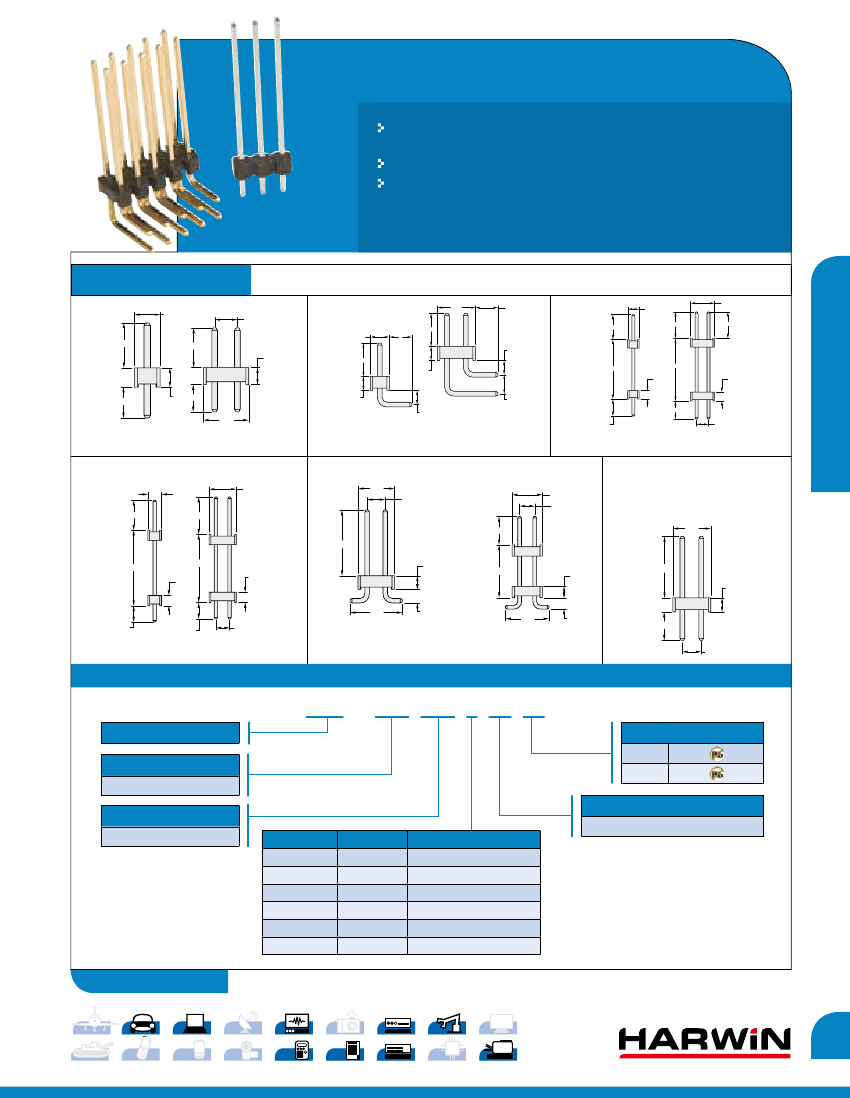

M22 Connectors

Horizontal sMT Male Connectors

Harwin offers the ultimate flexibility ’Standard Variant Pin Headers‘.

Use the order code below to create application-specific connectors.

Contact technical@harwin.com for further information.

Suitable for use with female connectors on pages 87 to 90.

TerMinaTiOn sTYles

4.00

2.00

4.40

2.00

J SERIES

1.50

H SERIES

V SERIES

1.50

E SERIES

2.00

1.50

F SERIES

W SERIES

4.00

1.50

3.00

2.00

Pin section is 0.5mm sq, PCB mounting hole is Ø 0.8mm

Pin section is 0.5mm sq, PCB mounting hole is Ø 0.8mm.

Max B dimension is 6.00mm

Pin section is 0.5mm sq, PCB mounting hole is Ø 0.8mm

eXTenDeD (2.4mm tail)

2.00

4.00

S SERIES

4.00

2.00

surFaCe MOunT

T SERIES

4.00

2.00

EXAMPLE:

M22-065030w0546

–

2mm Pitch vertical double row pin

header with 5 pins per row.

dimension is 6.5 and

dimension

is 3.0, in tin finish.

4.00

K SERIES

1.50

L SERIES

1.50

6.50

1.50

5.75

2.40

2.00

1.50

5.75

1.50

3.00

Pin section is 0.5mm sq, PCB mounting hole is Ø 0.8mm

B dimension is 0.0mm,

Pin section is 0.5mm sq,

PCB pad layout see page 97

Pin section is 0.5mm sq,

PCB pad layout see page 97

2.00

HOW TO OrDer

M22 – XXX XXX X XX XX

series code

diMension a

Eg. 7.8mm = 078

Finish

Gold

Tin

diMension B

Eg. 5.0mm = 050

single row

–

no. oF ways per row

douBle row

02 to 50

Vertical

Horizontal

Extended

Extended (2.4mm tail)

Surface Mount

Extended Surface Mount

All dimensions in mm.

www.harwin.com

2mm (.080") PiTCH

VerTiCal

HOrizOnTal

eXTenDeD

4.00
