Preview

5304-067: DescriptionRF Connector Adapter, N-N, Panel Mount, Male-Male, ROHS COMPLIANT; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

5304-067 Overview

RF Connector Adapter, N-N, Panel Mount, Male-Male, ROHS COMPLIANT

5304-067 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Objectid	8008263091
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	227900858
Adapter type	N-N
Other features	STANDARD: MIL-STD-348
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE-MALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	IN
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.07

Preview

Download Datasheet

View All

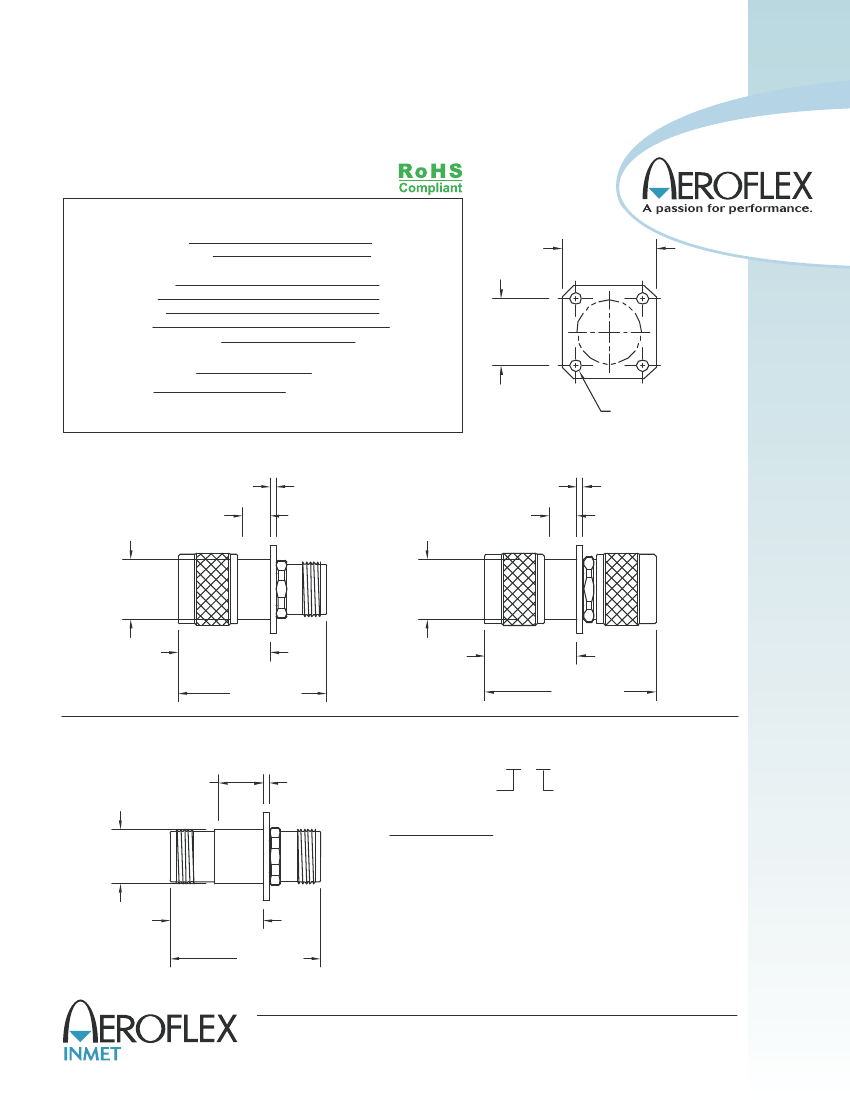

ADAPTERS, IN-SERIES

Type N , up to 18 GHz, Flange Mount

SPECIFICATIONS:

Models: 5303, 5304, 5305

Electrical:

Frequency Range

Standard Freq. Values

VSWR

DC - 4 GHz

4 - 8 GHz

8 - 18 GHz

Impedance

Operating Temp Range

DC - 18 GHz

6* & 18 GHz

1.04:1 Max.

1.07:1 Max.

1. 2:1 Max.

1

50 Ohms

-65°C to +125°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

1.00 [25.4]

SQ.

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

.718 [18.24]

TYP

.

Conductors

*For DC - 6 GHz Units add -067 to the Model Number

4X Ø.125[3.18]

THRU

4-HOLE FLANGE

DETAIL - TYP

.

Model Number:

5305

Type N Male / Type N Female

.065 [1.65]

Model Number:

5304

Type N Male / Type N Male

.065 [1.65]

5/16 Max.

Panel Thickness

5/16 Max.

Panel Thickness

Ø.69

[17.5]

Ø.69

[17.5]

1.04 ±.02

[26.4 ±0.5]

1.67 ±.05

[42.4 ±1.3]

Model Number:

5303

Type N Female / Type N Female

1.04 ±.02

[26.4 ±0.5]

1.93 ±.06

[49.0 ±1.5]

1/2 Max.

Panel Thickness

HOW TO ORDER:

Model Number:

530X-YYY

.065 [1.65]

Base Number

Freq. Range

= DC - 18 GHz

067 = DC - 6 GHz

Ordering Examples:

Ø.62

[15.8]

Model Number:

5304

DC - 18 GHz; Male/Male

Model Number:

5303-067

DC - 6 GHz; Fem/Fem

1.05 ±.02

[26.7 ±0.5]

1.70 ±.05

[43.2 ±1.3]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

5305: REV A

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex-.com

5304-067 Related Products

	5304-067	5305-067
Description	RF Connector Adapter, N-N, Panel Mount, Male-Male, ROHS COMPLIANT	RF Connector Adapter, N-N, Panel Mount, Male-Female, ROHS COMPLIANT
Maker	API Technologies	API Technologies
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compli
ECCN code	EAR99	EAR99
Adapter type	N-N	N-N
Other features	STANDARD: MIL-STD-348	STANDARD: MIL-STD-348
Characteristic impedance	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	MALE-MALE	MALE-FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	IN	IN
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
voltage standing wave ratio	1.07	1.07
