SMS-139-02-G-D datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SMS-139-02-G-D

Preview

SMS-139-02-G-D: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size931KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SMS-139-02-G-D Overview

Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT

SMS-139-02-G-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Samacsys Description	78 Position, Through-Hole Micro Socket, 0.050" x 0.100" Pitch
Other features	TIGER BUY
body width	0.22 inch
subject depth	0.335 inch
body length	1.95 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMS
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
Rated current (signal)	5.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.19 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	78
Evacuation force-minimum value	1.668 N

Preview

Download Datasheet

View All

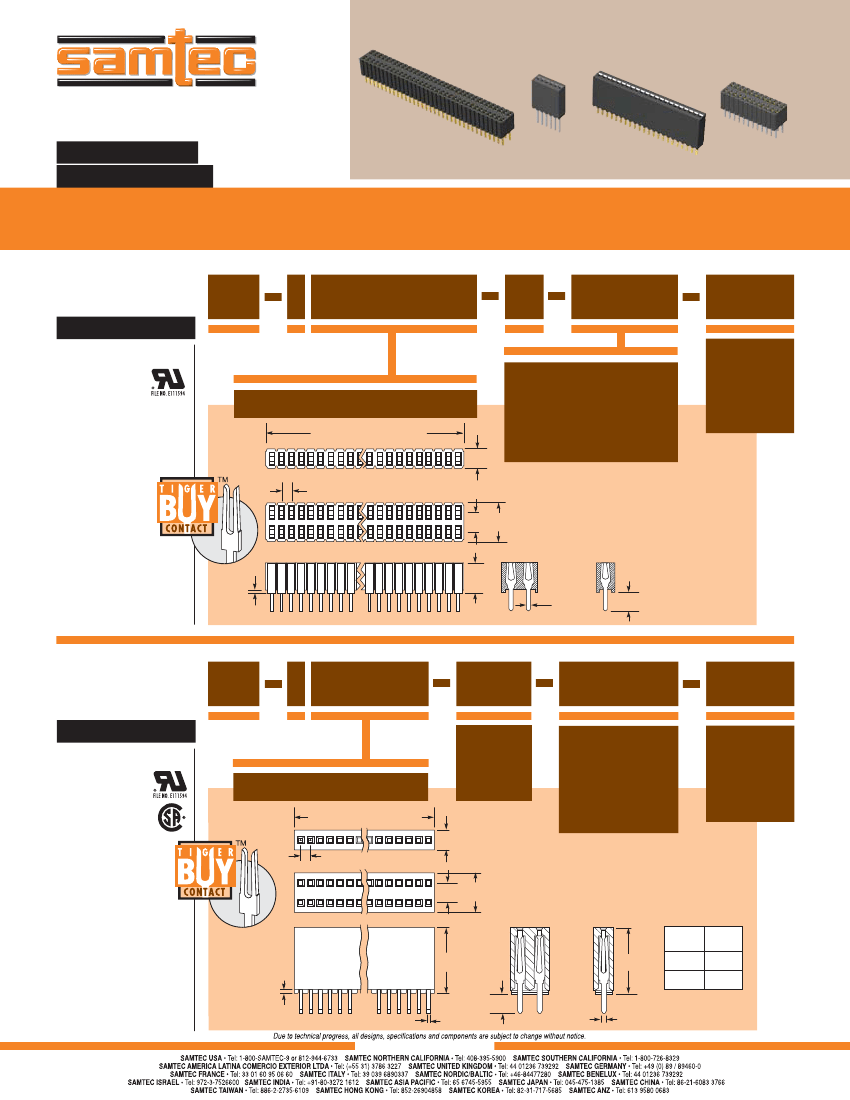

F-213

SMS–106–02–L–S

SLM–112–01–L–D

SLM–134–01–G–D

(1,27 mm) .050"

SLM, SMS SERIES

SMS–122–01–G–S

THROUGH-HOLE MICRO SOCKETS

Mates with:

HTMS, TMS, MTMS, DWM,

HDWM, FTR, HMTMS

SLM

1

NO. PINS

PER ROW

01

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SLM

Insulator Material:

Black Glass Filled

Polyester

Contact Material:

Phosphor Bronze

Current Rating:

1A per contact

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(2,03 mm) .080" to

(3,05 mm) .120"

Insertion Force:

(Single contact only)

8 oz (2,22 N) avg.

Withdrawal Force:

(Single contact only)

6 oz (1,67 N) avg.

RoHS Compliant:

Yes

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–S

–L

= Single

Row

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

01 thru 50

(1,27) .050 X No. of Positions

01

50

–D

= Double

Row

–G

(2,54)

.100

= 20µ" (0,51 µm) Gold on contact,

Gold ﬂash on balance

Note:

Other Gold plating options available.

Contact Samtec.

100

(1,27)

.050

TYP

02

(2,54) (5,08)

.100 .200

99

01

(0,25)

.010

(4,57)

.180

Processing:

Lead-Free Solderable:

Wave Only

(0,51) (0,41)

.020 x .016

TYP

(2,92)

.115

Mates with:

HTMS, TMS, MTMS,

DWM, HDWM, FTR,

TML, ZML, HMTMS

SMS

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

50

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SMS

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

1A per contact

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(3,43 mm) .135" to (6,35 mm)

.250" with (0,38 mm) .015" wipe

Insertion Force:

(Single contact only)

8 oz (2,22 N) avg.

Withdrawal Force:

(Single contact only)

6 oz (1,67 N) avg.

RoHS Compliant:

Yes

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

–S

= Single

Row

01 thru 50

(1,27) .050 X No. of Positions

01

–G

= 10µ" (0,25 µm)

Gold

Note:

Other Gold plating

options available.

Contact Samtec.

–D

= Double

Row

(3,05)

.120

(1,27) .050 TYP

100

02

(2,54) (5,59)

.100 .220

99

01

(8,51)

.335

(8,51)

.335

LEAD

STYLE

–01

–02

A

(2,54)

.100

(4,83)

.190

Processing:

Lead-Free Solderable:

Yes

(0,51)

.020

A

(0,41) .016

(0,51) .020
