PLFC1060R-6R8D: DescriptionGeneral Purpose Inductor, 6.8uH, 30%, 1 Element, Nickel-zinc-Core, SMD,; CategoryPassive components inductor; File Size462KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

PLFC1060R-6R8D Overview

General Purpose Inductor, 6.8uH, 30%, 1 Element, Nickel-zinc-Core, SMD,

PLFC1060R-6R8D Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
core material	NICKEL-ZINC
DC Resistance	0.023 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

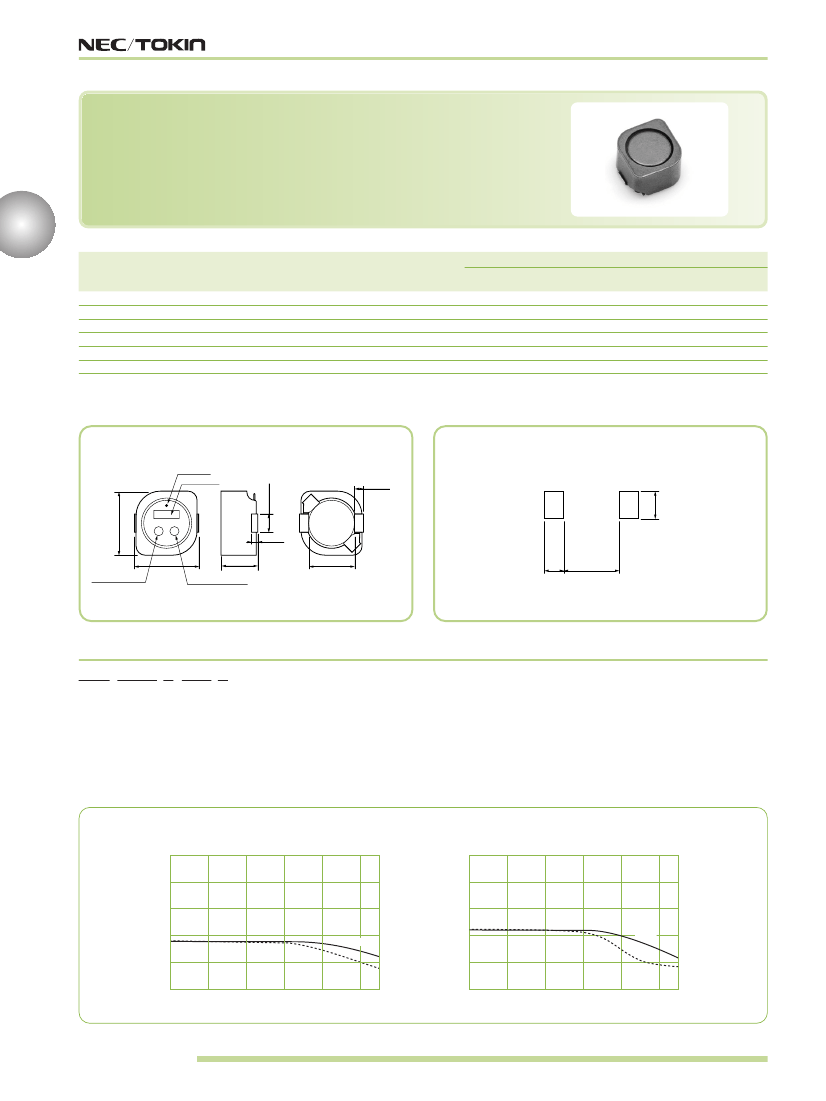

SMD-Type Inductors and Choke Coils

Leadless Power Inductors

PLFC 1060R-D Series

2

SMD-Type Inductors and Choke Coils

• Tape and Reel Dimensions (see page 119)

• Precautions (see page 124)

Model

Inductance

(µH) at 100kHz

DC resistance

(m ) max.

Irms*1

PLFC1060R-3R3D

PLFC1060R-4R7D

PLFC1060R-6R8D

PLFC1060R-8R2D

PLFC1060R-100D

PLFC1060R-120D

3.3±30%

4.7±30%

6.8±30%

8.2±30%

10±20%

12±20%

17

18

23

25

34

41

6.3

6.1

5.7

5.1

4.5

4.2

Rated current (A)

Isat

(Ref.)*2

at 20˚C

at 100˚C

9.9

8.1

8.9

7.5

7.1

6.1

6.2

5.4

4.5

5.0

4.2

*1. 40˚C rise typ. at Irms *2. Inductance drop 20% typ. at Isat

• Operating temperature range: –25 to +85˚C (Without self-temperature rise)

• Storage temperature range: –25 to +85˚C

Shape and Dimensions

Dot mark

3.0±0.5

Inductance

1.5±0.3

Recommended Land Pattern

10.5±0.5

1.0±0.3

Lot No.

(EIAJ.RC1001A)

10.5±0.5

6.0MAX

Manufacture week

7.5±0.5

2.5

7.0

[mm]

3.5

[mm]

Numbering System

PLFC

-

Series

Dimensions

Structure : R = Ring+Drum

Inductance

Core material

DC-Superposed Characteristics

PLFC1060R-3R3D

10

8

PLFC1060R-4R7D

Inductance ( H)

6

Inductance ( H)

6

4

20˚C

100˚C

2

4

100˚C

2

20˚C

0

2

4

6

8

10

0

2

4

6

8

10

Idc (A)

EMC GENERAL VOL.01

56

PLFC1060R-6R8D Related Products

	PLFC1060R-6R8D	PLFC1060R-8R2D	PLFC1060R-4R7D	PLFC1060R-3R3D
Description	General Purpose Inductor, 6.8uH, 30%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 8.2uH, 30%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 4.7uH, 30%, 1 Element, Nickel-zinc-Core, SMD,	General Purpose Inductor, 3.3uH, 30%, 1 Element, Nickel-zinc-Core, SMD,
Maker	TOKO, INC.	TOKO, INC.	TOKO, INC.	TOKO, INC.
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
core material	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC	NICKEL-ZINC
DC Resistance	0.023 Ω	0.025 Ω	0.018 Ω	0.017 Ω
Nominal inductance(L)	6.8 µH	8.2 µH	4.7 µH	3.3 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
surface mount	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	30%	30%	30%	30%
