LC866008ADIP64S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LC866008ADIP64S

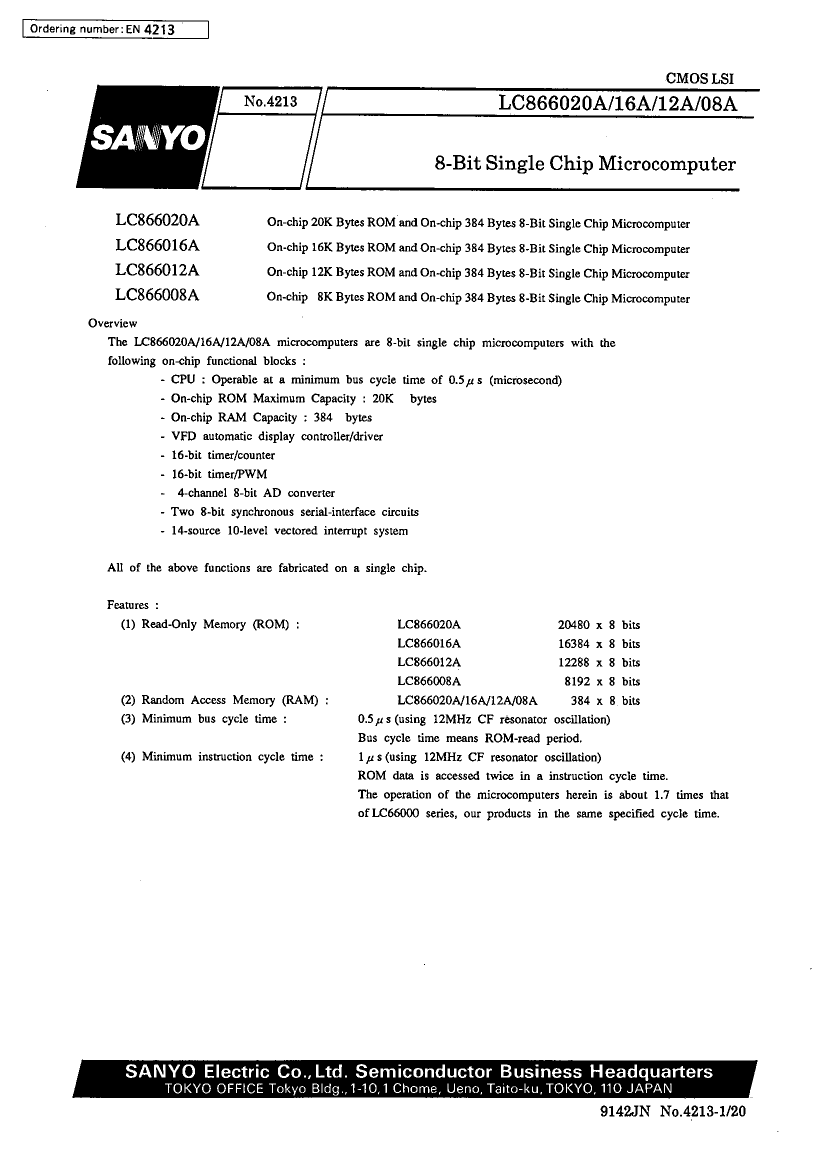

Preview

LC866008ADIP64S: DescriptionMicrocontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size372KB，20 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC866008ADIP64S Overview

Microcontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64

LC866008ADIP64S Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP,
Contacts	64
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	12.24 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T64
length	57.2 mm
Number of I/O lines	24
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

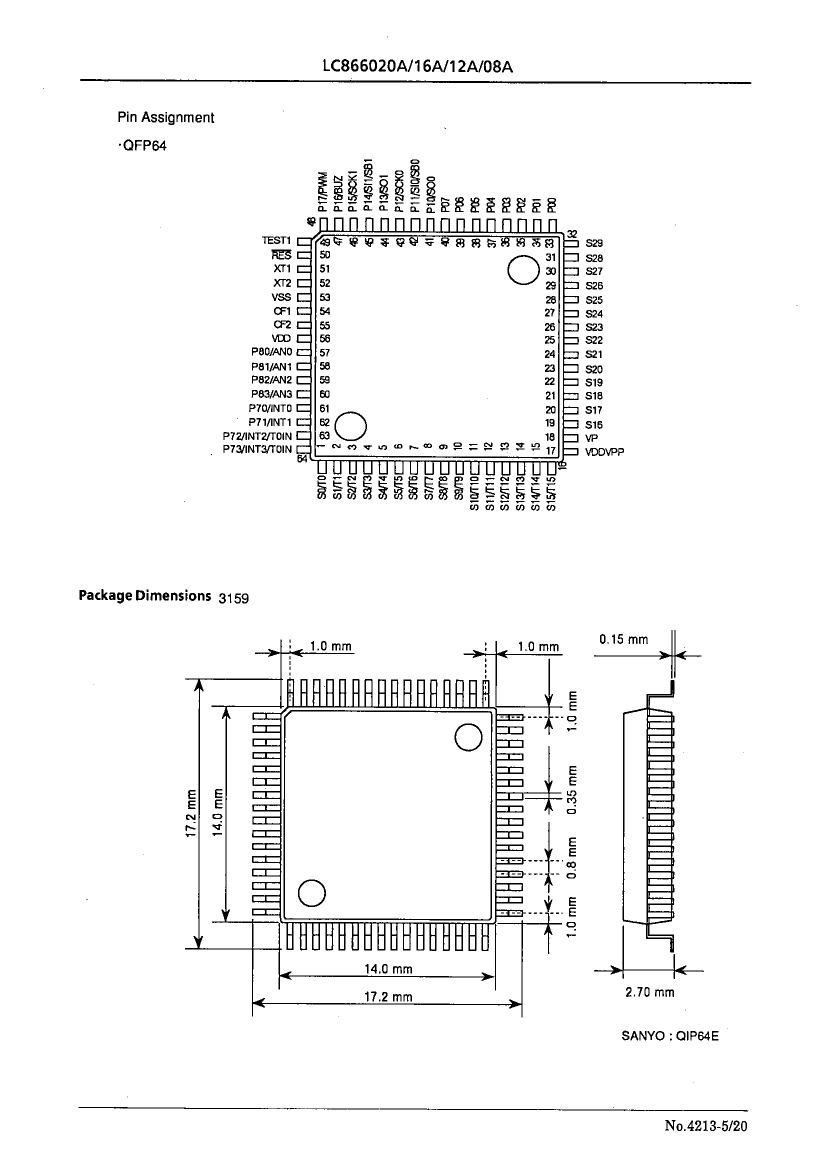

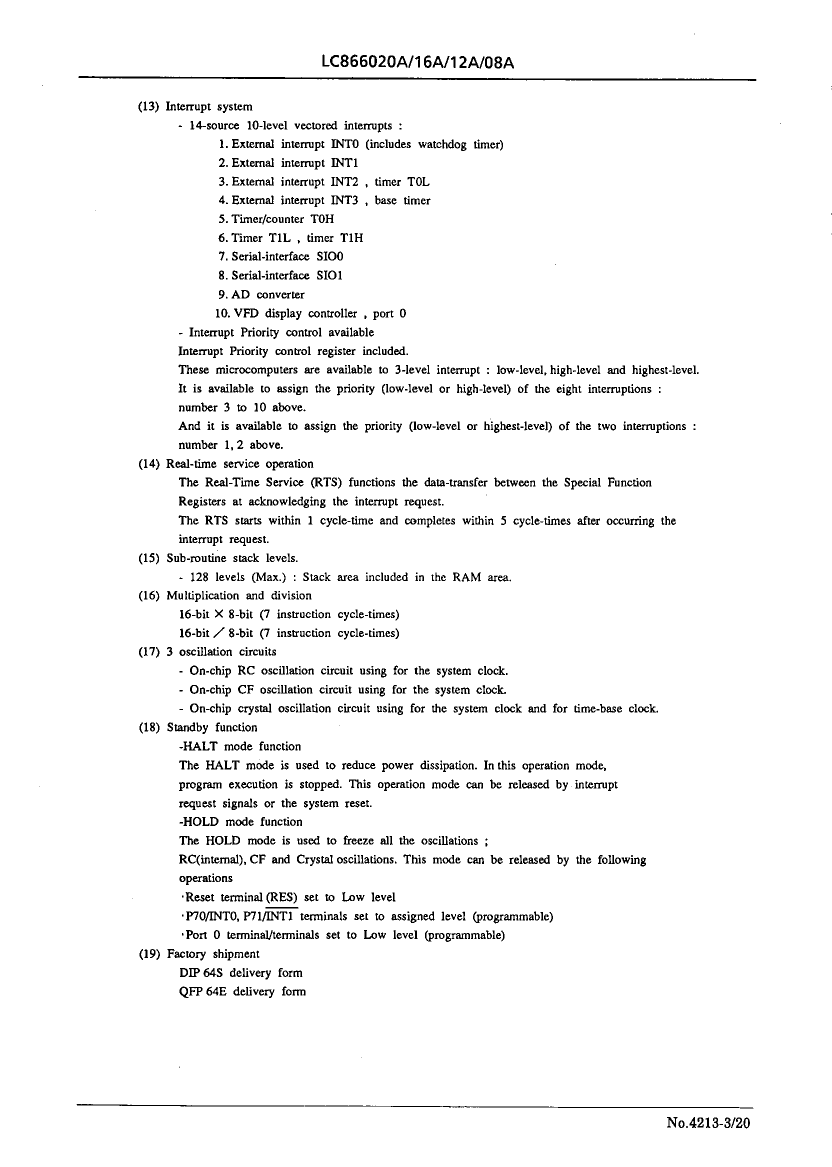

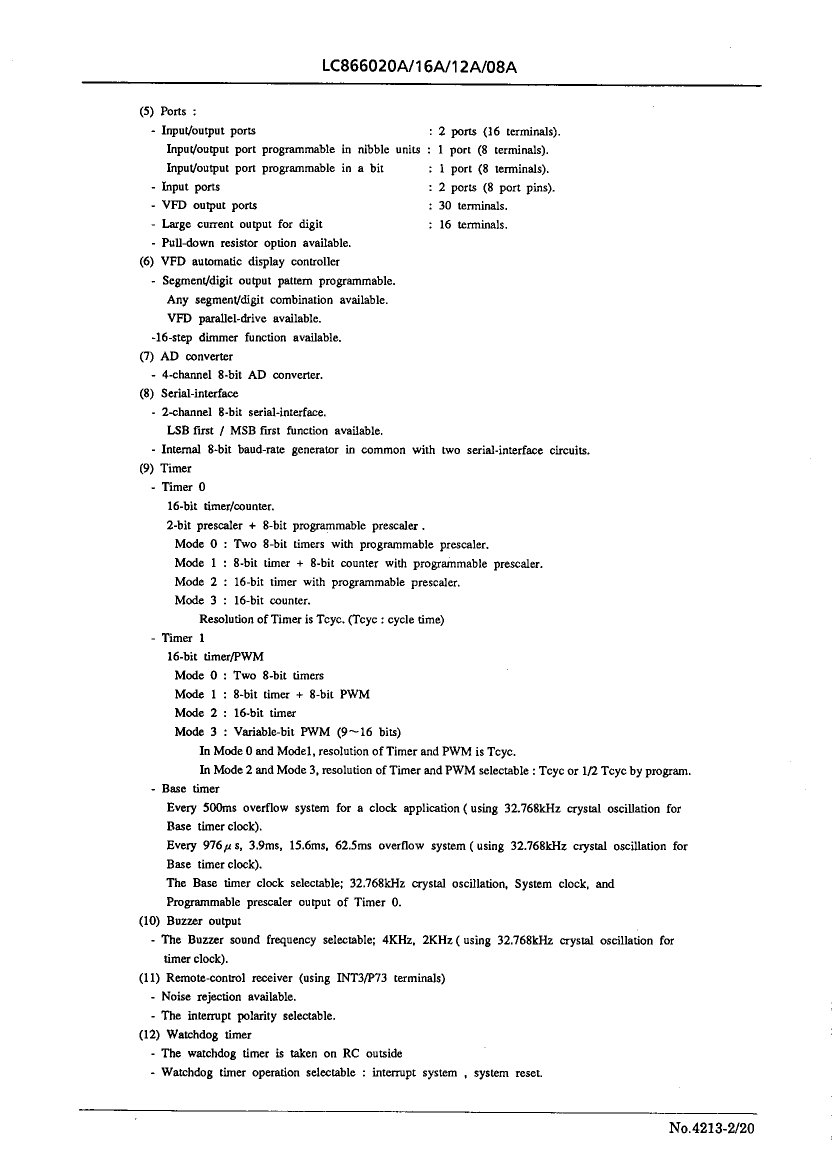

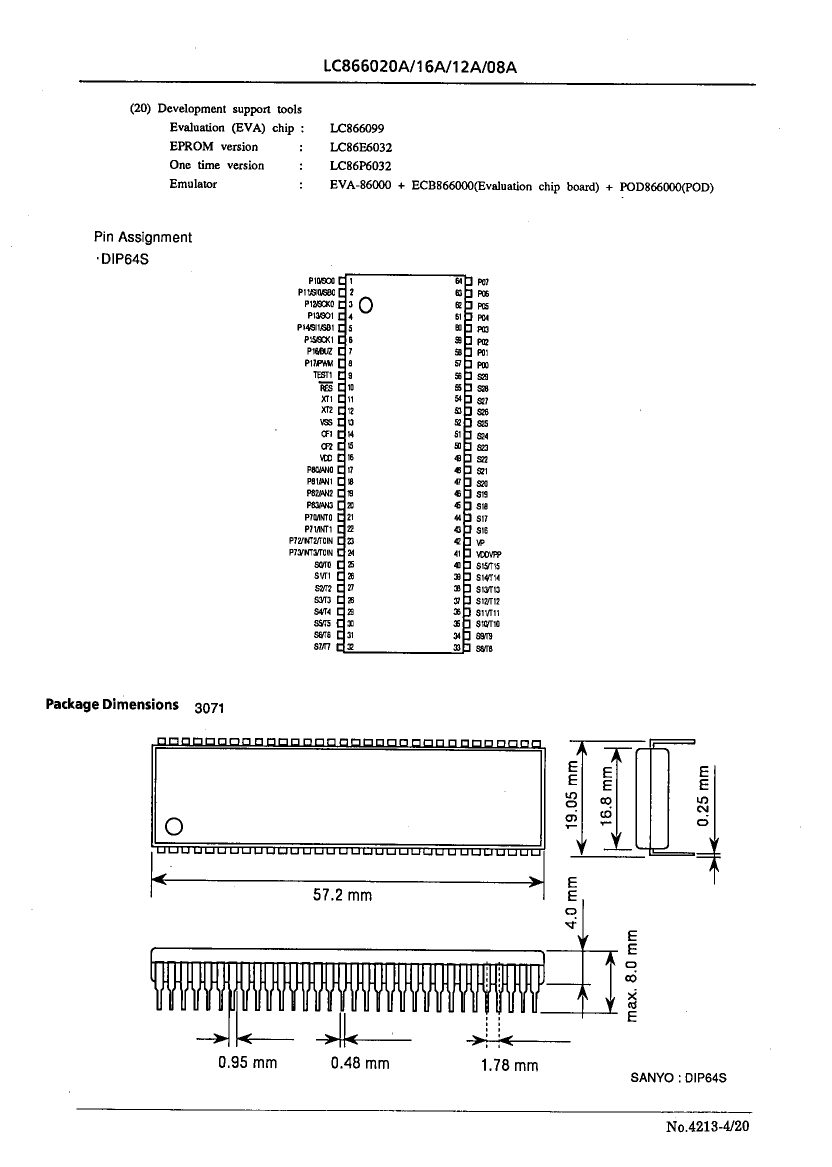

Preview

Download Datasheet

View All

LC866008ADIP64S Related Products

	LC866008ADIP64S	LC866020AQIP64E	LC866020ADIP64S	LC866012AQIP64E	LC866012ADIP64S	LC866016ADIP64S	LC866008AQIP64E	LC866016AQIP64E
Description	Microcontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP64, QFP-64	Microcontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP64, QFP-64	Microcontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 8-Bit, MROM, CMOS, PDIP64, SDIP-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP64, QFP-64	Microcontroller, 8-Bit, MROM, CMOS, PQFP64, QFP-64
Maker	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO	SANYO
Parts packaging code	DIP	QFP	DIP	QFP	DIP	DIP	QFP	QFP
package instruction	SDIP,	QFP,	SDIP,	QFP,	SDIP,	SDIP,	QFP,	QFP,
Contacts	64	64	64	64	64	64	64	64
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES
bit size	8	8	8	8	8	8	8	8
maximum clock frequency	12.24 MHz	12.24 MHz	12.24 MHz	12.24 MHz	12.24 MHz	12.24 MHz	12.24 MHz	12.24 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T64	S-PQFP-G64	R-PDIP-T64	S-PQFP-G64	R-PDIP-T64	R-PDIP-T64	S-PQFP-G64	S-PQFP-G64
length	57.2 mm	14 mm	57.2 mm	14 mm	57.2 mm	57.2 mm	14 mm	14 mm
Number of I/O lines	24	24	24	24	24	24	24	24
Number of terminals	64	64	64	64	64	64	64	64
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	QFP	SDIP	QFP	SDIP	SDIP	QFP	QFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	FLATPACK	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.778 mm	0.8 mm	1.778 mm	0.8 mm	1.778 mm	1.778 mm	0.8 mm	0.8 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD
width	19.05 mm	14 mm	19.05 mm	14 mm	19.05 mm	19.05 mm	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
